Ironside 3
The Ironside 3 is a three-axis traveling gantry engineered for panel processing and nested-based cabinet manufacturing. Cut woods — like MDF, particle board, laminates, plywood and melamine, as well as phenolics and plastics with speed and accuracy.

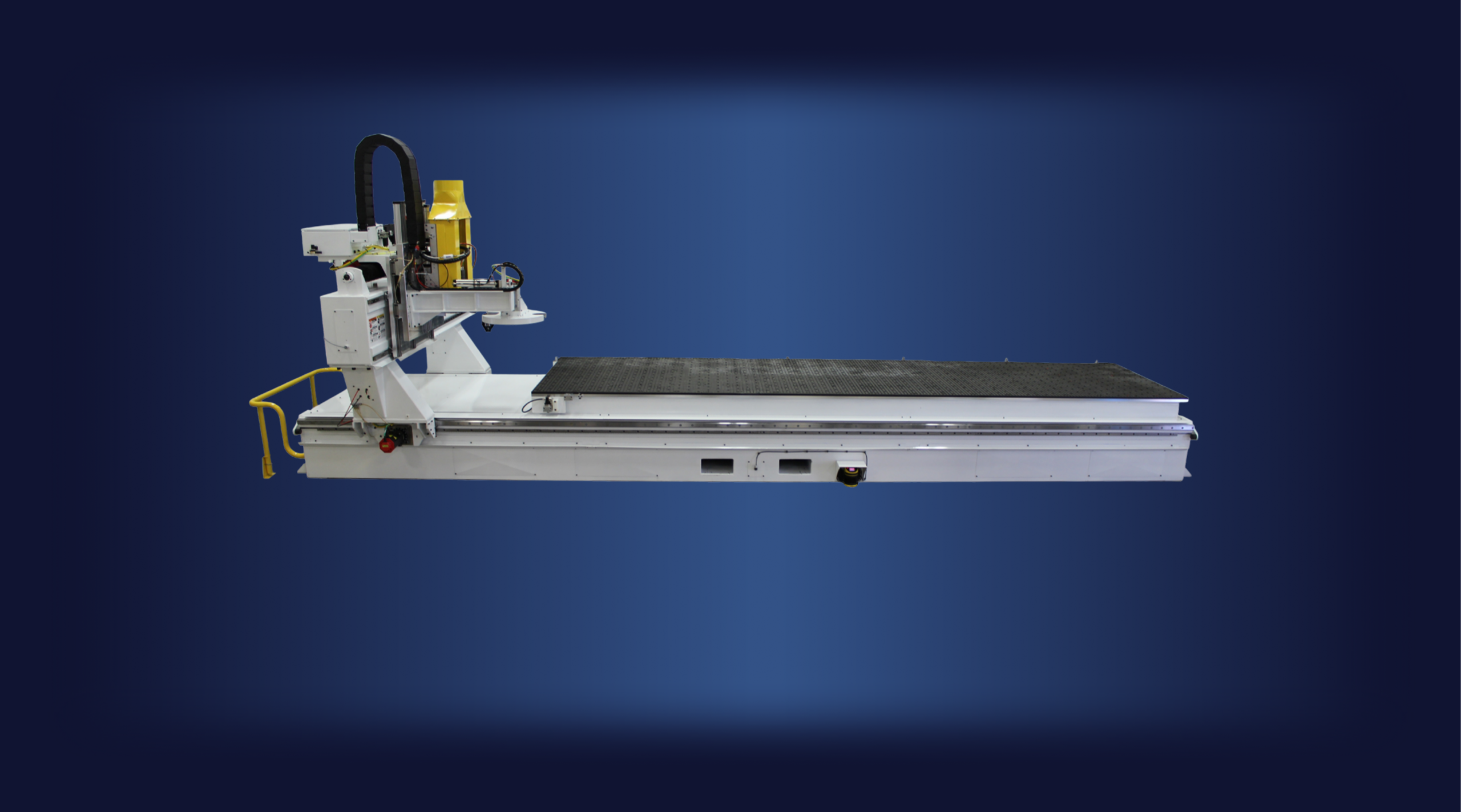

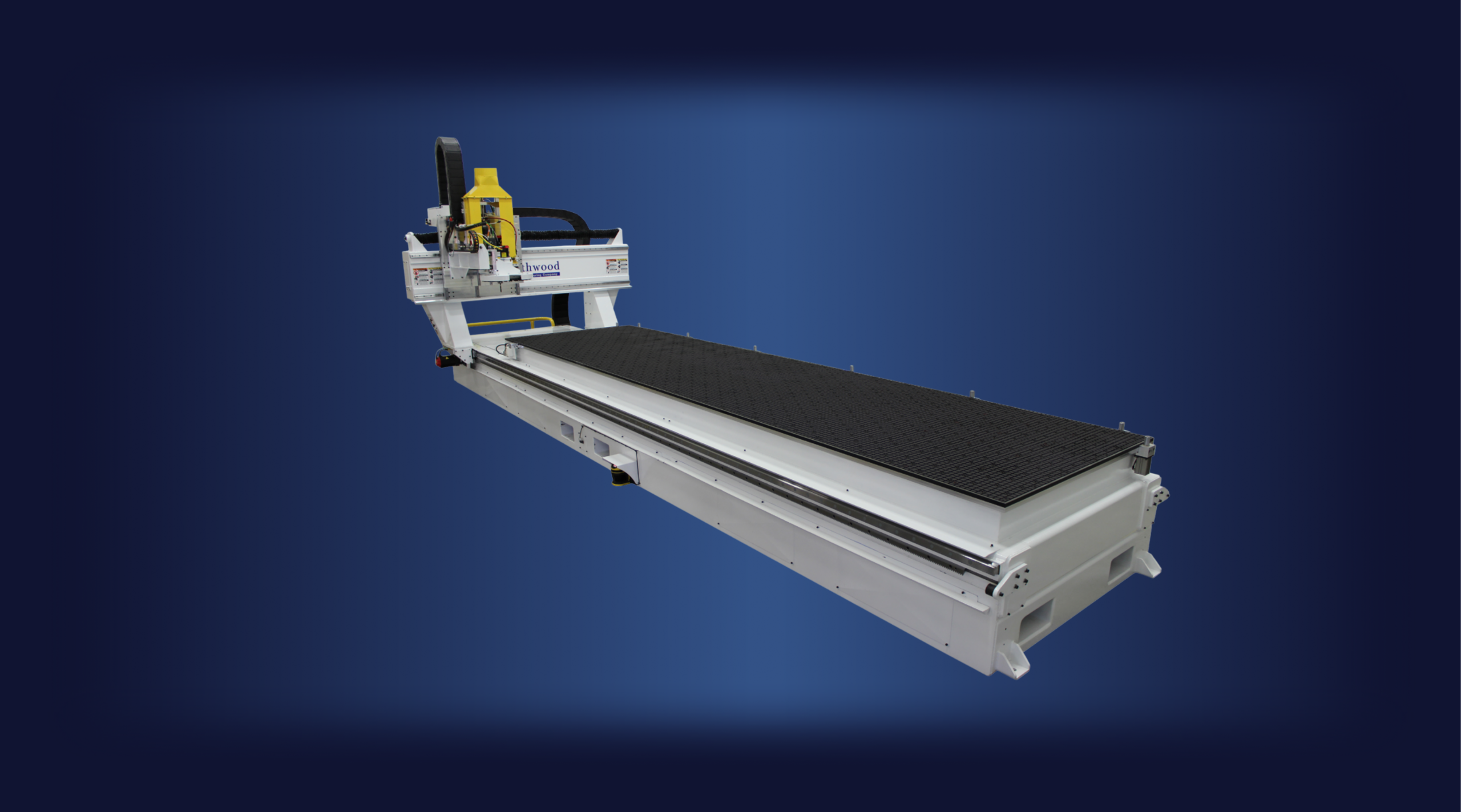

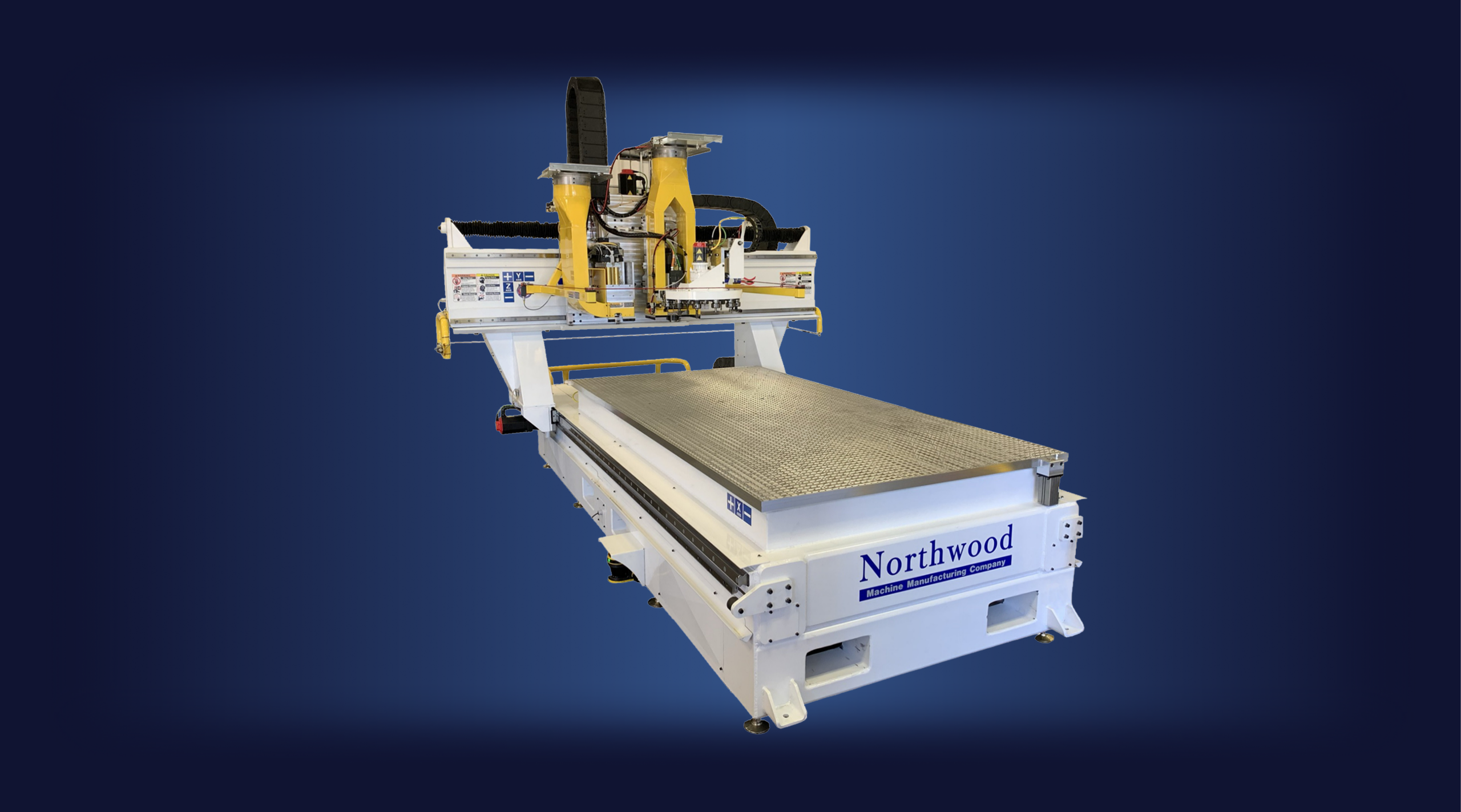

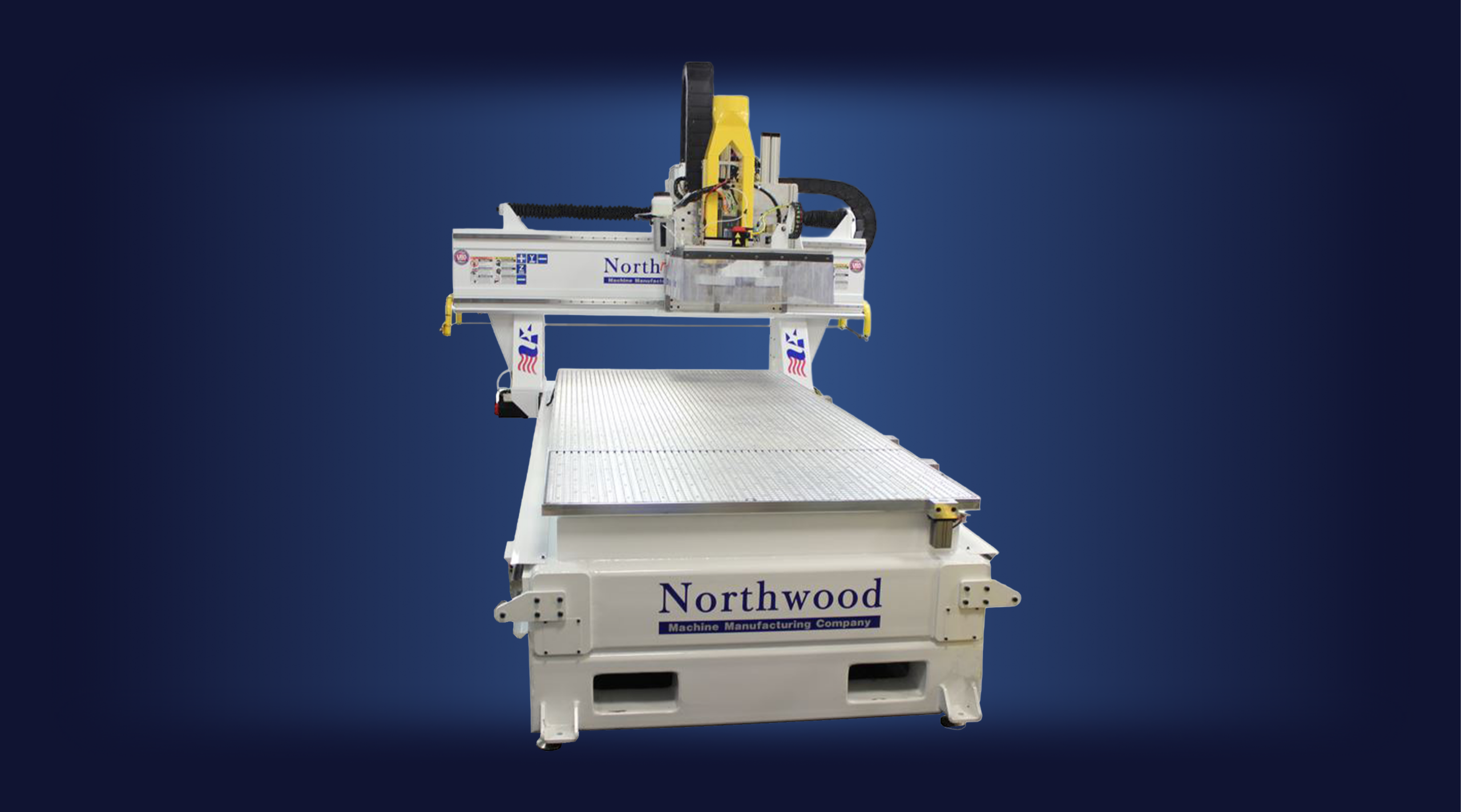

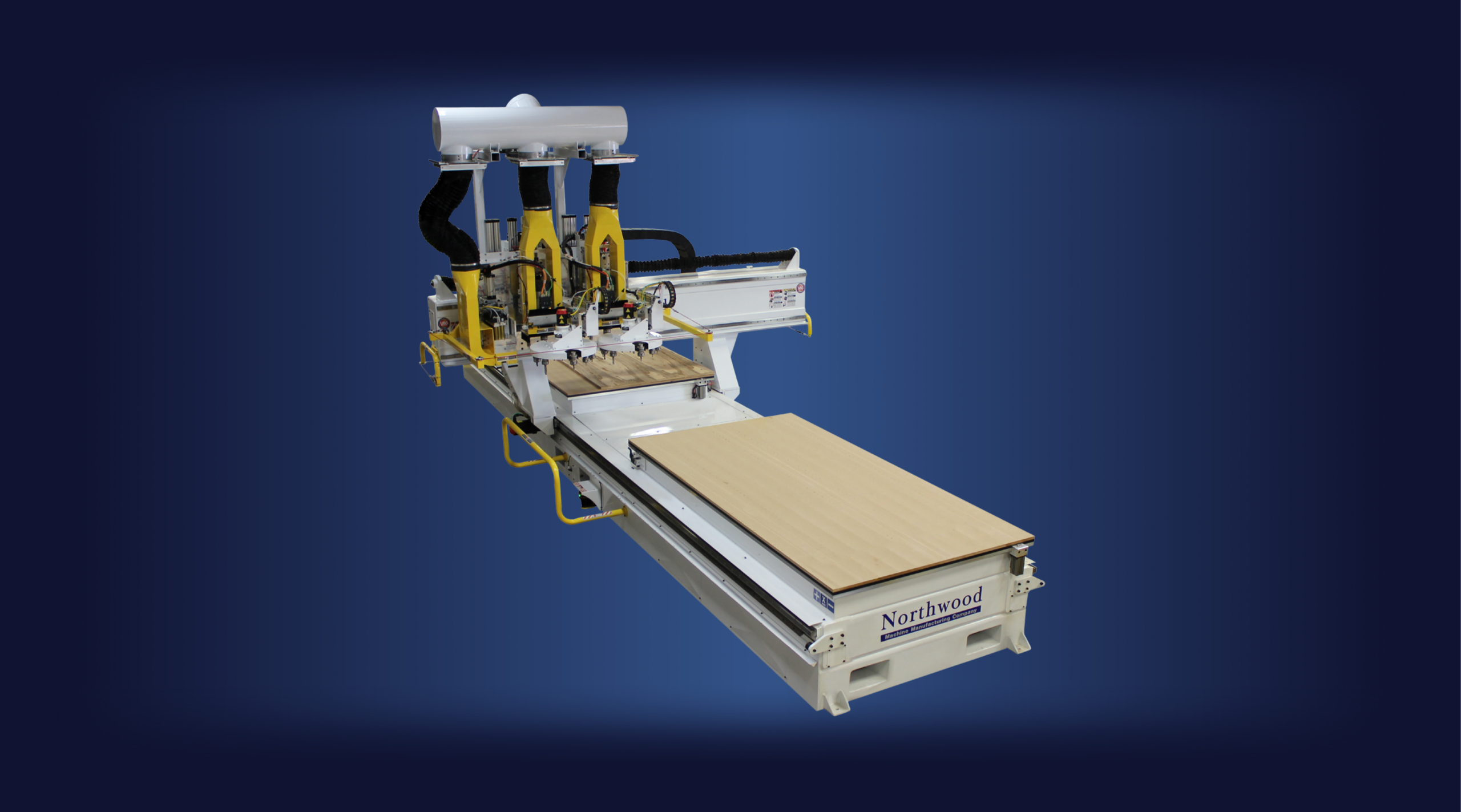

Combine the routing, sawing, milling and drilling performance you expect from a Northwood in a traveling gantry CNC machine. The tooling and table sizes are fully customizable, and start at 4-feet by 8-feet. Standard single-zone tables go up to 5-feet by 12-feet, but dual-zone tables can extend up to 30 feet.
Spindles range from 18 to 24 hp and ramp up to 24,000 RPM for extreme precision. Choose between four options for primary spindles, as well as other custom spindles for your application. Whatever additional tooling your application requires, the Ironside 3 has you covered — saws, drills (9-line, 21-line, 35-line), dual heads, 12- or 20-position tool changers and more.
Accurately locate sheets every time with the 1.25-inch diameter steel location pins and achieve even vacuum hold down with our standard aluminum matrix or optional phenolic tables. Our tables accept either cups or pods.

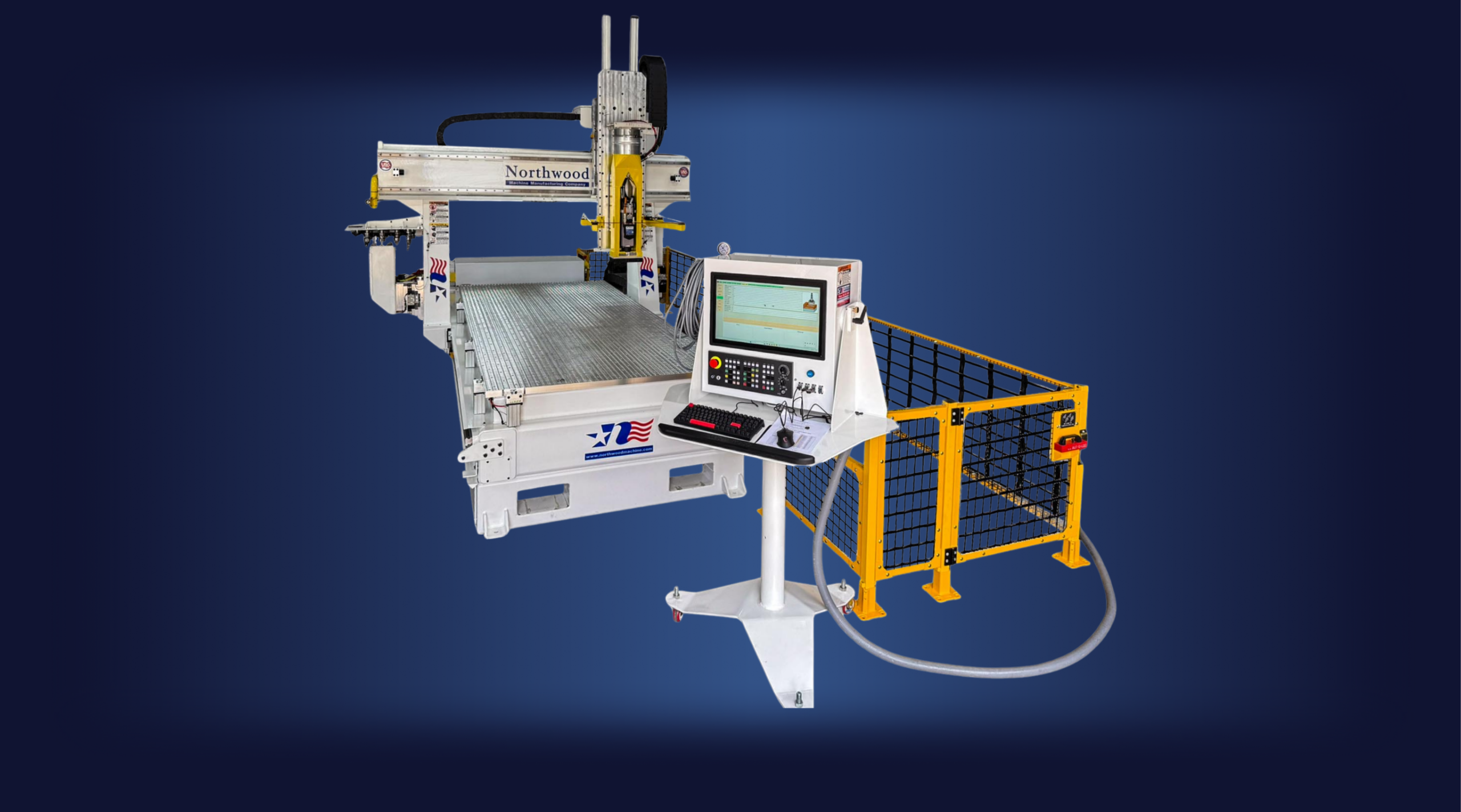

Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121, 61 x 145, custom
Table orientations
Narrow
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle-mounted fourth axis
C-axis
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Z on multi-tool machines
Z-axis travel (inches)
14 (standard), 36 (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal), 29-line, 35-line (all vertical), 40-line
Saw
Single direction saw, programmable 360 degrees saw/V-groover, direct drive servo saw, 5-axis direct drive saw
Molder
6-inch wide shaft, 12-inch wide arbor, HSK-80 integral quick change molder
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
