Ironside AMMS
The Ironside AMMS is an automated material management system for the Ironside series of CNC machines. Also known as a linear feedthrough, automation work cell or nested-based automation cell, the Ironside AMMS improves throughput by decreasing load and unload times.
With a truly automated system like the Ironside AMMS, an operator can safely keep their distance from the CNC machine — place materials in the load area and collect finished parts from the output conveyor. Not only does this improve safety, but it also allows manufacturing floors to do more with fewer resources.

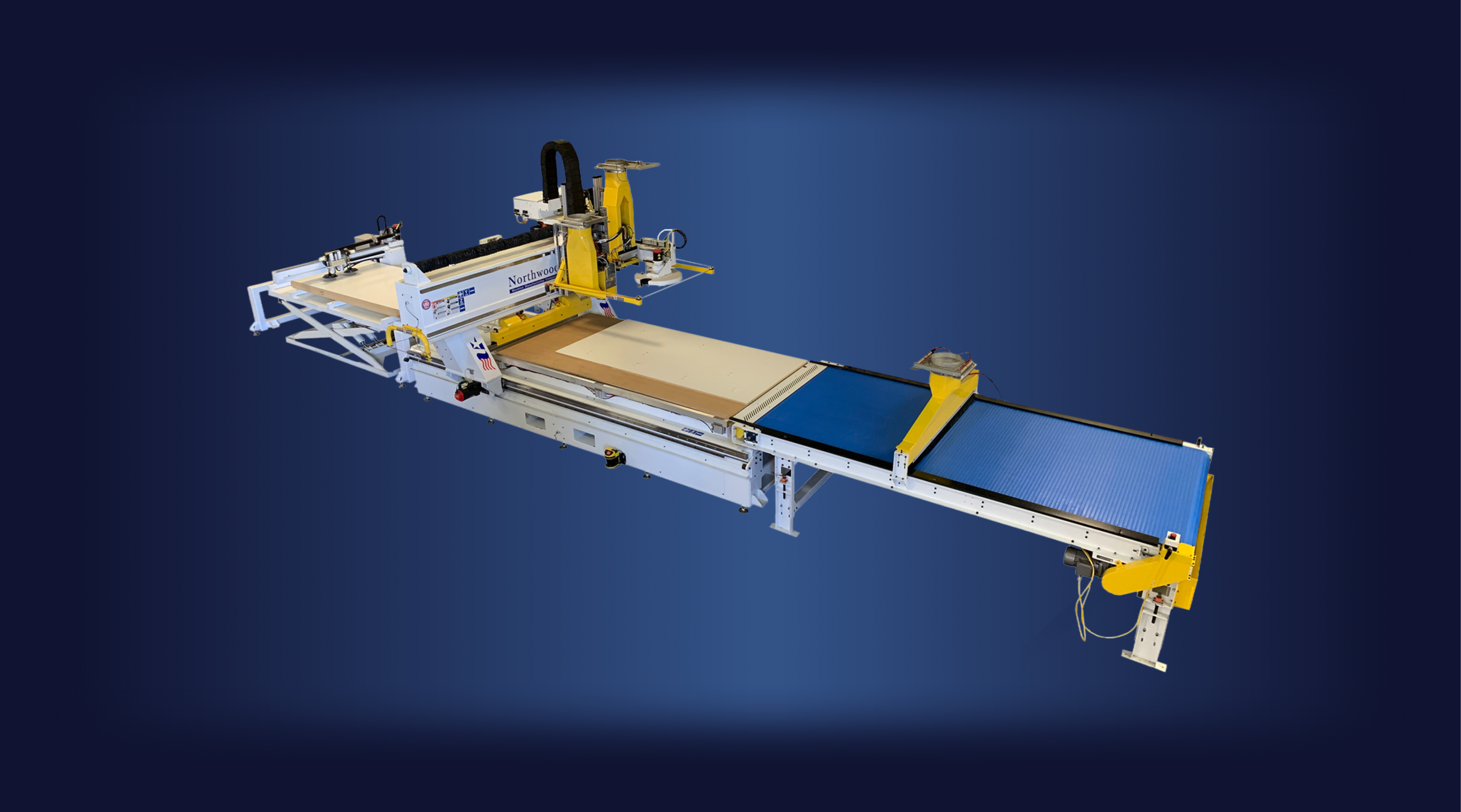

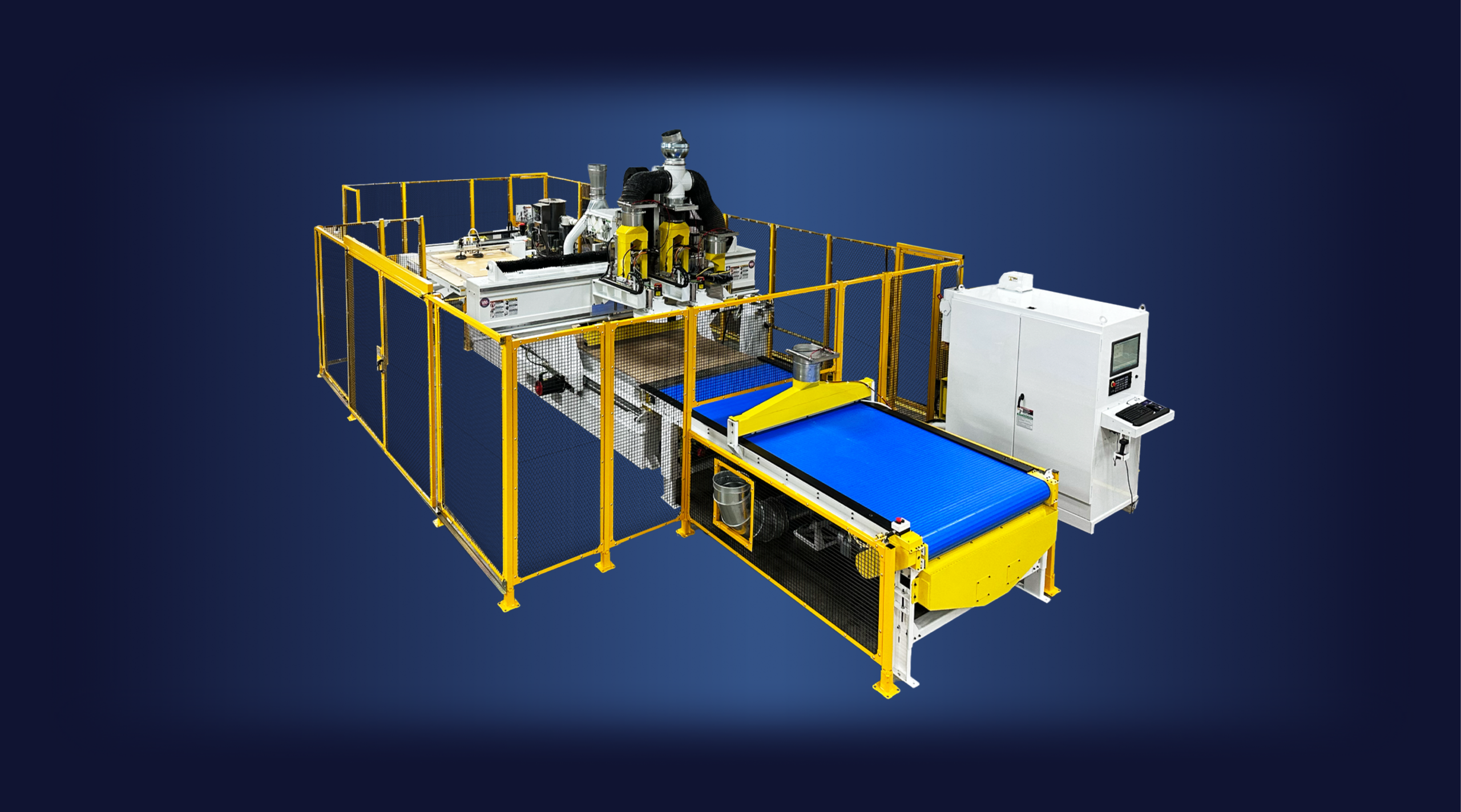

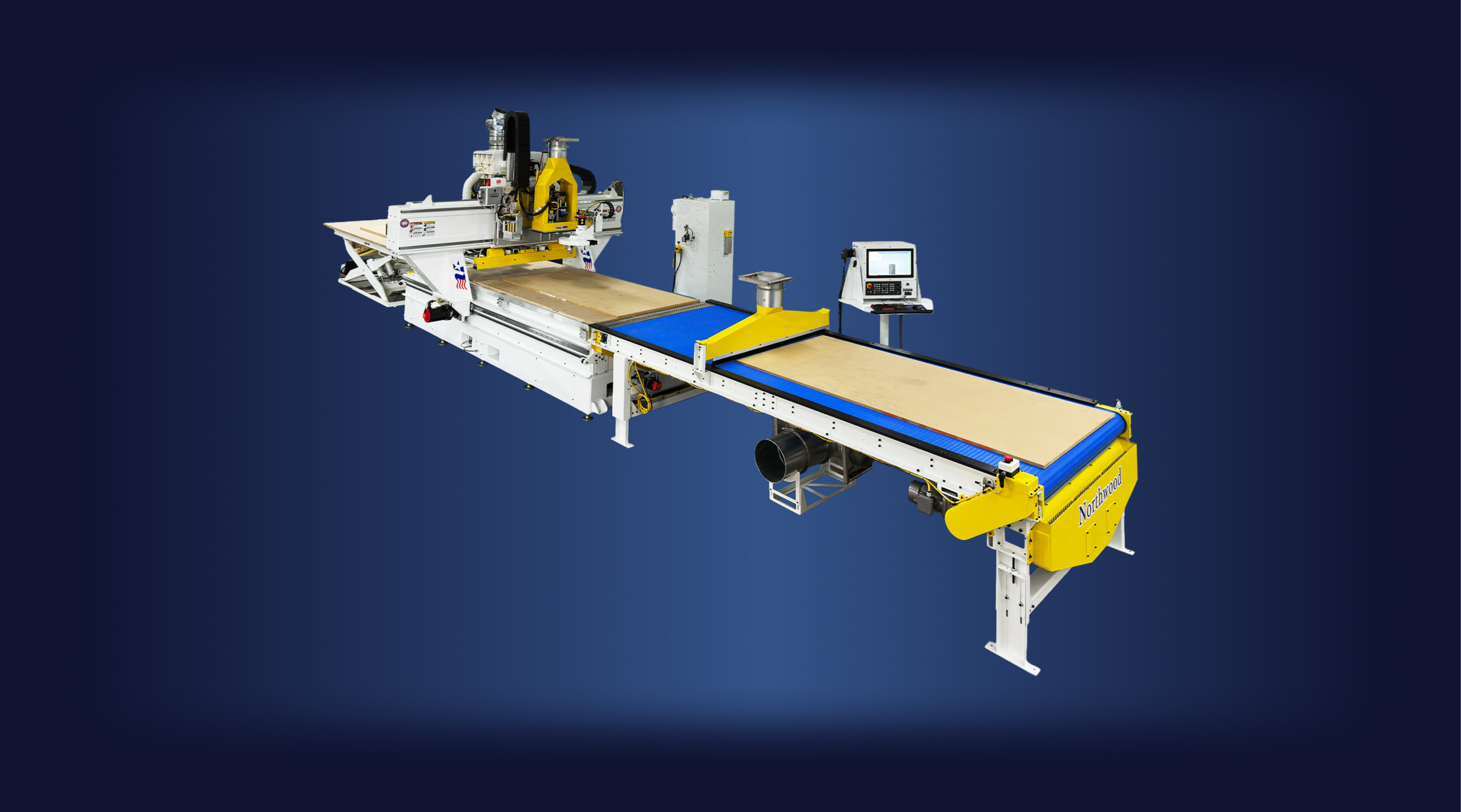

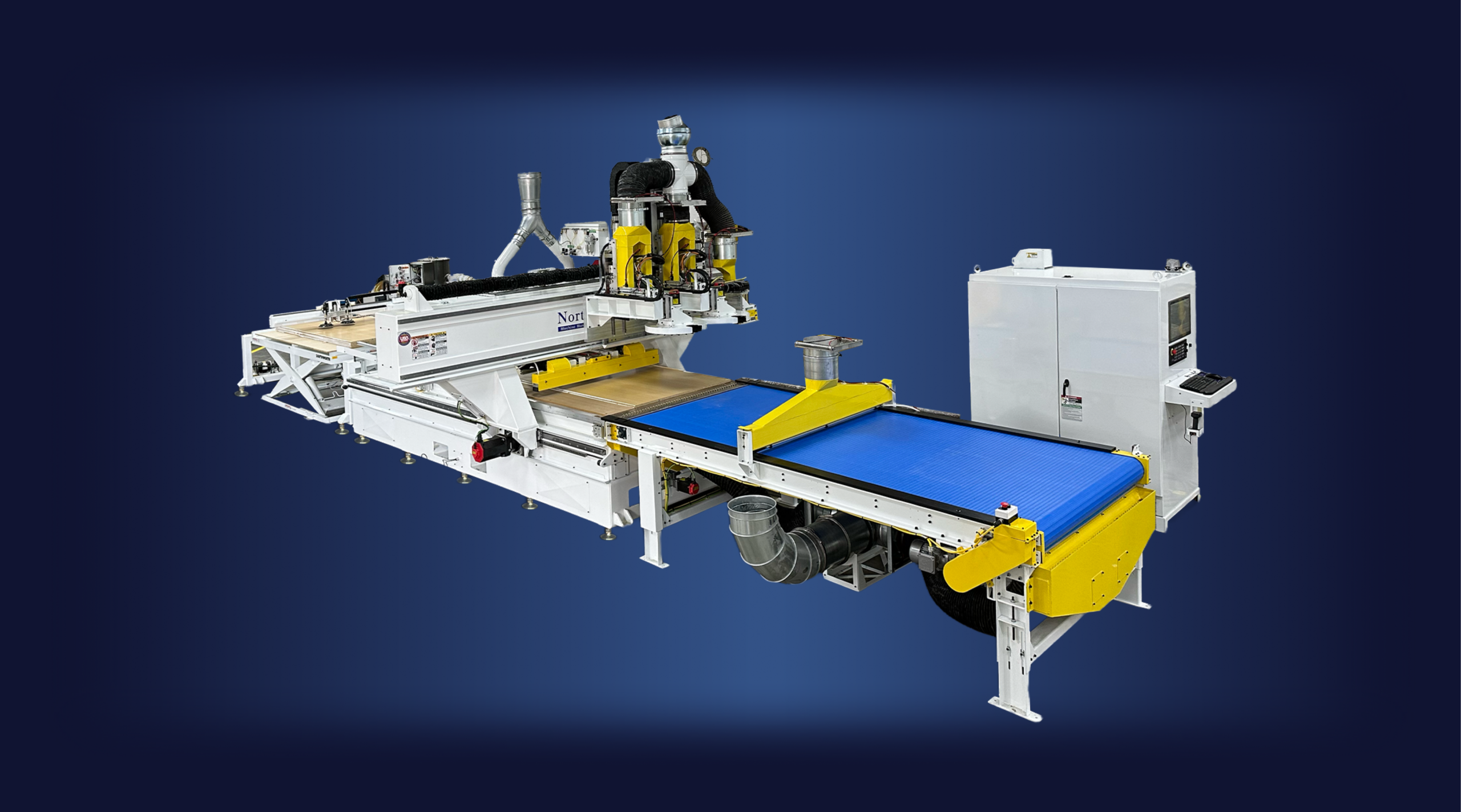

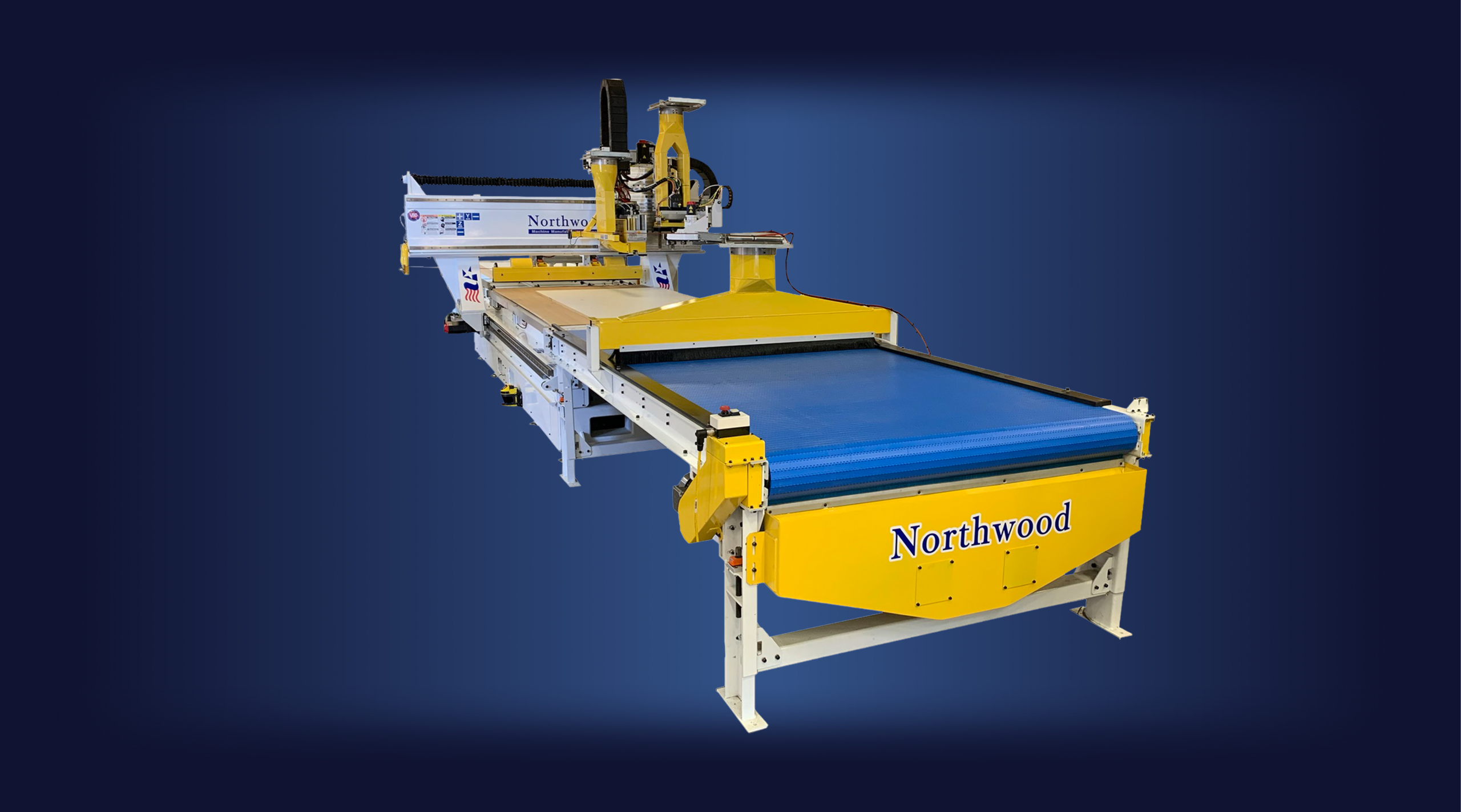

The Ironside AMMS series features three setups for material handling — fully automated unloading, automatic loading and unloading, and pre-labeling with automatic loading and unloading. These options help nested-based manufacturers use their skilled labor more effectively.
Every variation includes servo positioning to keep the offload sweeper scraper and the offload belt conveyor aligned to spoil board height. If the positioning is off, parts become less consistent and efficiency declines. By controlling the drops, gaps and depths on the table, you prevent this from happening.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121, 61 x 145, custom
Table orientations
Narrow
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle-mounted fourth axis
C-axis
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Z on multi-tool machines
Z-axis travel (inches)
14 (standard), 24 (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal), 29-line, 35-line (all vertical), 40-line
Saw
Single direction saw, programmable 360 degrees saw/V-groover, direct drive servo saw, 5-axis direct drive saw
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
