Iron Horse 3
The Iron Horse 3 is a three-axis moving table CNC machine designed for quality and precision. A wide range of industries rely on the Iron Horse 3 for nested-based manufacturing and multi-process machining applications using plastic, aluminum, wood and other materials.

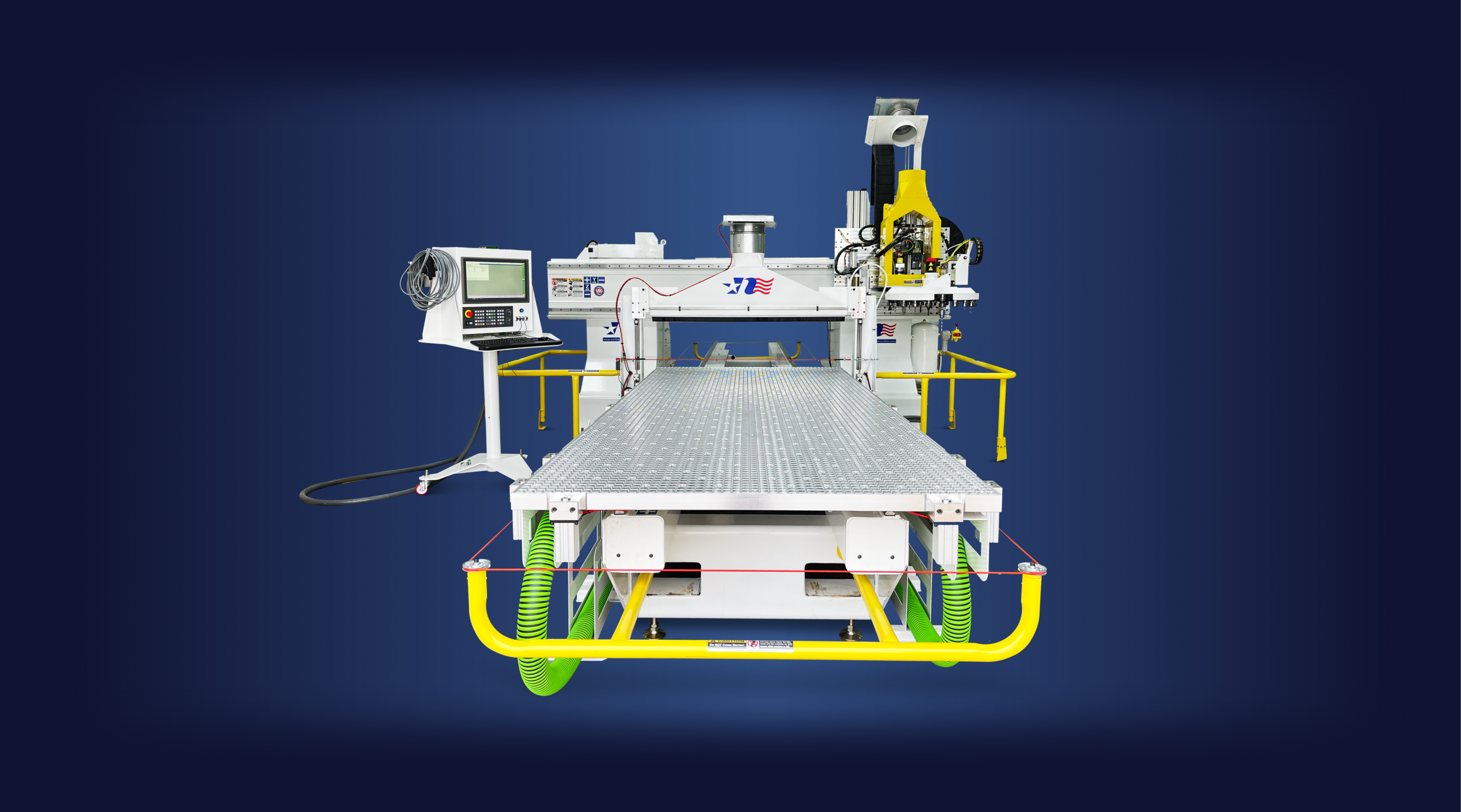

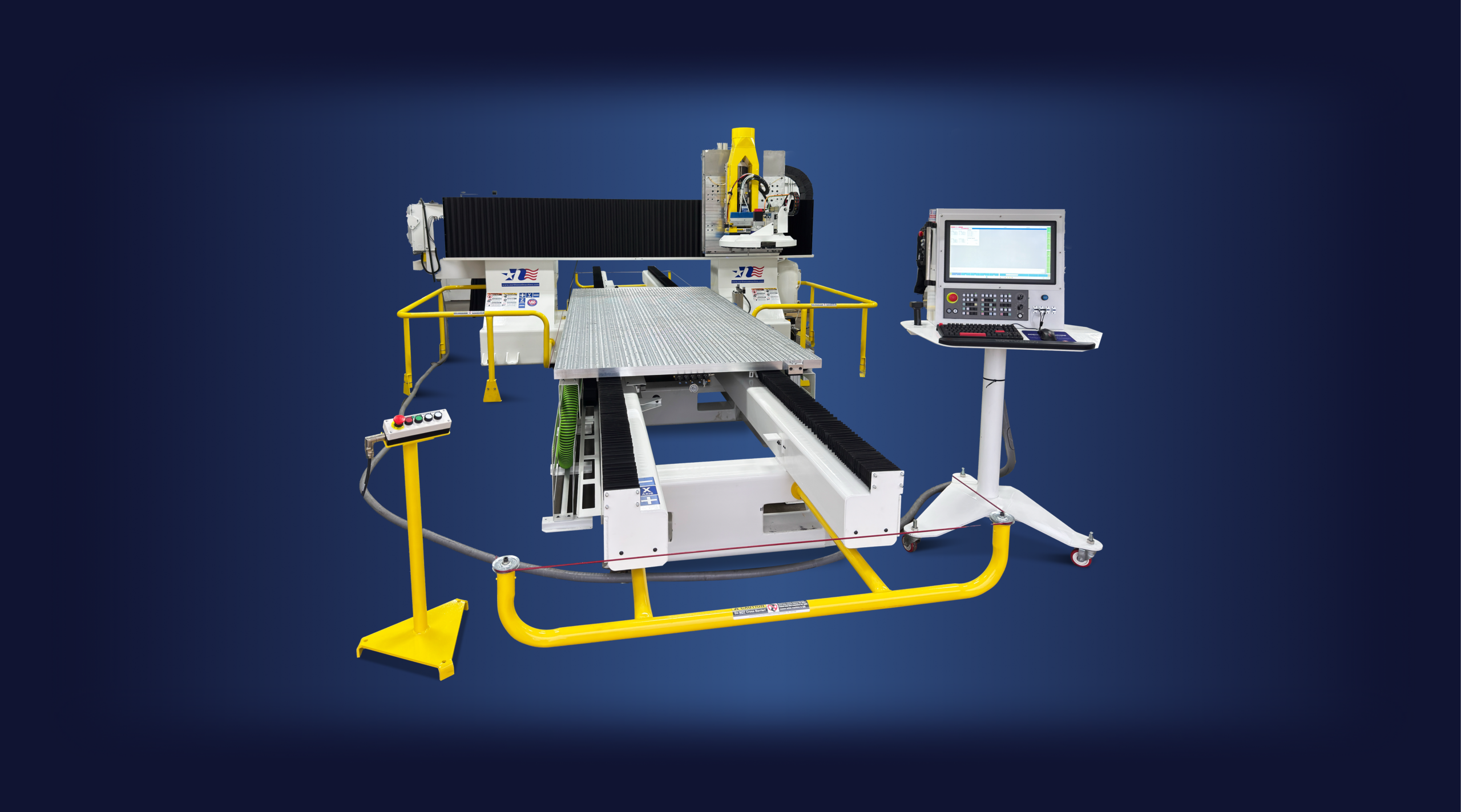

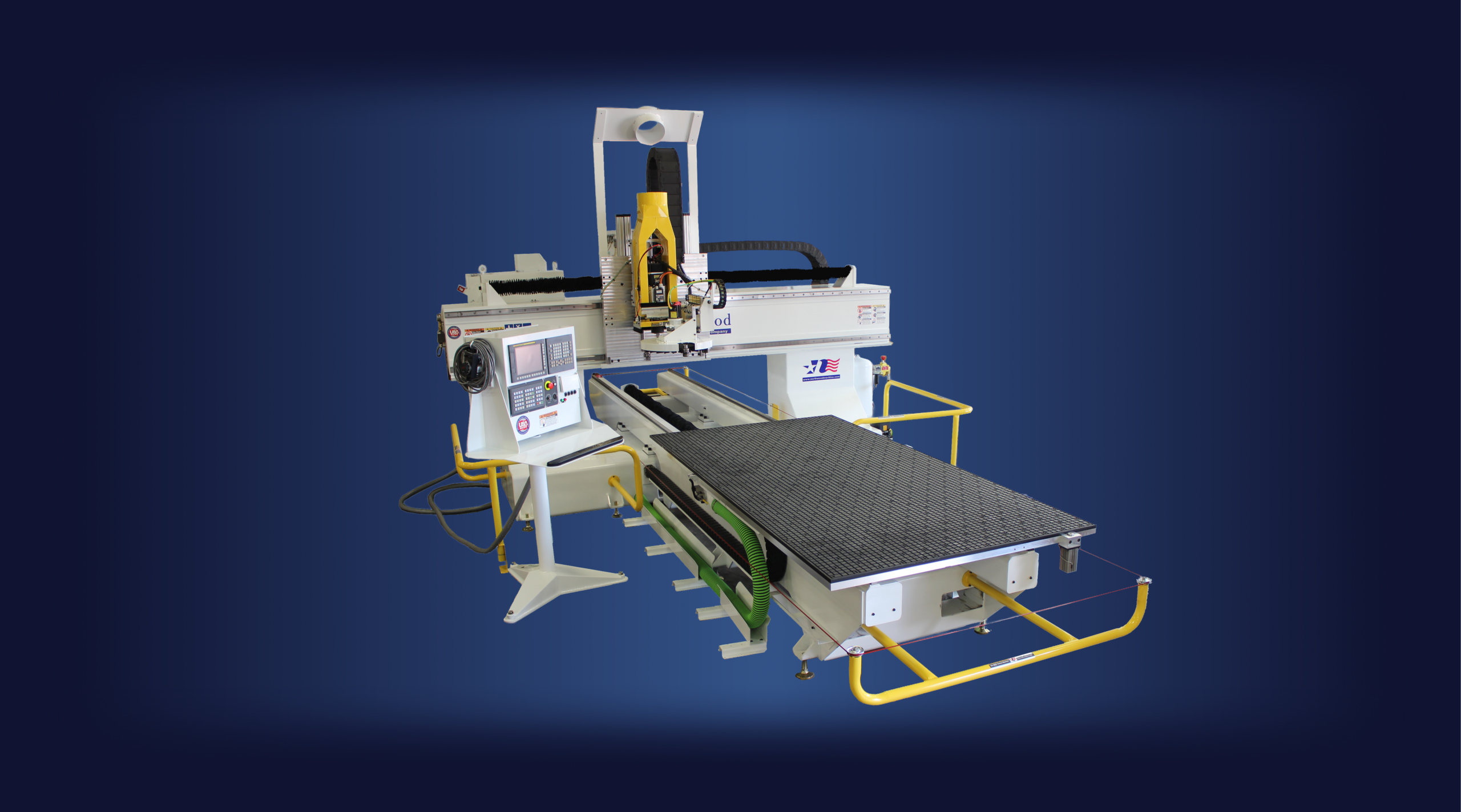

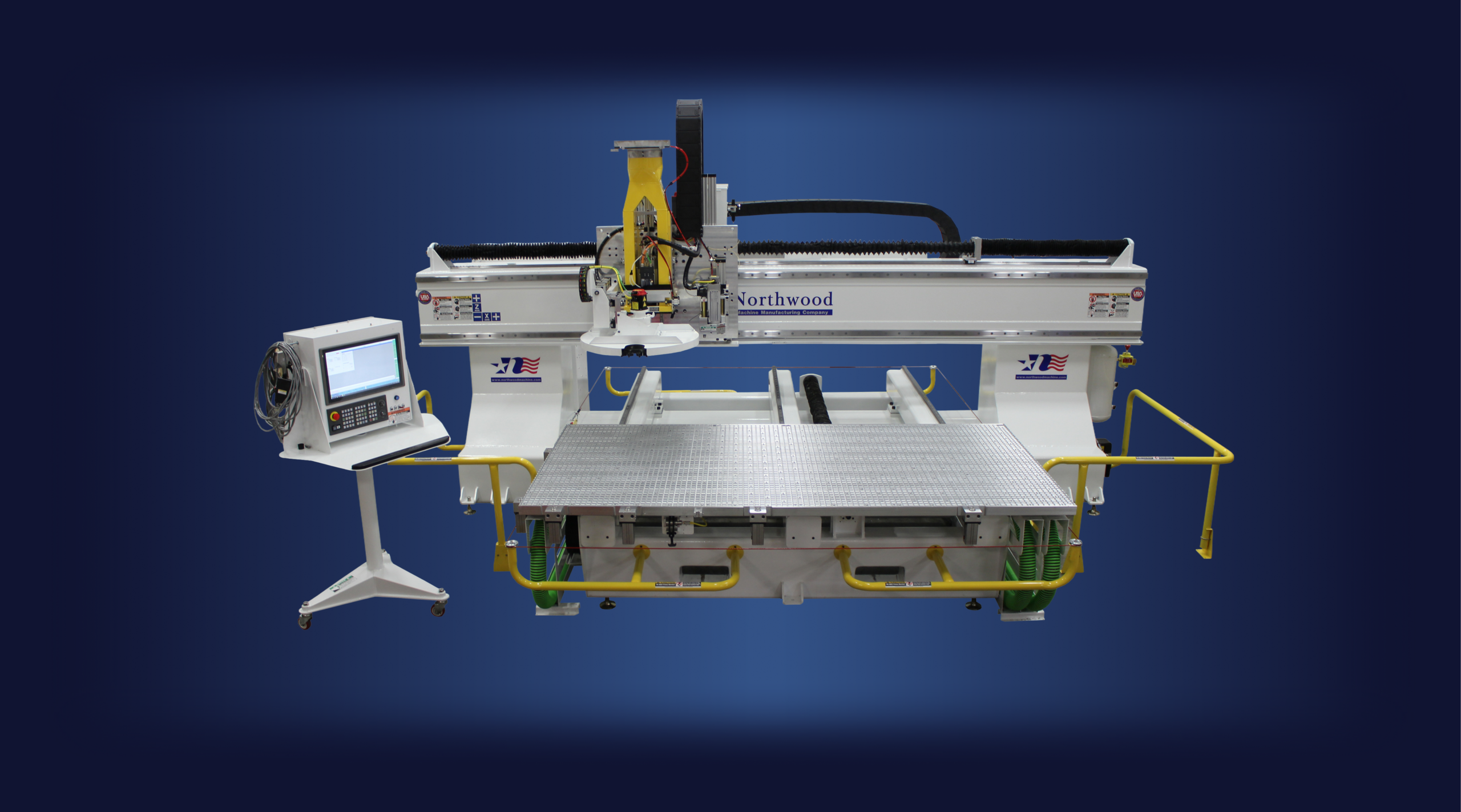

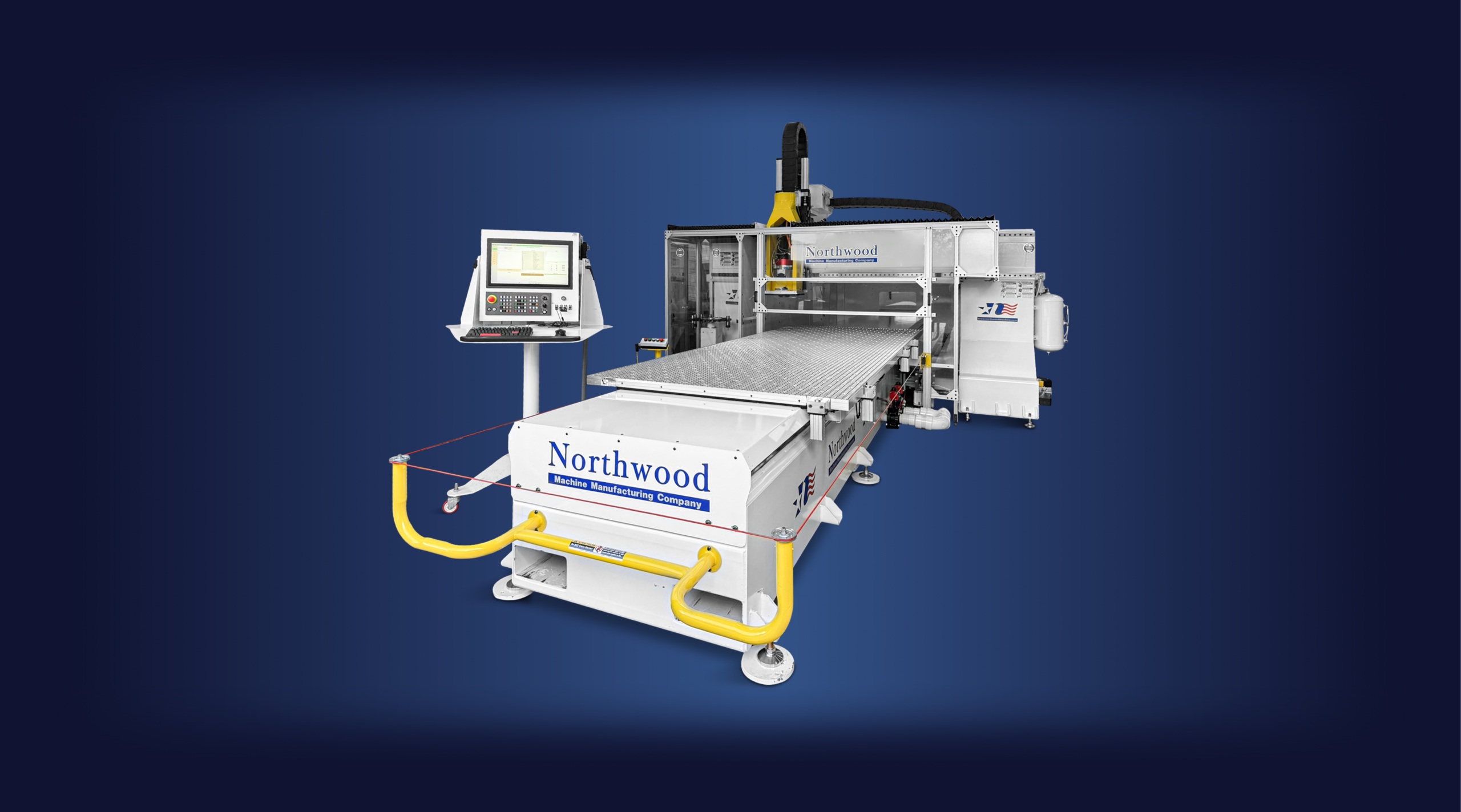

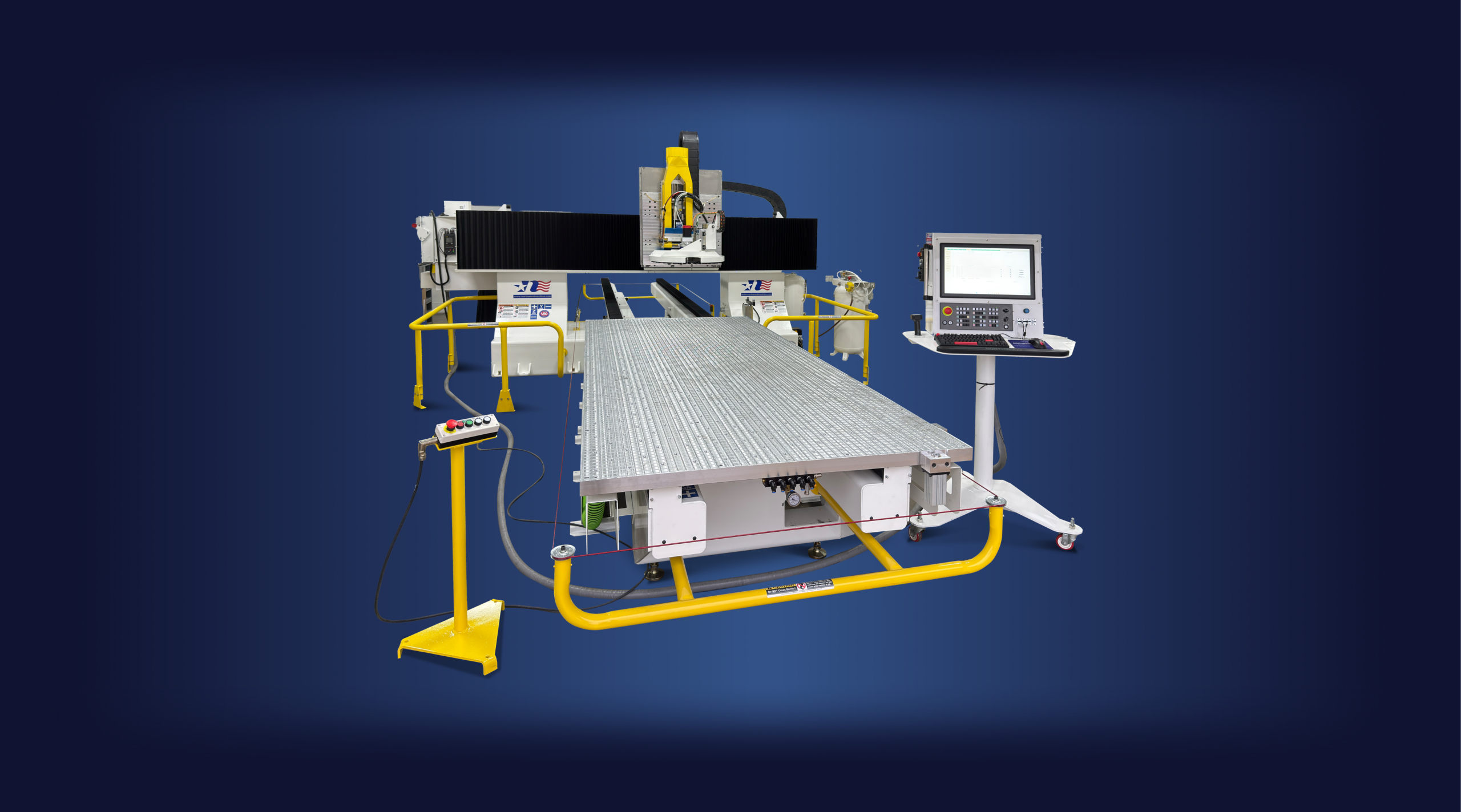

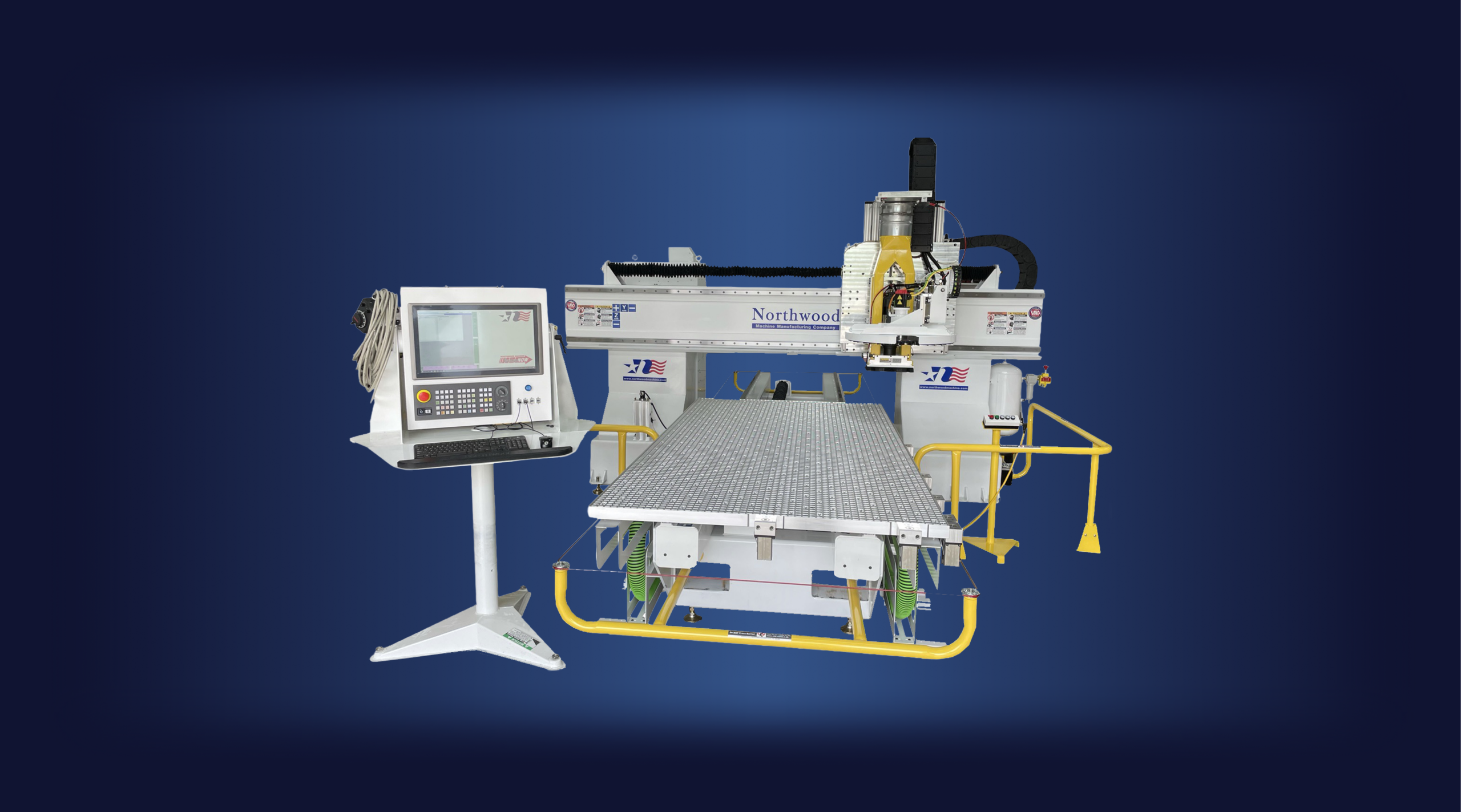

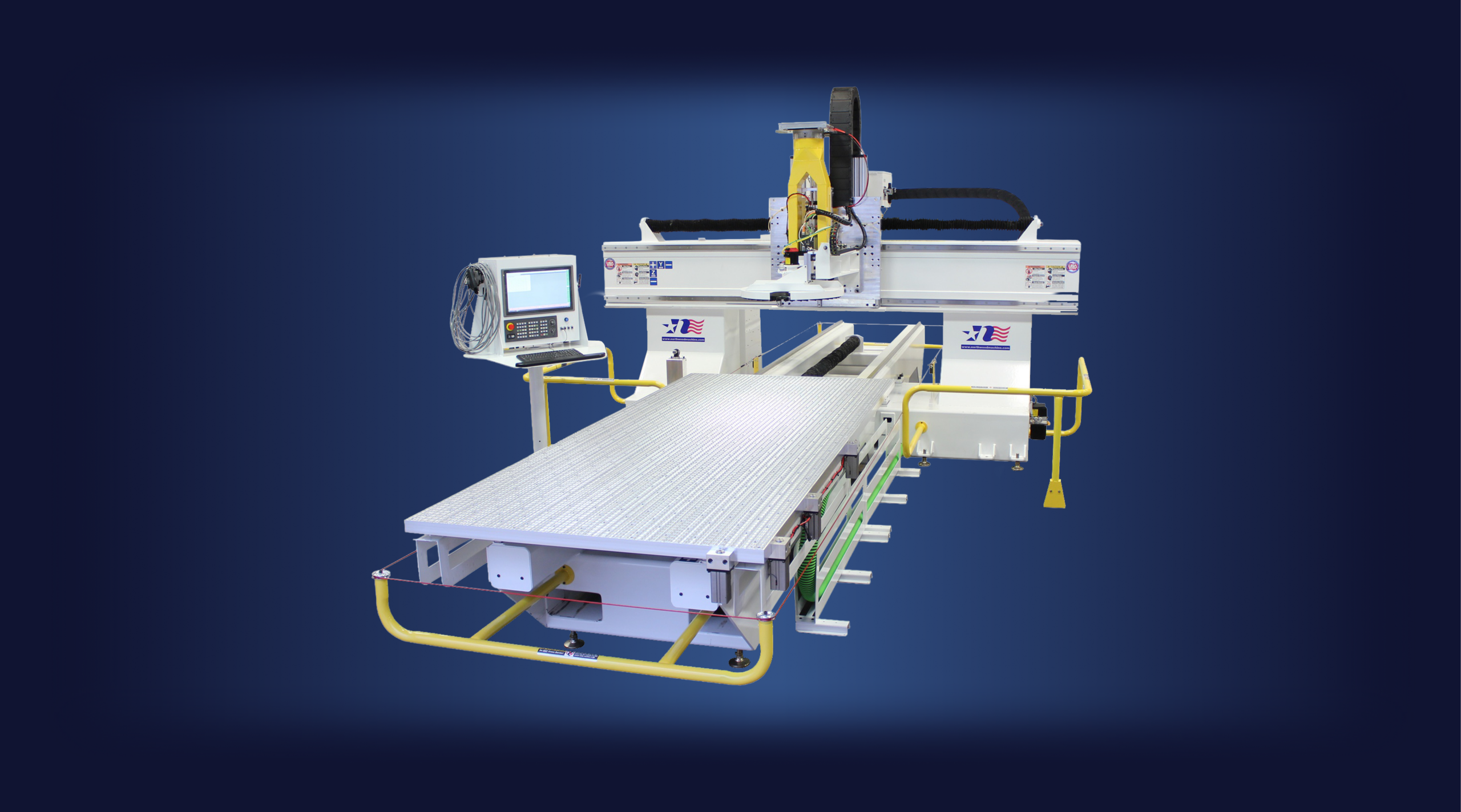

No matter your shop’s footprint or preferences, the Iron Horse 3 has an option for your needs. If you’re looking for a more compact footprint, a wide orientation delivers the precision and efficiency you expect while saving space. For easier access, a narrow orientation allows for access on three sides of the table for easy loading and unloading.

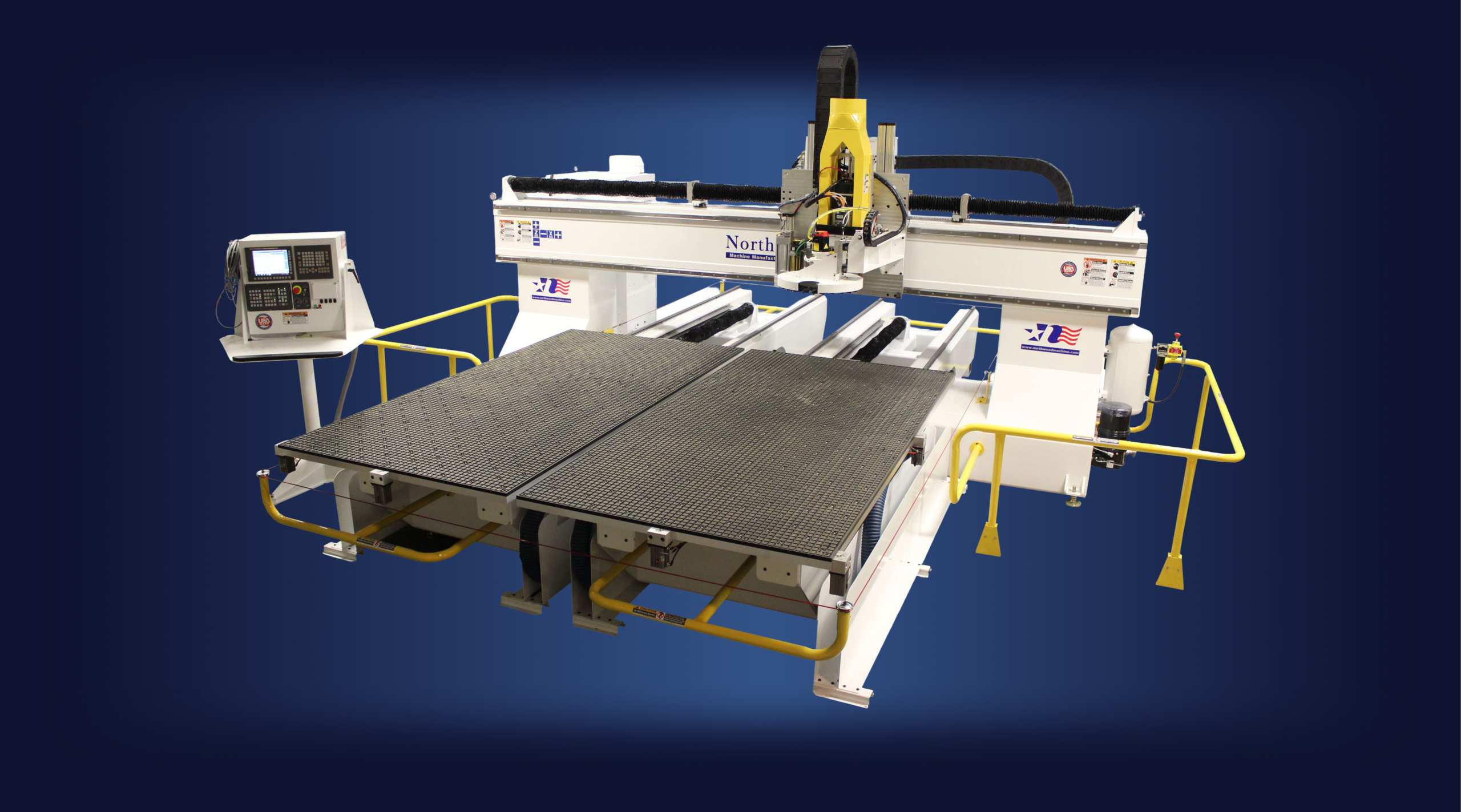

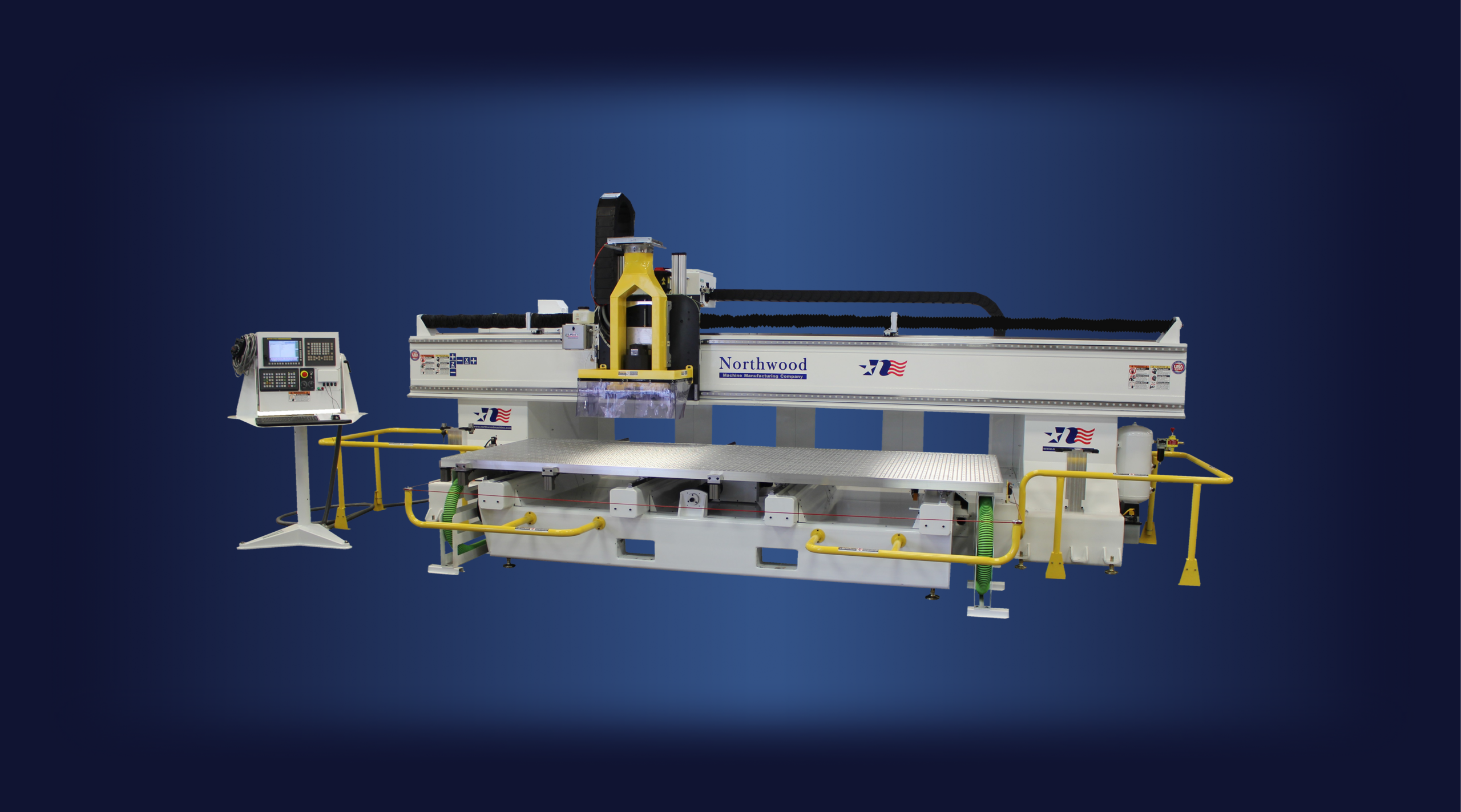

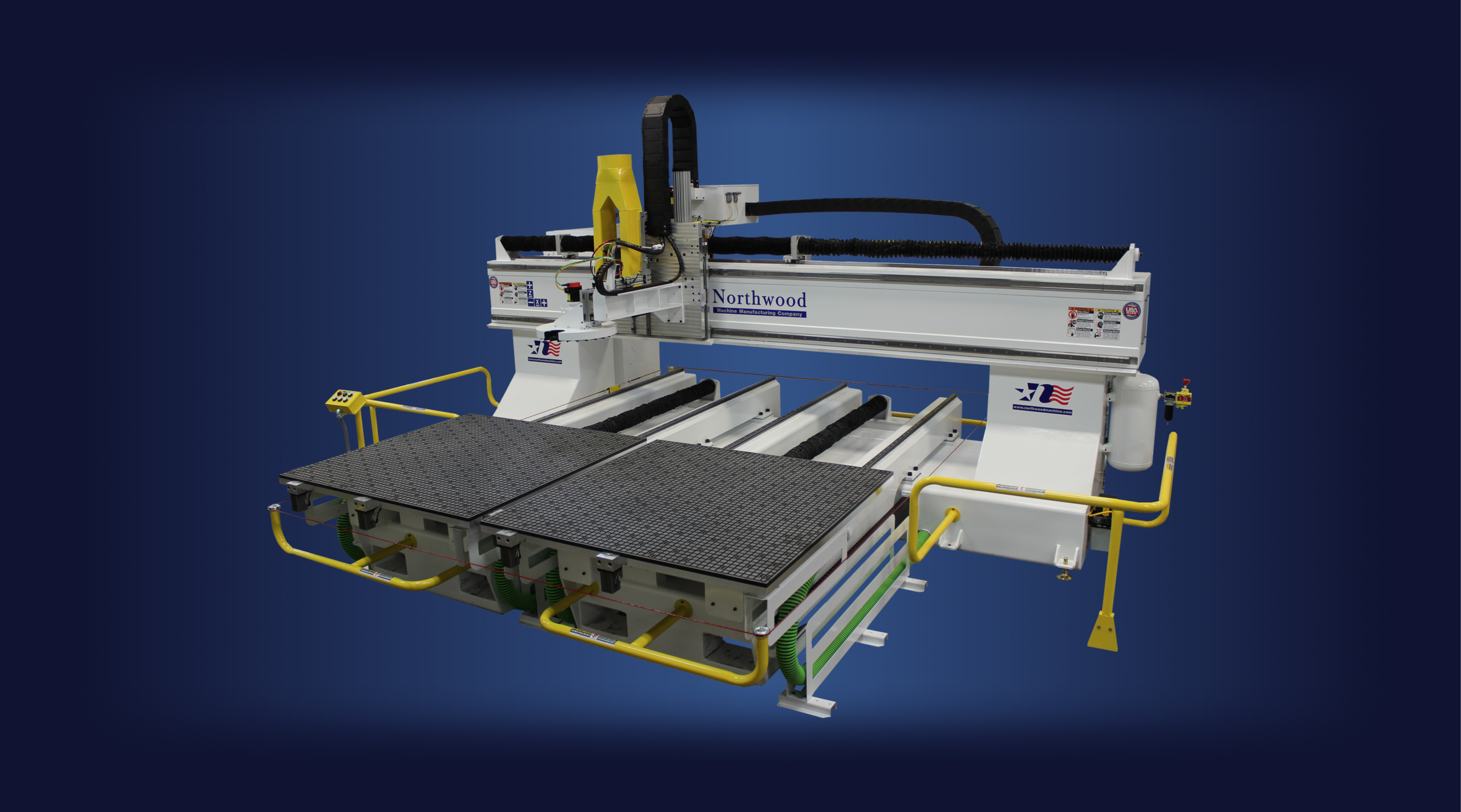

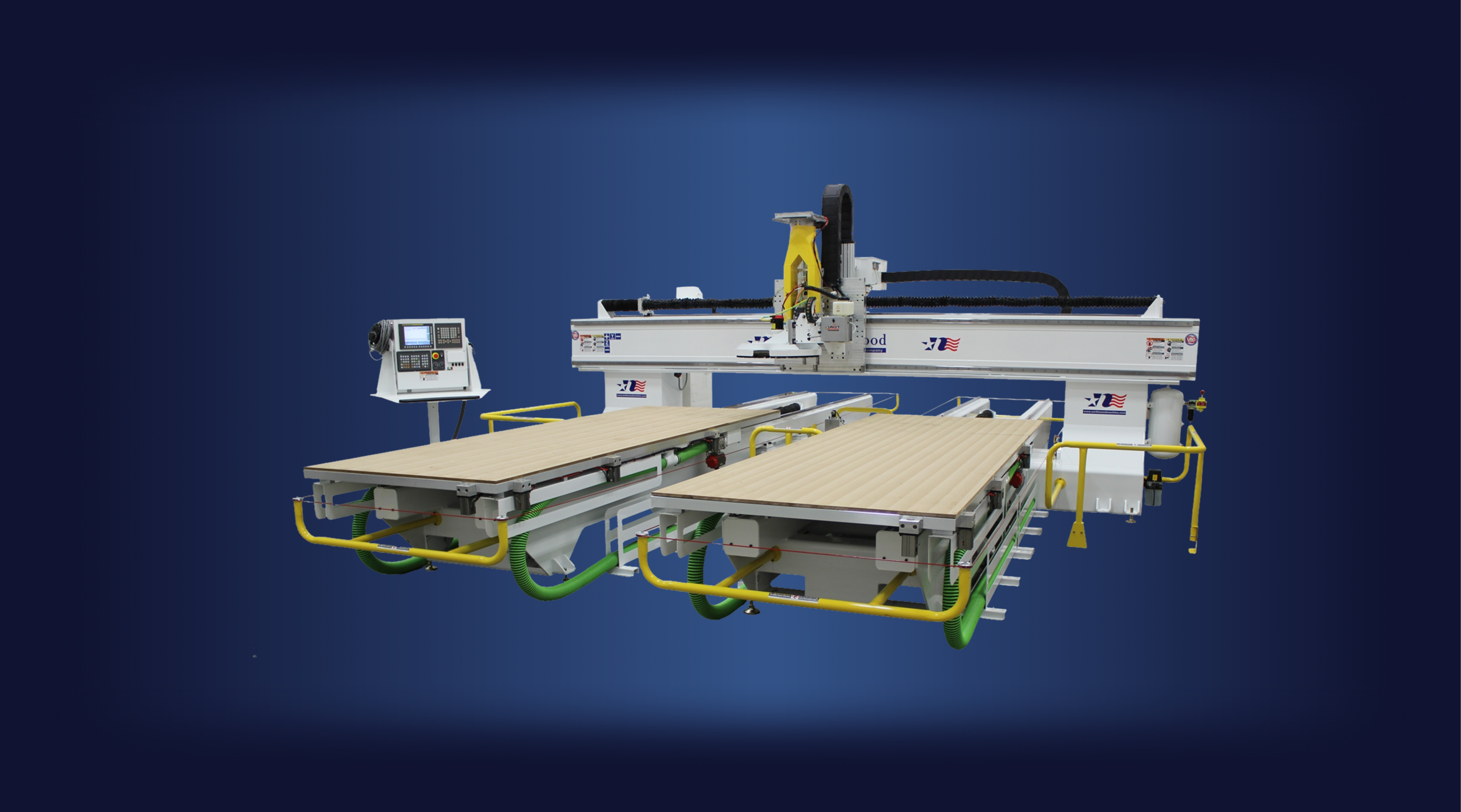

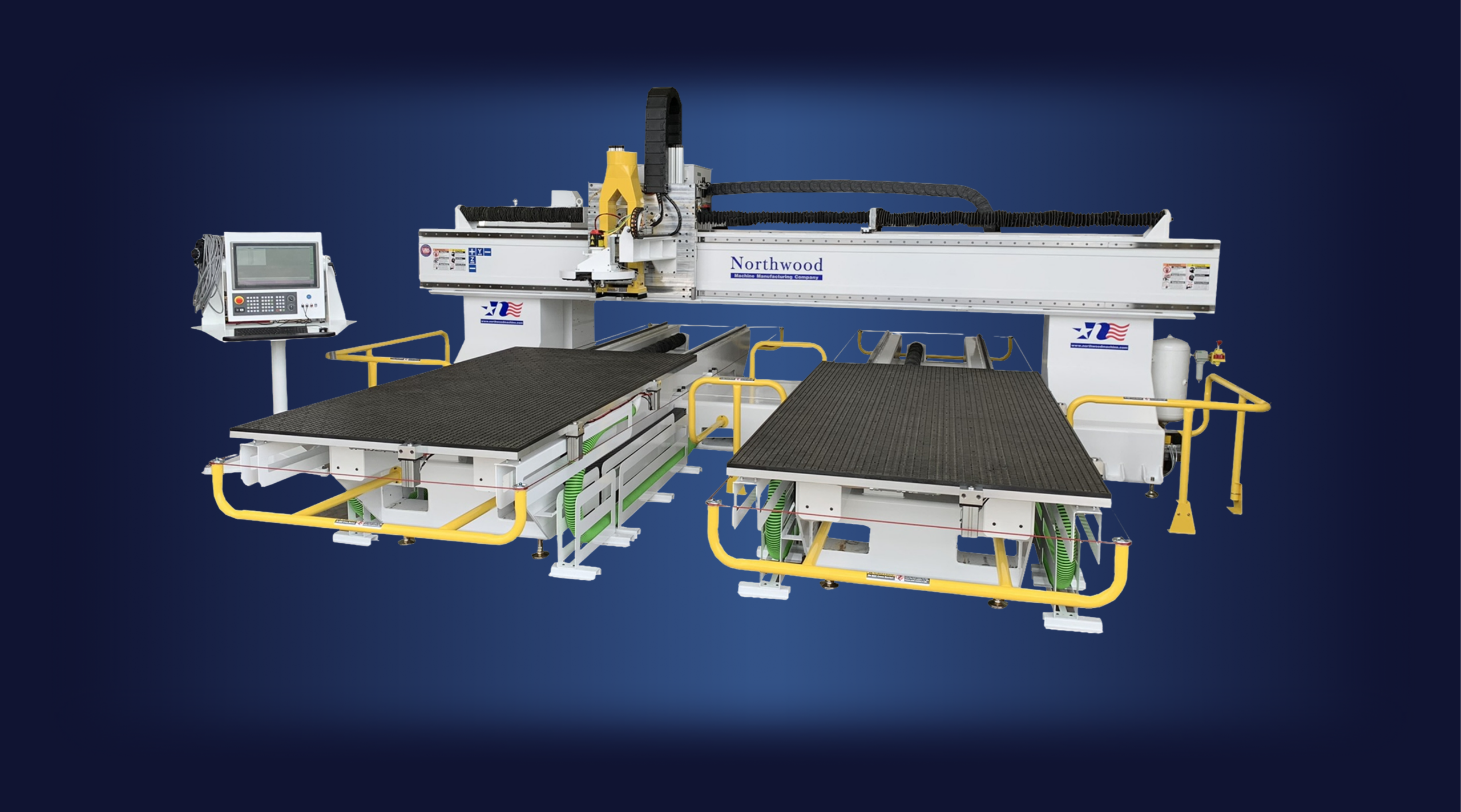

The Iron Horse 3 has an aluminum matrix fixture table and is available in single and twin table variations. For machining large parts, twin tables can lock together to create a bigger work surface. For smaller parts, twin tables with a gap between them allow for pendulum processing with easy access to the tables. This option eliminates idle time and maximizes your machine throughput.
For tooling, the Iron Horse 3 features main spindles and a dynamic “ride-along” automatic tool changer, as well as optional line-boring/drill units. Standard air-cooled spindles start at 18 hp and upgraded liquid-cooled spindles go up to 24 hp.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121, 61 x 145, custom
Table orientations
Single or twin (wide or narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle-mounted fourth axis
C-axis
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Z-axis travel (inches)
14 (standard), 24 (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal), 29-line, 35-line (all vertical), 40-line
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Dust collection
10-inch double-sided dust shroud with optional automatic blast gate
Optional features
Fencing, Keyence scanners, MQL, zipper ducts, barcode reader
