Iron Horse Roller Hold Down

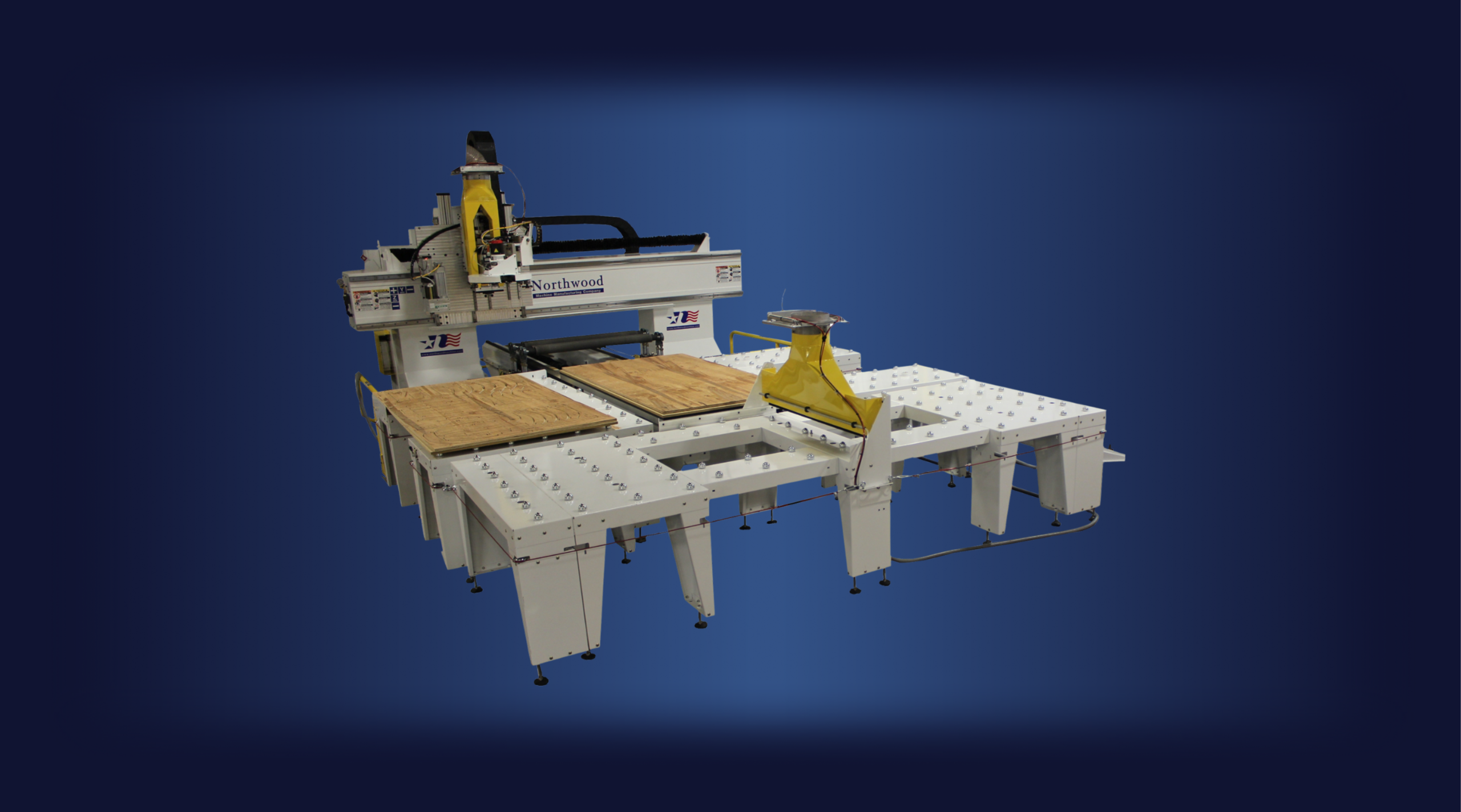

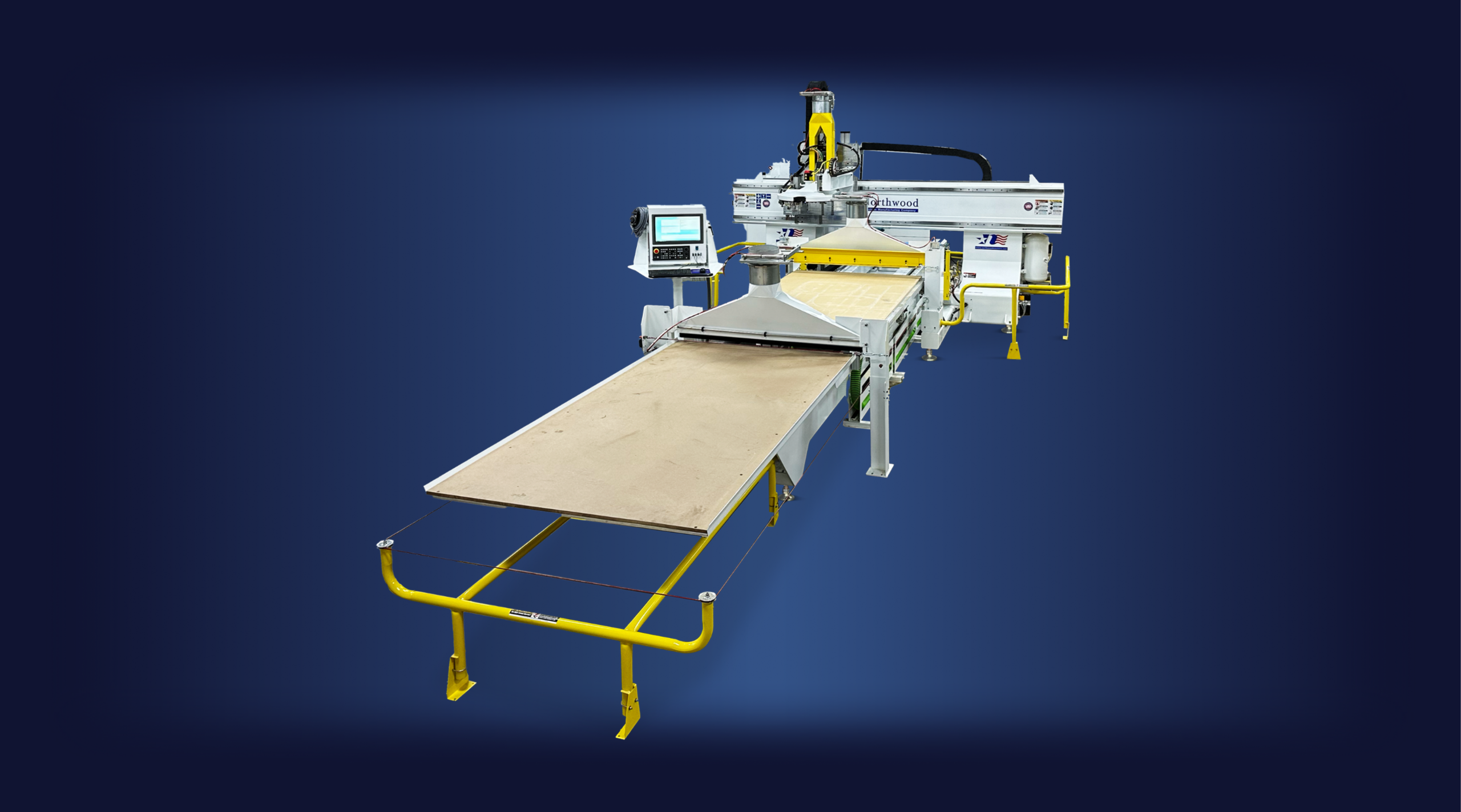

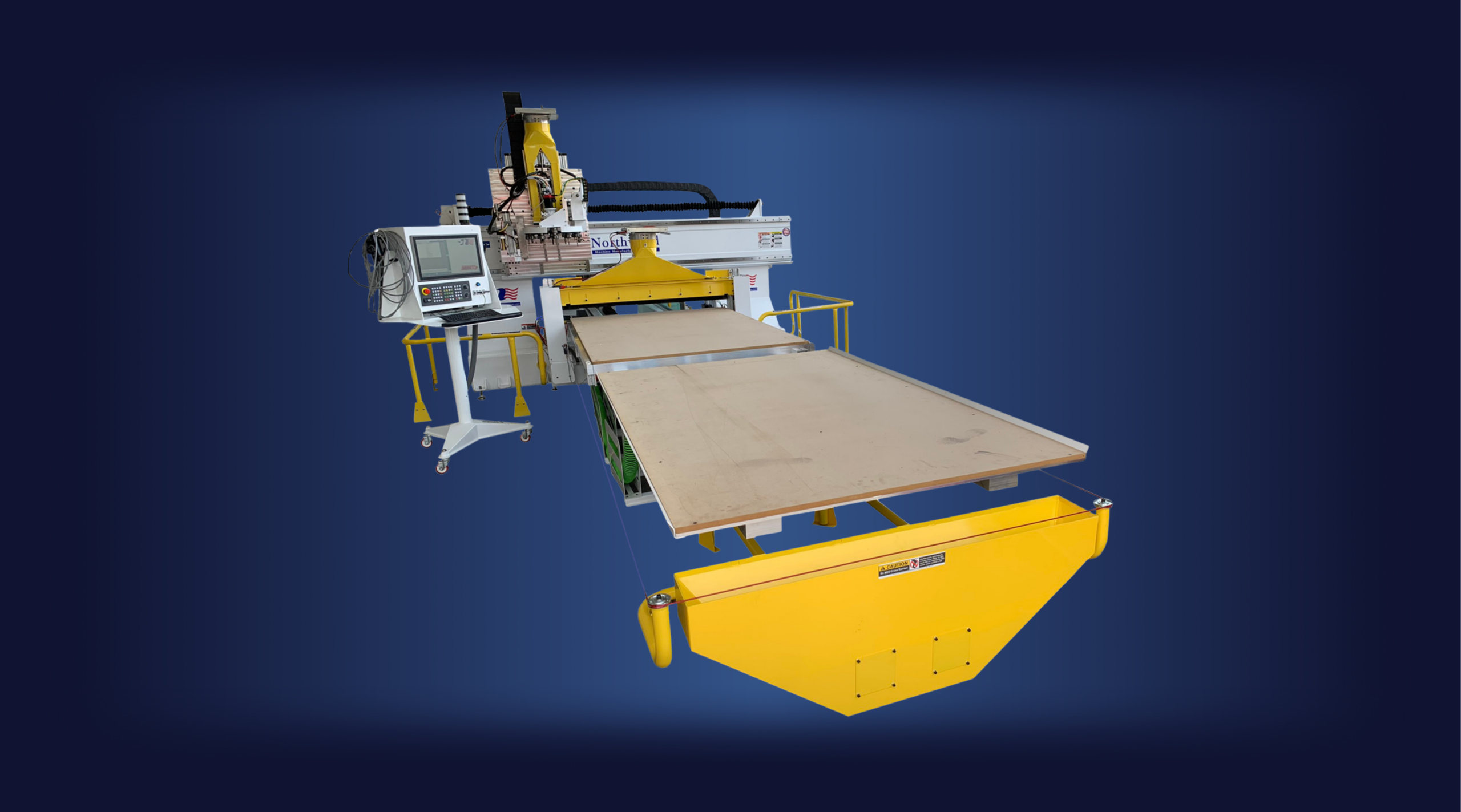

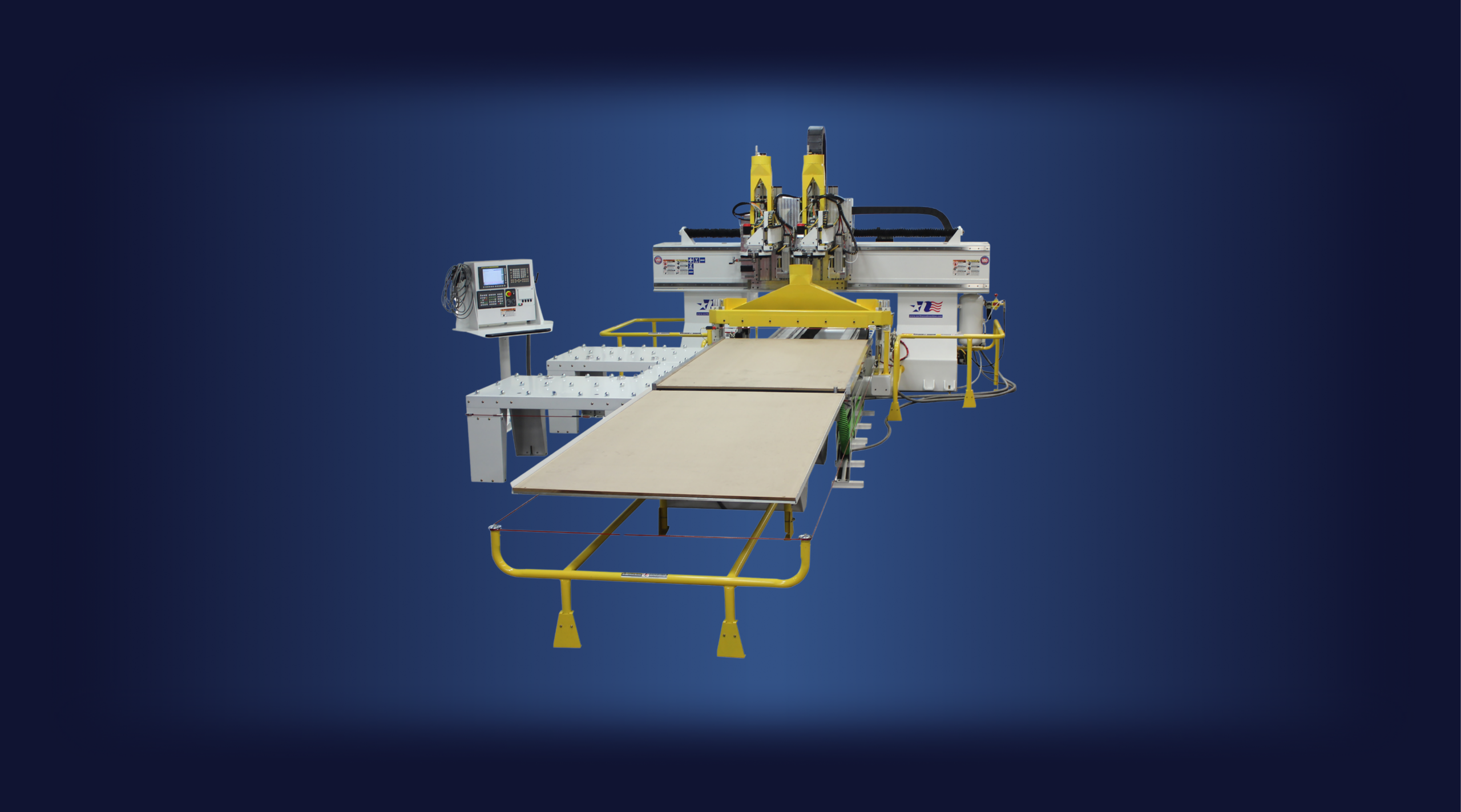

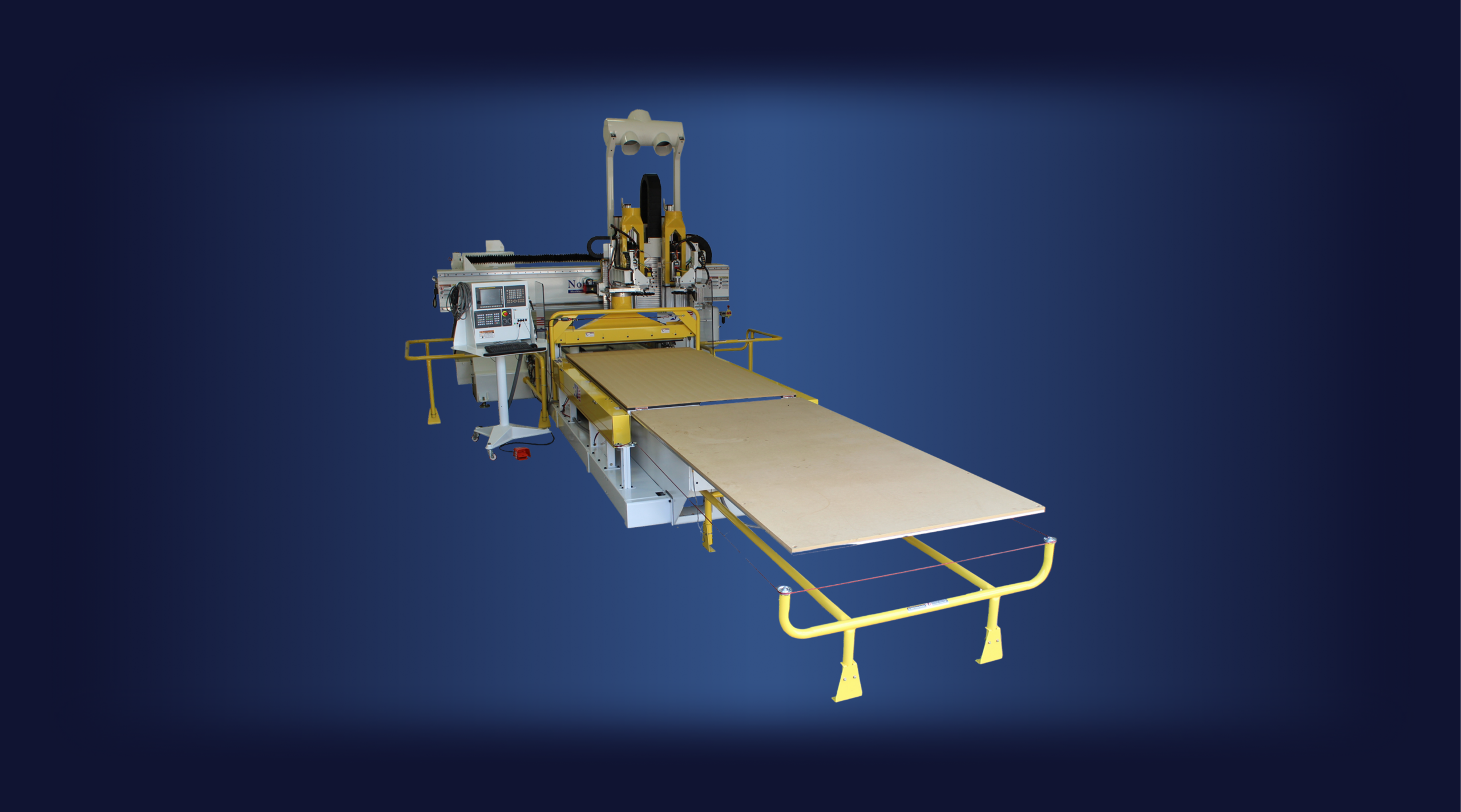

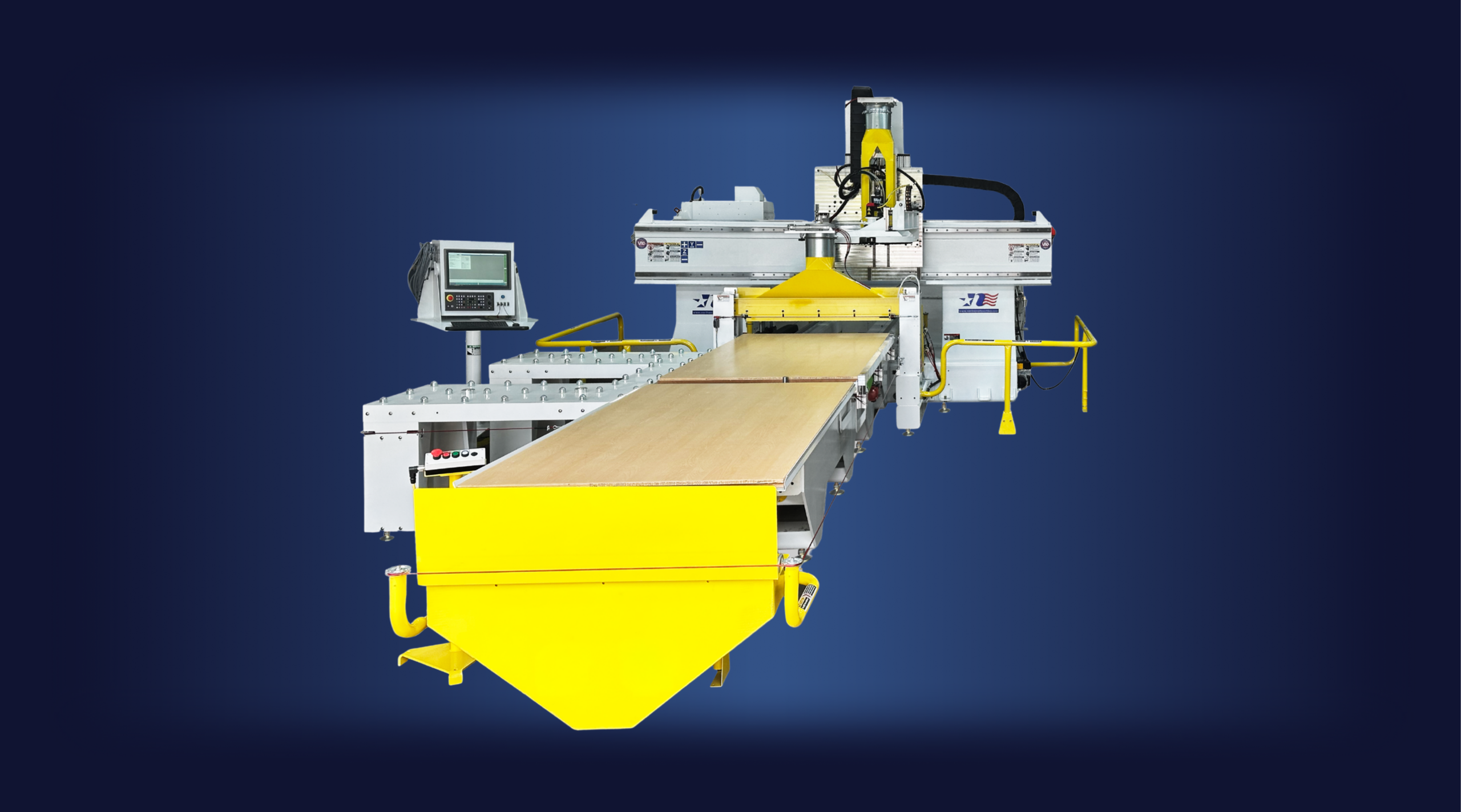

The Iron Horse Roller Hold Down is a three-axis roller hold down machining center. Our roller hold downs have led the market for years, and we’ve upgraded the spindle, as well as increased the design’s rigidity for the Iron Horse RHD.
Designed for plywood reel and plywood upholstery frame furniture manufacturers, the Iron Horse Roller Hold Down prioritizes speed. Because plywood is a lower grade material intended for mass production, rigid construction with premium components is crucial. The CNC machine uses both a vacuum and a roller assist to generate more downward force and achieve the fastest cutting rates in the industry.

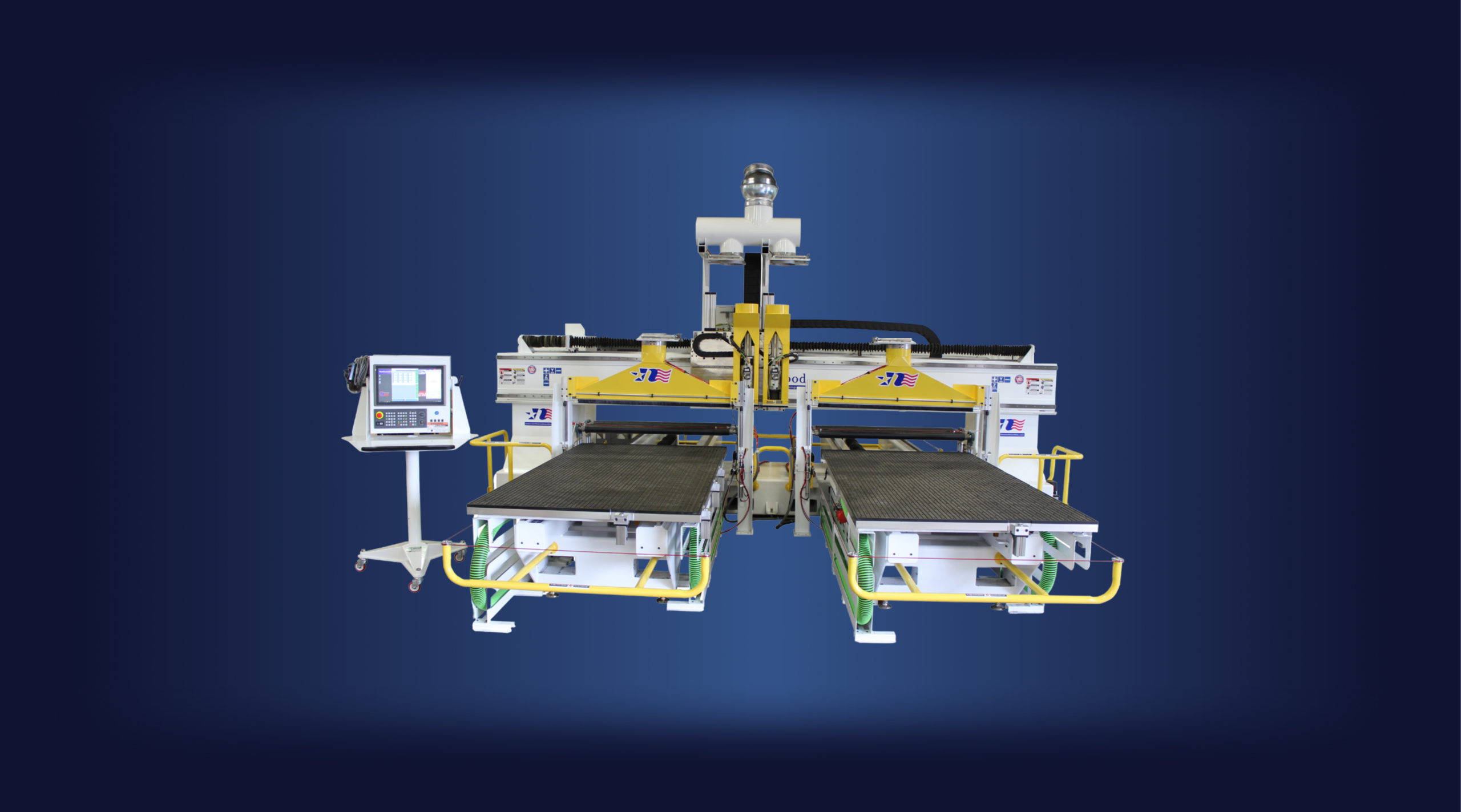

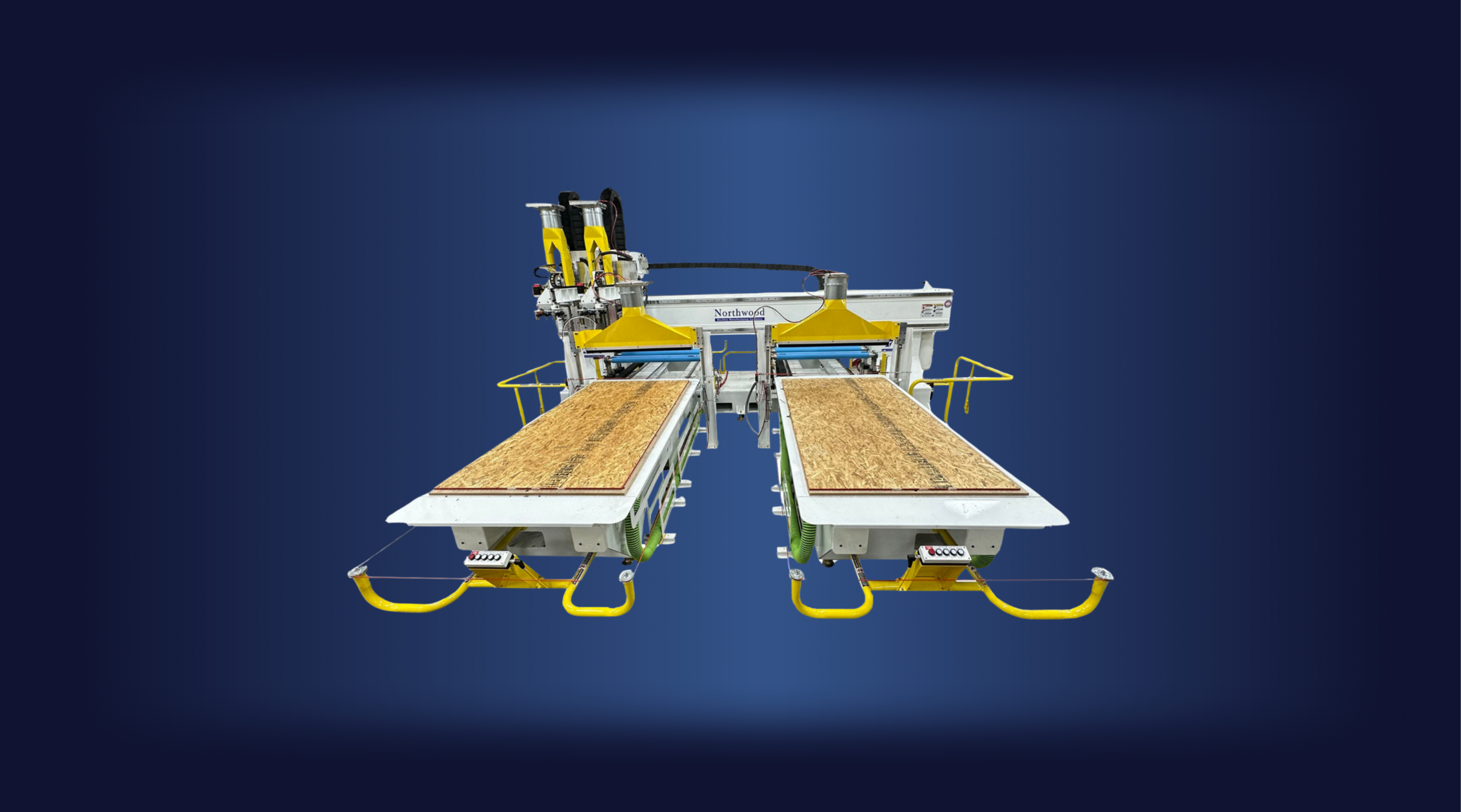

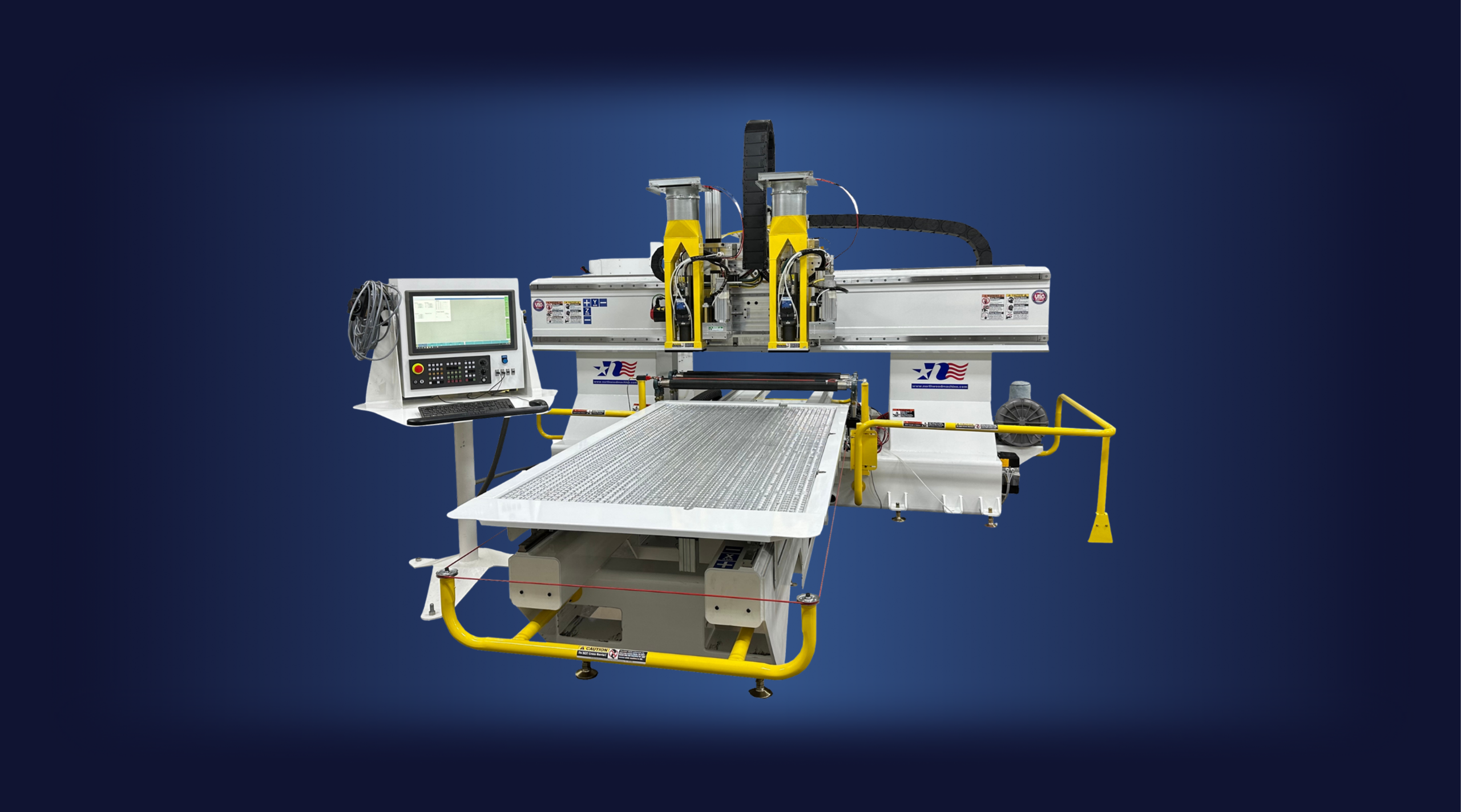

The Iron Horse Roller Hold Down is available as a single or twin table. The twin table configuration eliminates idle machine time by allowing loading and unloading on one table while the machine cuts parts on the other.
Both 4-foot rollers and 5-foot rollers are available.

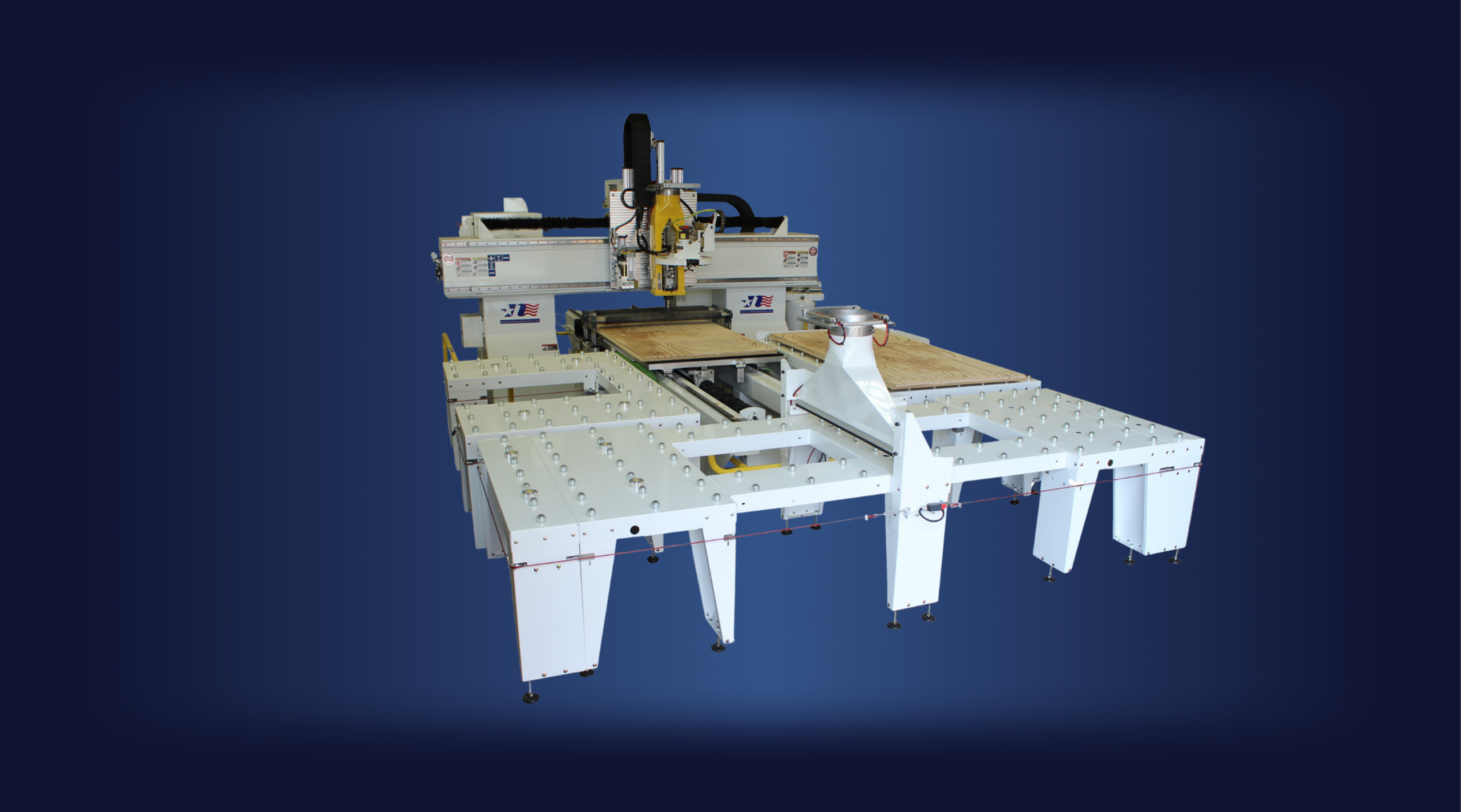

Add-ons include a 20-position automatic tool changer, sweepers with automated sweep cycles for dust management, a rollerball material handling system (also called a transfer system) and a 5-line or 9-line drill bank. Both drill banks are small enough to fit in our standard roller spacing and can carry different drill sizes without needing an automatic tool changer.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121
Table orientations
Single or twin (narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Y on multi-tool machines
Z-axis travel (inches)
14 (standard)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal)
Roller hold down
Quad (4) heavy duty steel roller hold down system
Automatic material management system
Loading, unloading, labeling
Manual material management system
Loading, unloading, labeling
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Optional features
Fencing, Keyence scanners, MQL, zipper ducts, barcode reader
Designed for plywood reel and plywood upholstery frame furniture manufacturers, the Iron Horse Roller Hold Down prioritizes speed. Because plywood is a lower grade material intended for mass production, rigid construction with premium components is crucial. The CNC machine uses both a vacuum and a roller assist to generate more downward force and achieve the fastest cutting rates in the industry.
The Iron Horse Roller Hold Down is available as a single or twin table. The twin table configuration eliminates idle machine time by allowing loading and unloading on one table while the machine cuts parts on the other.
Both 4-foot rollers and 5-foot rollers are available.
Add-ons include a 20-position automatic tool changer, sweepers with automated sweep cycles for dust management, a rollerball material handling system (also called a transfer system) and a 5-line or 9-line drill bank. Both drill banks are small enough to fit in our standard roller spacing and can carry different drill sizes without needing an automatic tool changer.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121
Table orientations
Single or twin (narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Y on multi-tool machines
Z-axis travel (inches)
14 (standard)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal)
Roller hold down
Quad (4) heavy duty steel roller hold down system
Automatic material management system
Loading, unloading, labeling
Manual material management system
Loading, unloading, labeling
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Optional features
Fencing, Keyence scanners, MQL, zipper ducts, barcode reader
Designed for plywood reel and plywood upholstery frame furniture manufacturers, the Iron Horse Roller Hold Down prioritizes speed. Because plywood is a lower grade material intended for mass production, rigid construction with premium components is crucial. The CNC machine uses both a vacuum and a roller assist to generate more downward force and achieve the fastest cutting rates in the industry.
The Iron Horse Roller Hold Down is available as a single or twin table. The twin table configuration eliminates idle machine time by allowing loading and unloading on one table while the machine cuts parts on the other.
Both 4-foot rollers and 5-foot rollers are available.
Add-ons include a 20-position automatic tool changer, sweepers with automated sweep cycles for dust management, a rollerball material handling system (also called a transfer system) and a 5-line or 9-line drill bank. Both drill banks are small enough to fit in our standard roller spacing and can carry different drill sizes without needing an automatic tool changer.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121
Table orientations
Single or twin (narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Y on multi-tool machines
Z-axis travel (inches)
14 (standard)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal)
Roller hold down
Quad (4) heavy duty steel roller hold down system
Automatic material management system
Loading, unloading, labeling
Manual material management system
Loading, unloading, labeling
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Optional features
Fencing, Keyence scanners, MQL, zipper ducts, barcode reader
Designed for plywood reel and plywood upholstery frame furniture manufacturers, the Iron Horse Roller Hold Down prioritizes speed. Because plywood is a lower grade material intended for mass production, rigid construction with premium components is crucial. The CNC machine uses both a vacuum and a roller assist to generate more downward force and achieve the fastest cutting rates in the industry.
The Iron Horse Roller Hold Down is available as a single or twin table. The twin table configuration eliminates idle machine time by allowing loading and unloading on one table while the machine cuts parts on the other.
Both 4-foot rollers and 5-foot rollers are available.
Add-ons include a 20-position automatic tool changer, sweepers with automated sweep cycles for dust management, a rollerball material handling system (also called a transfer system) and a 5-line or 9-line drill bank. Both drill banks are small enough to fit in our standard roller spacing and can carry different drill sizes without needing an automatic tool changer.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
49 x 97, 61 x 121
Table orientations
Single or twin (narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Y on multi-tool machines
Z-axis travel (inches)
14 (standard)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal)
Roller hold down
Quad (4) heavy duty steel roller hold down system
Automatic material management system
Loading, unloading, labeling
Manual material management system
Loading, unloading, labeling
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Optional features
Fencing, Keyence scanners, MQL, zipper ducts, barcode reader
