Iron Horse Multi Tool
The Iron Horse Multi Tool is a three-axis multi-head CNC machining center. It has one tooling plate but can accommodate multiple tools at a time to handle a variety of complex, precise operations.

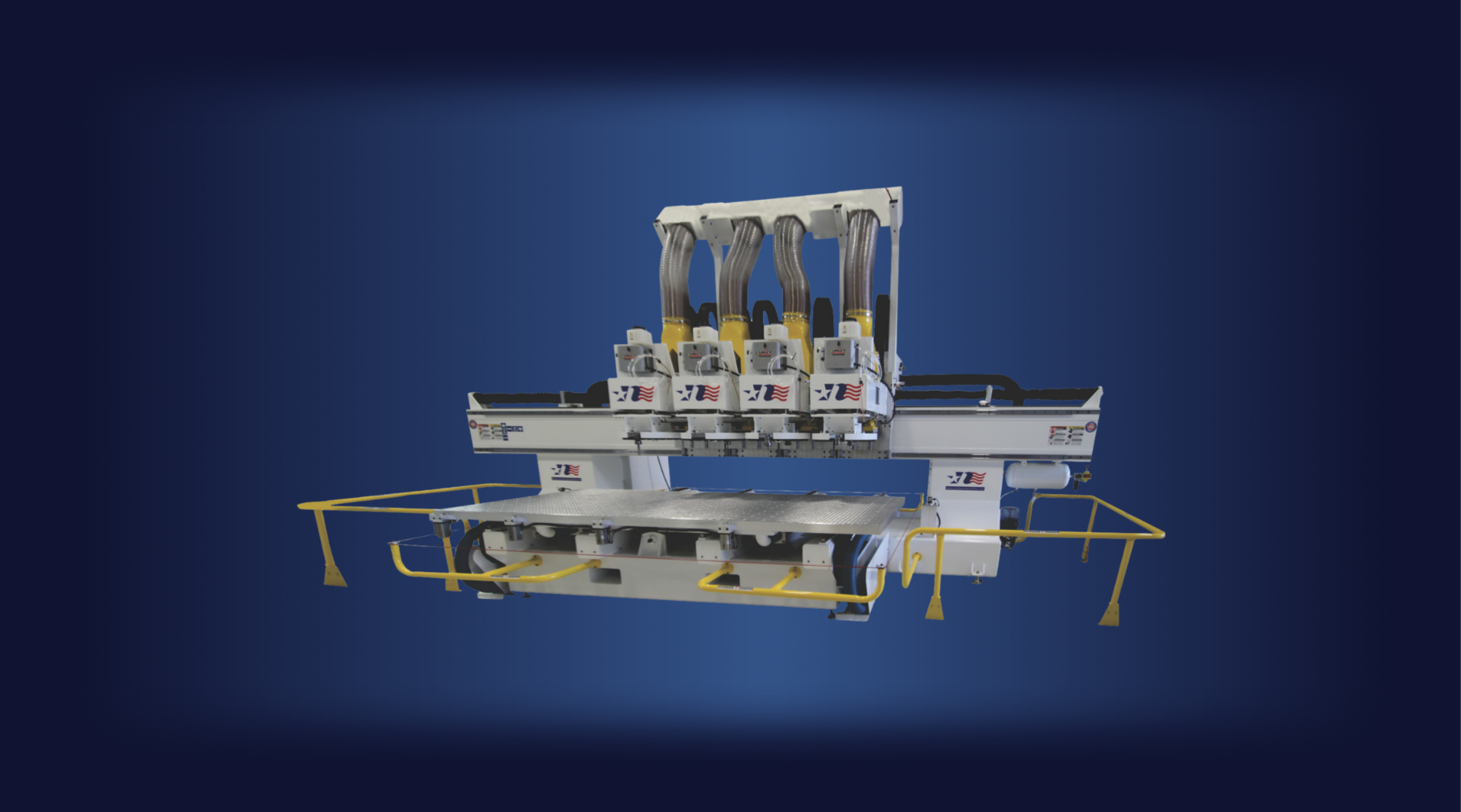

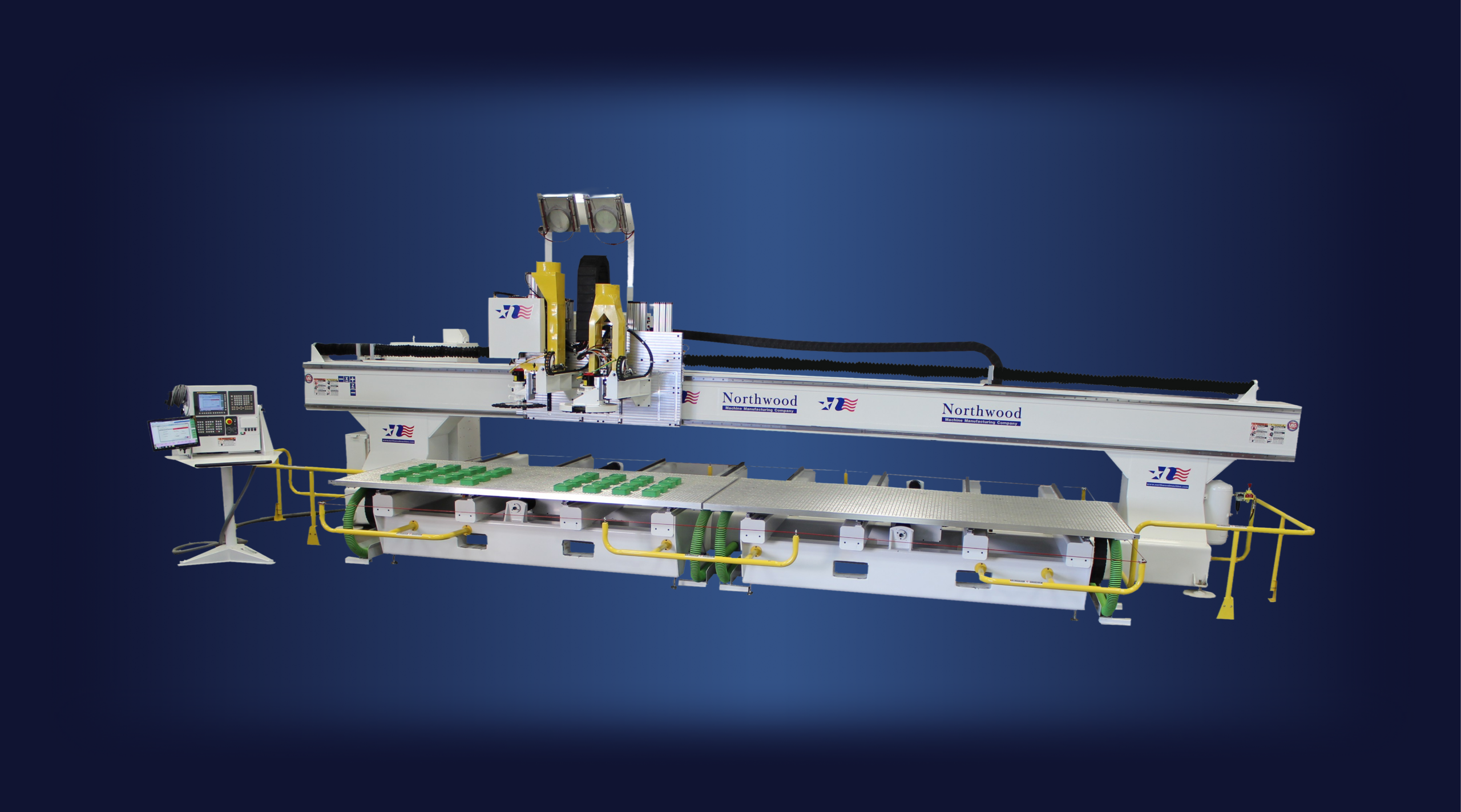

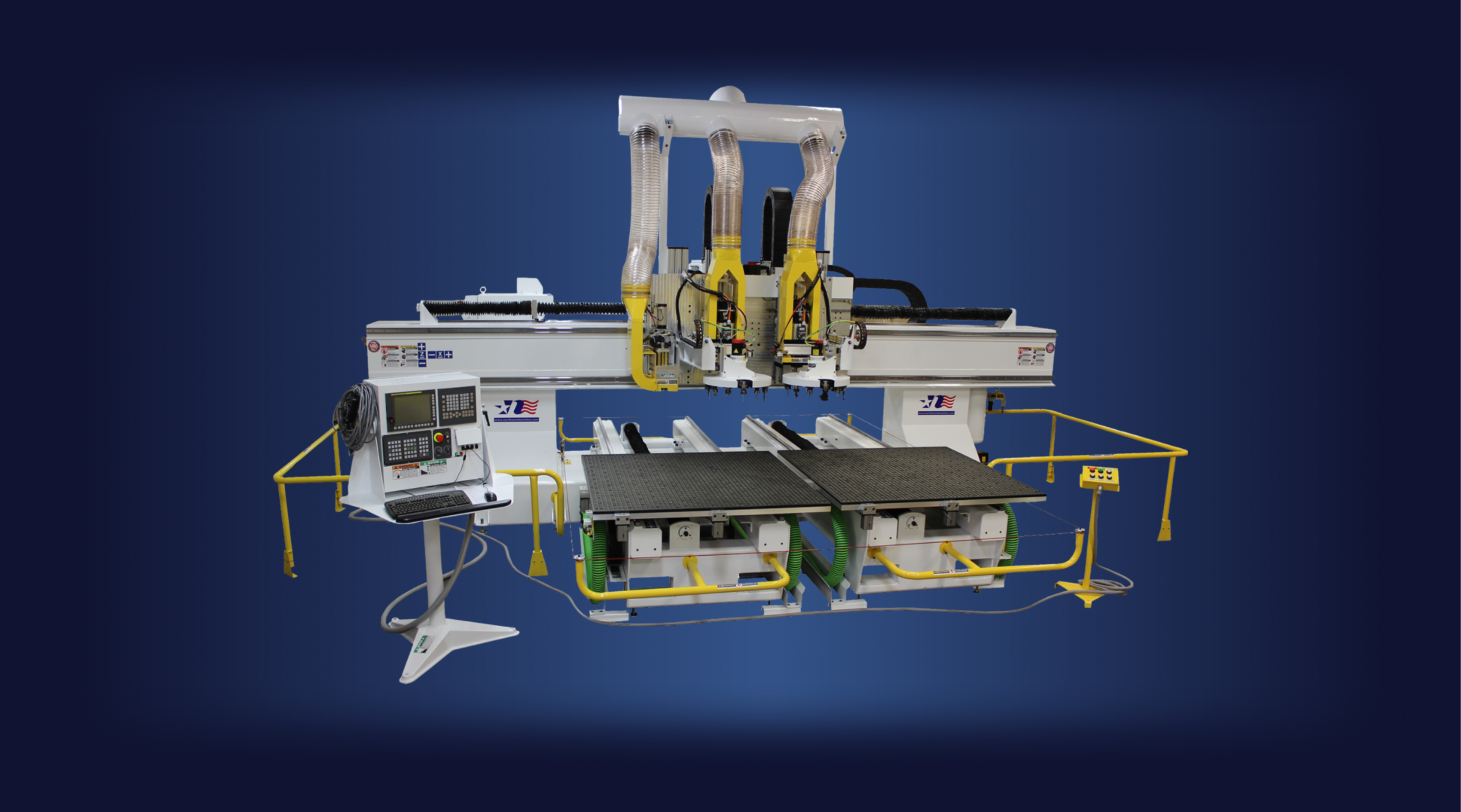

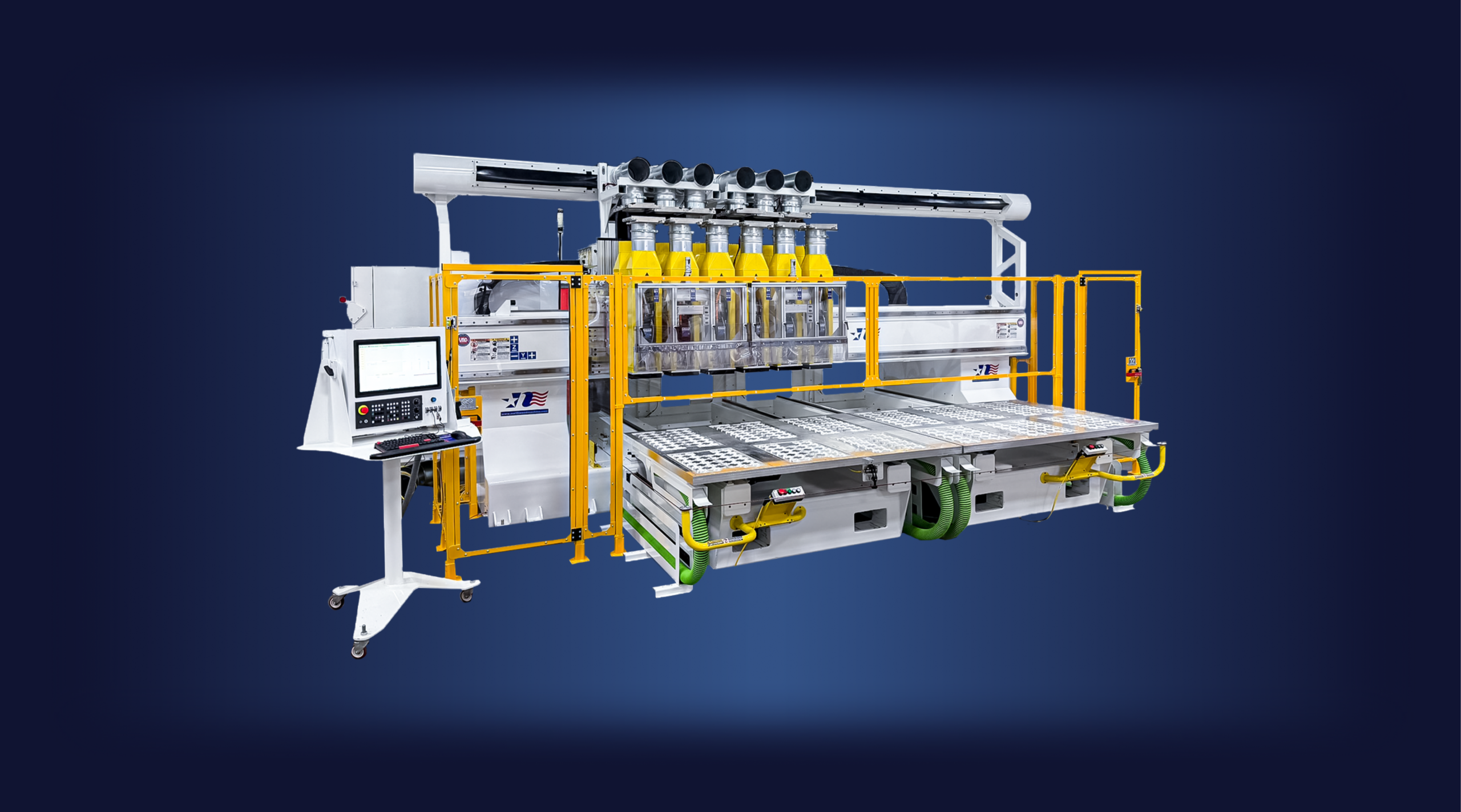

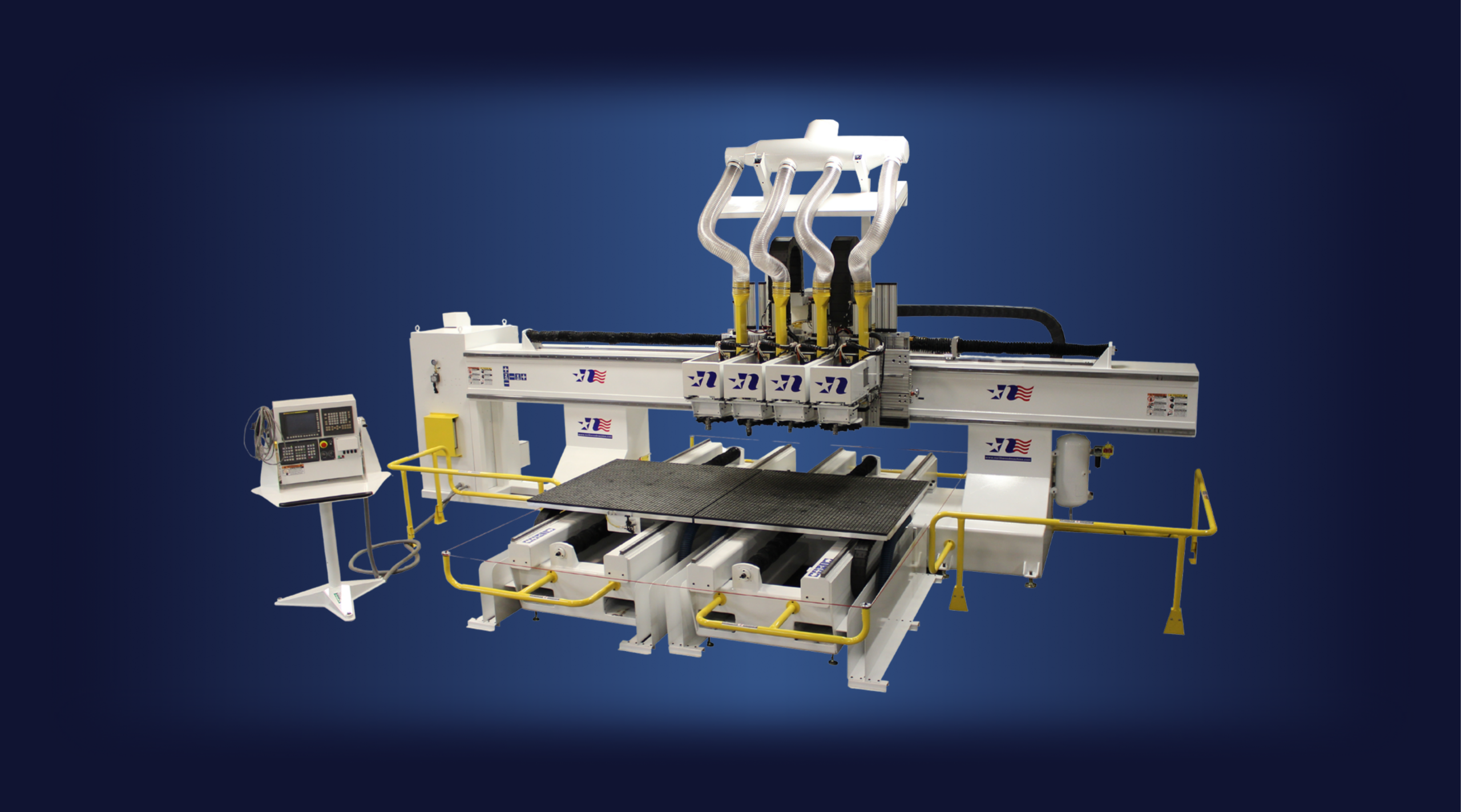

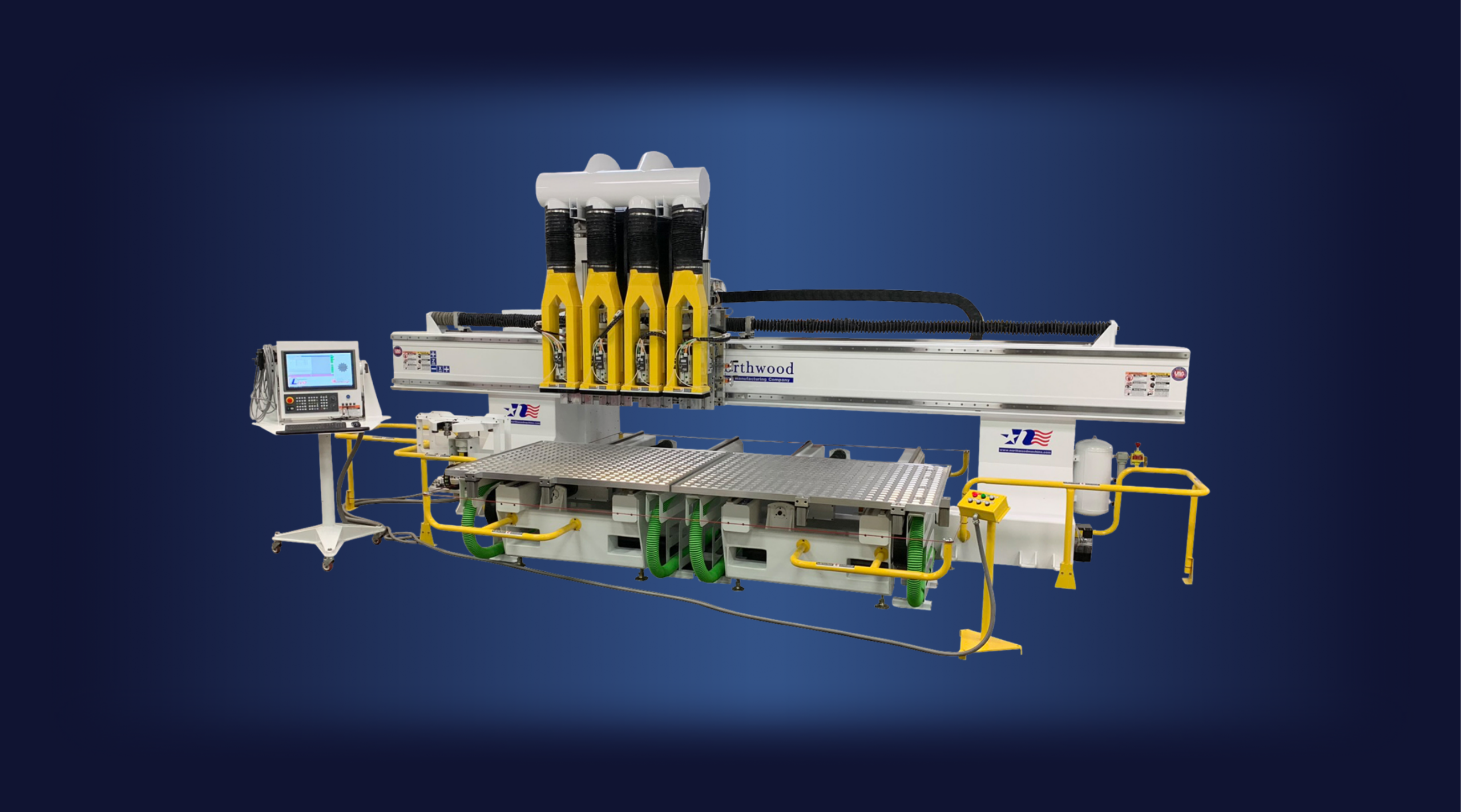

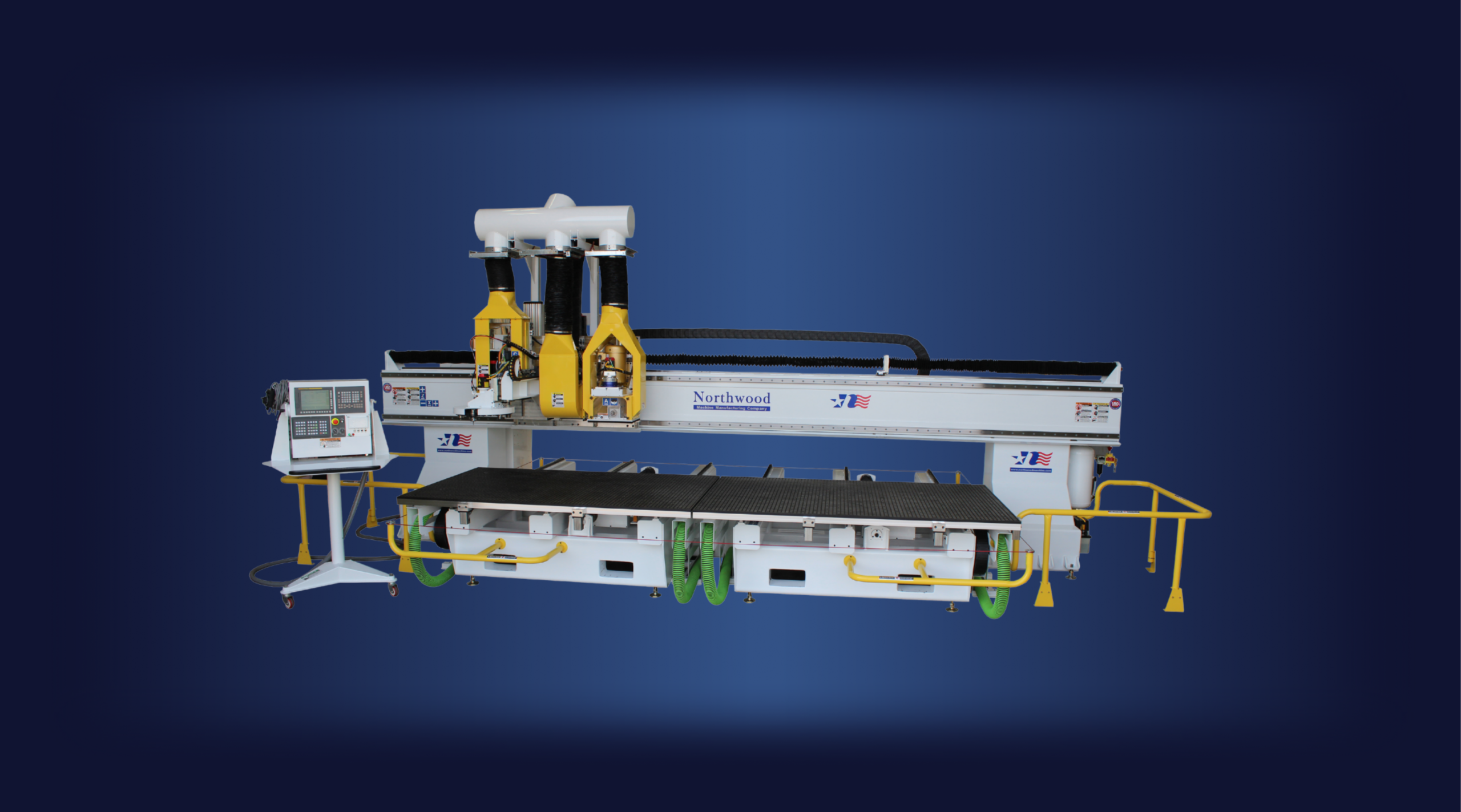

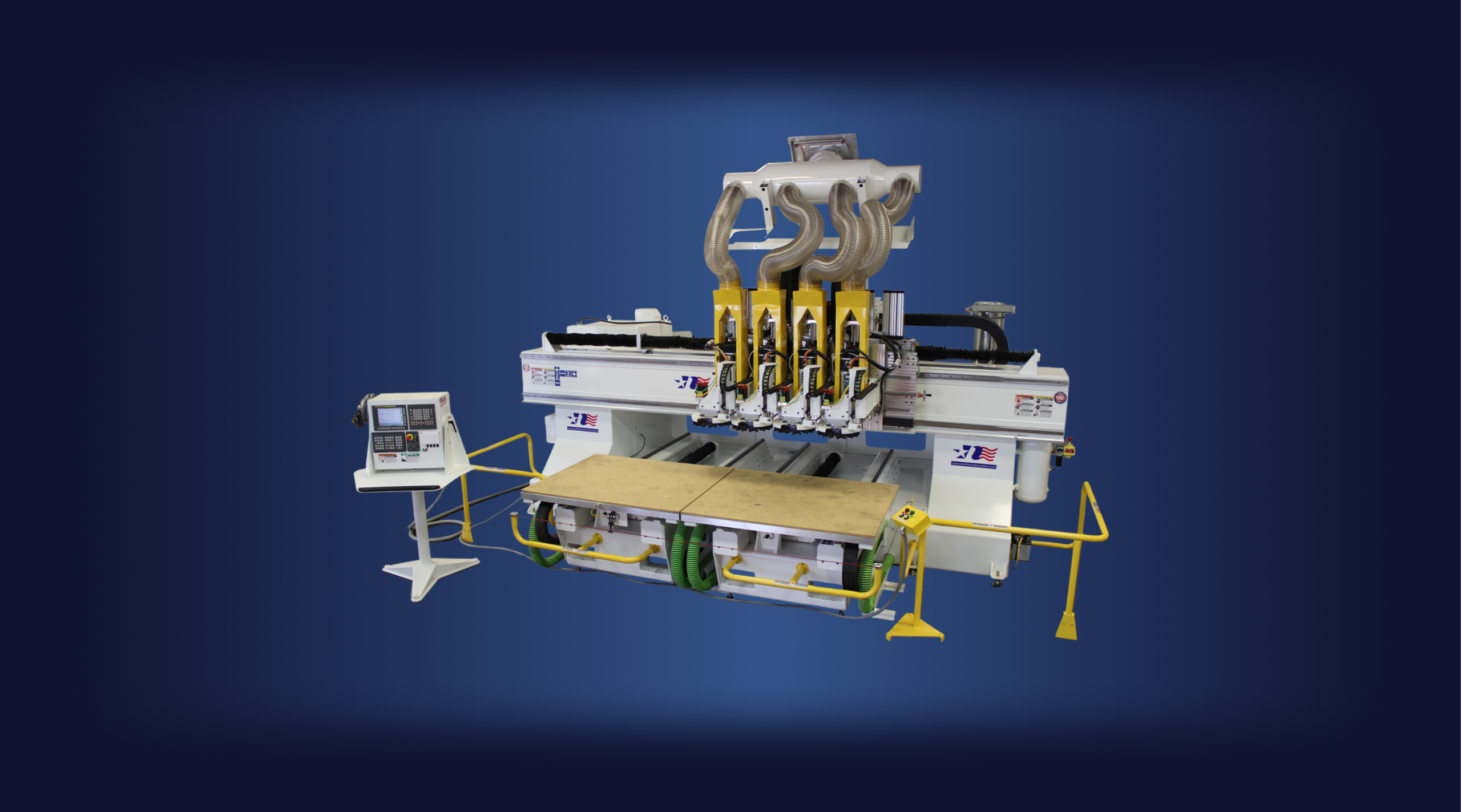

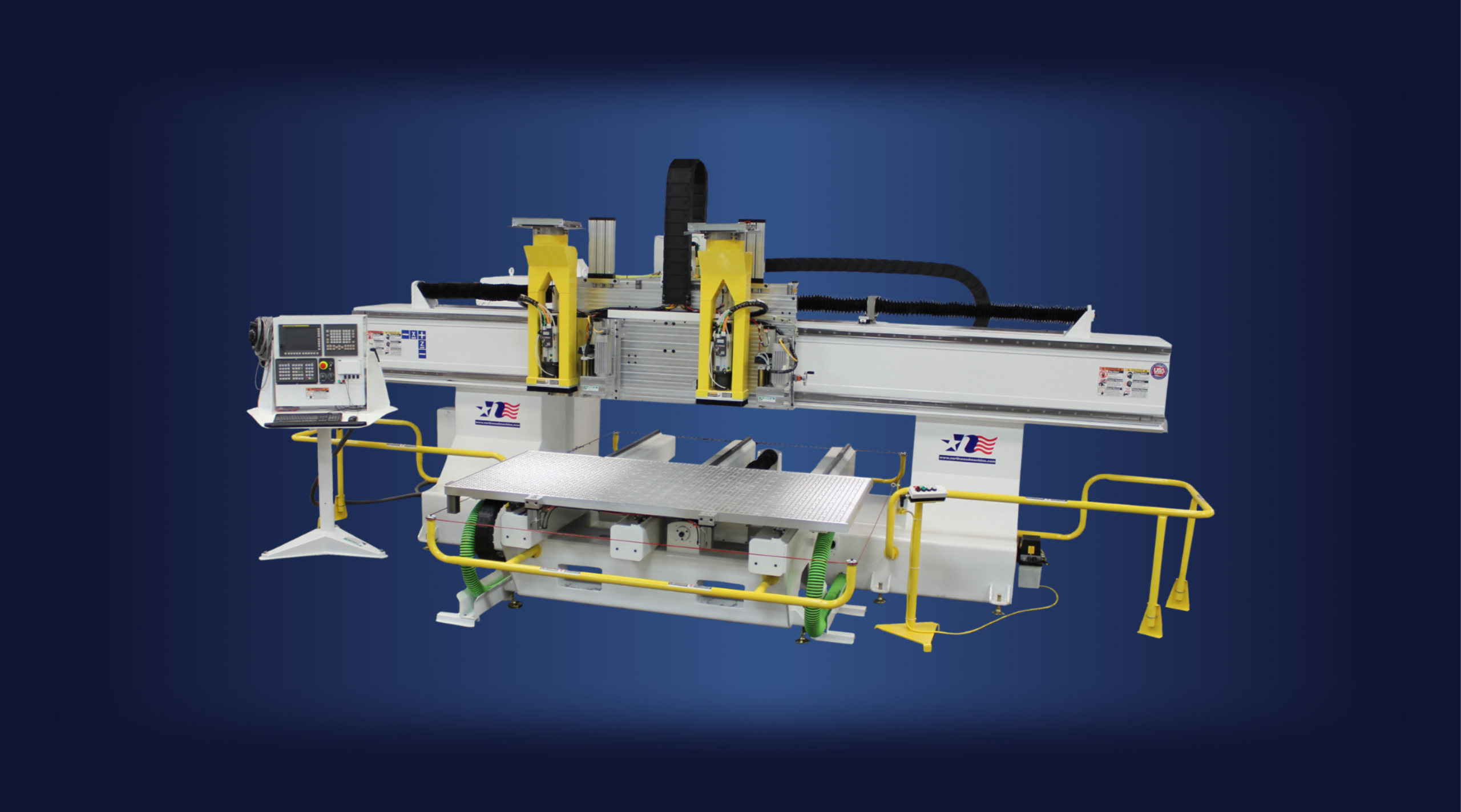

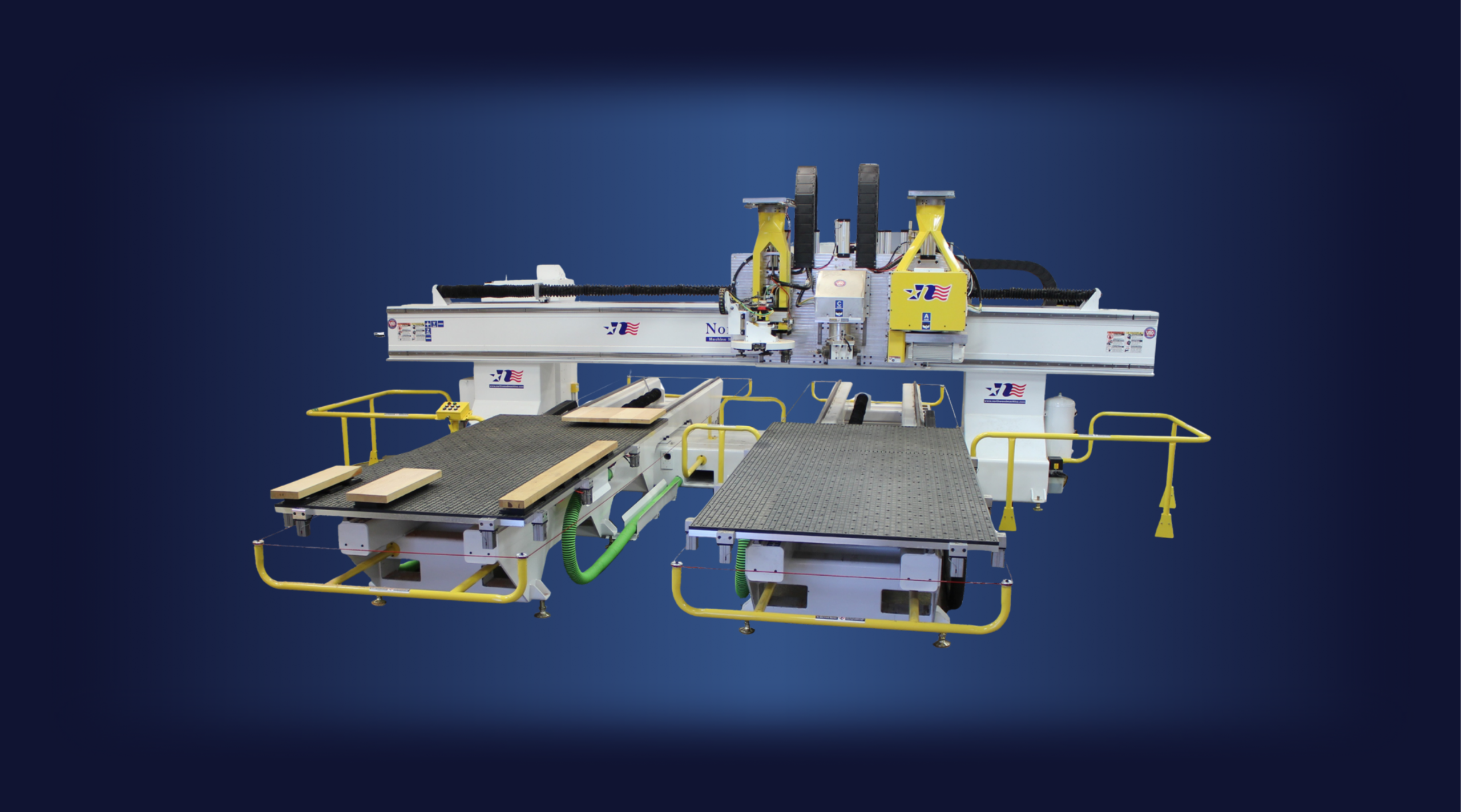

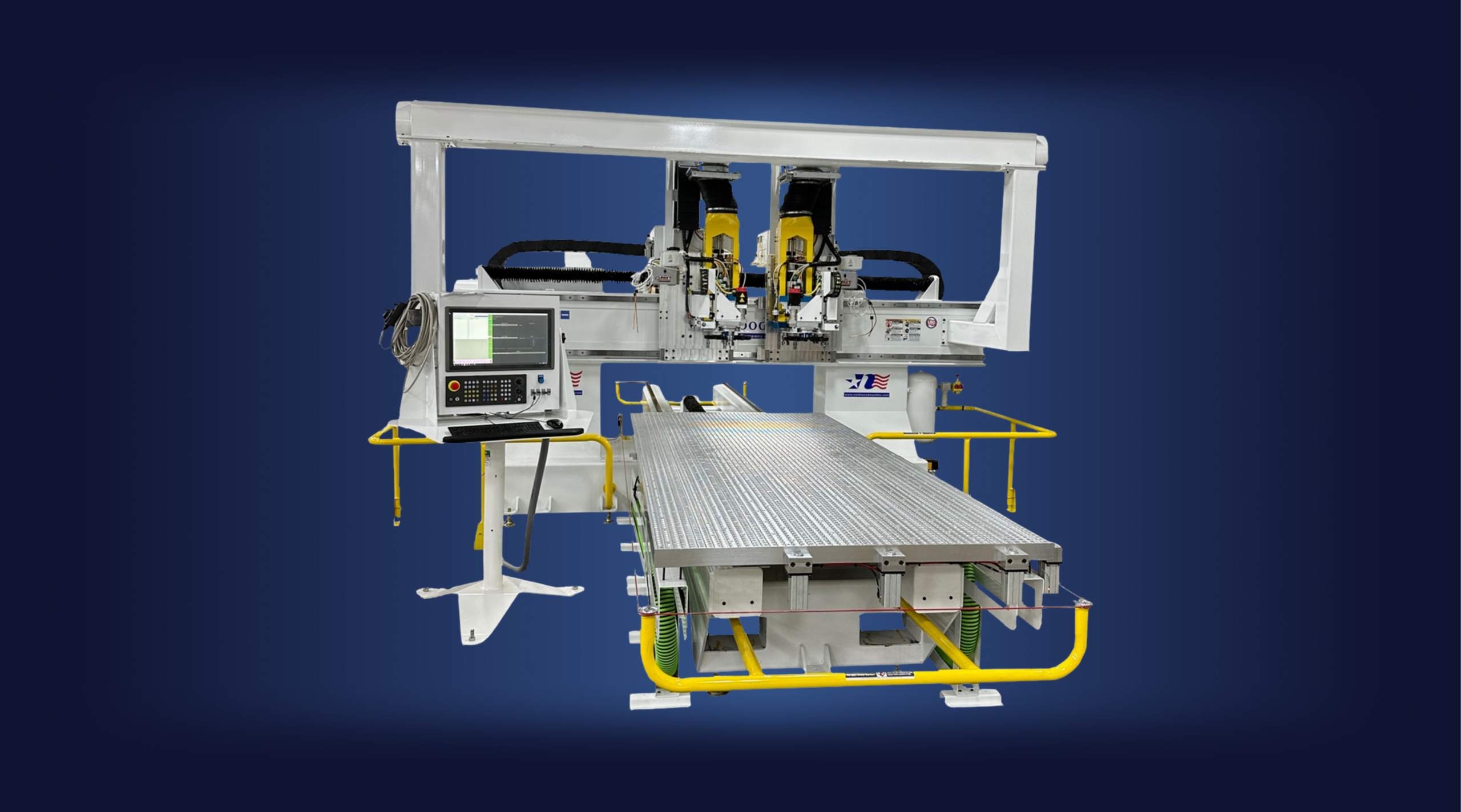

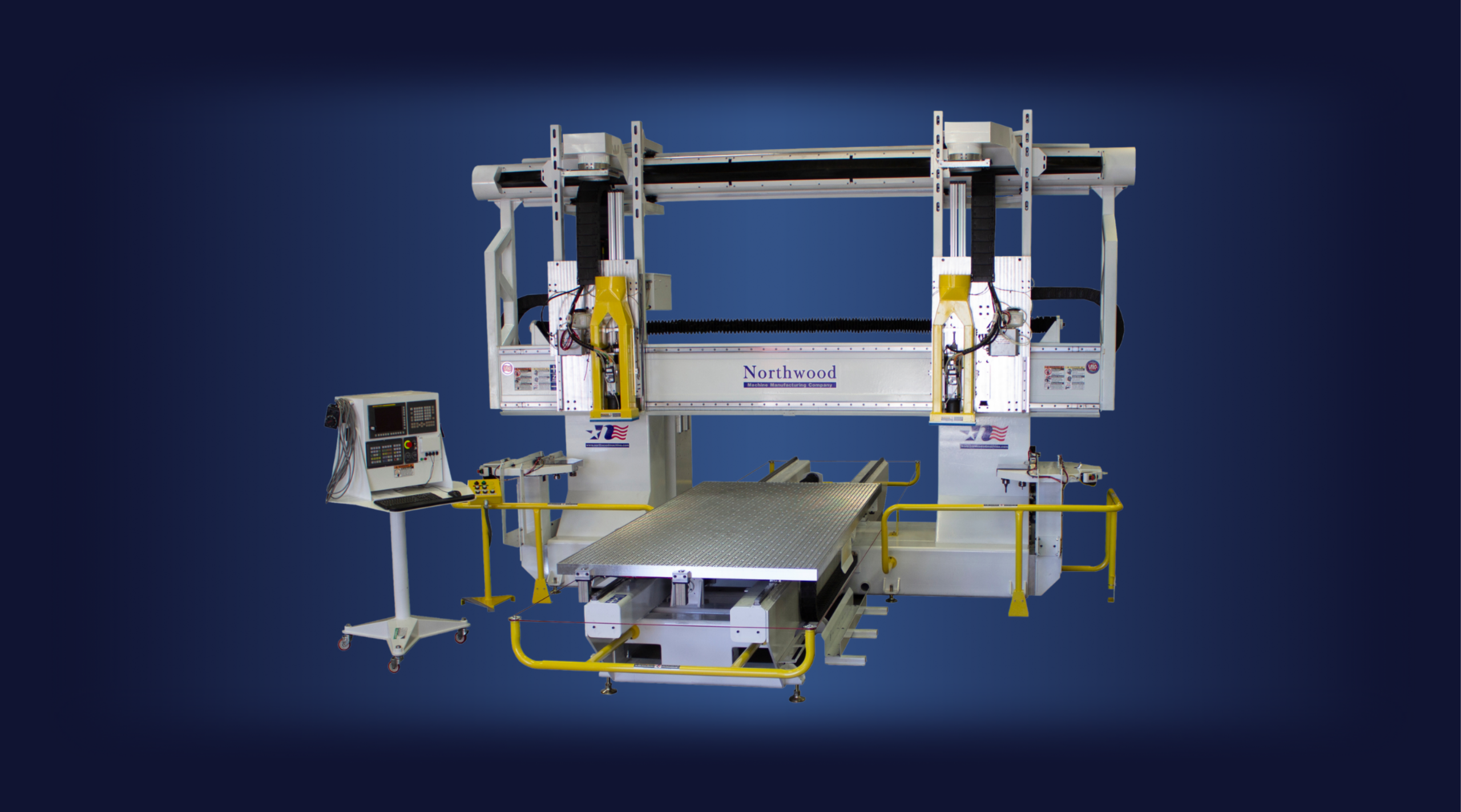

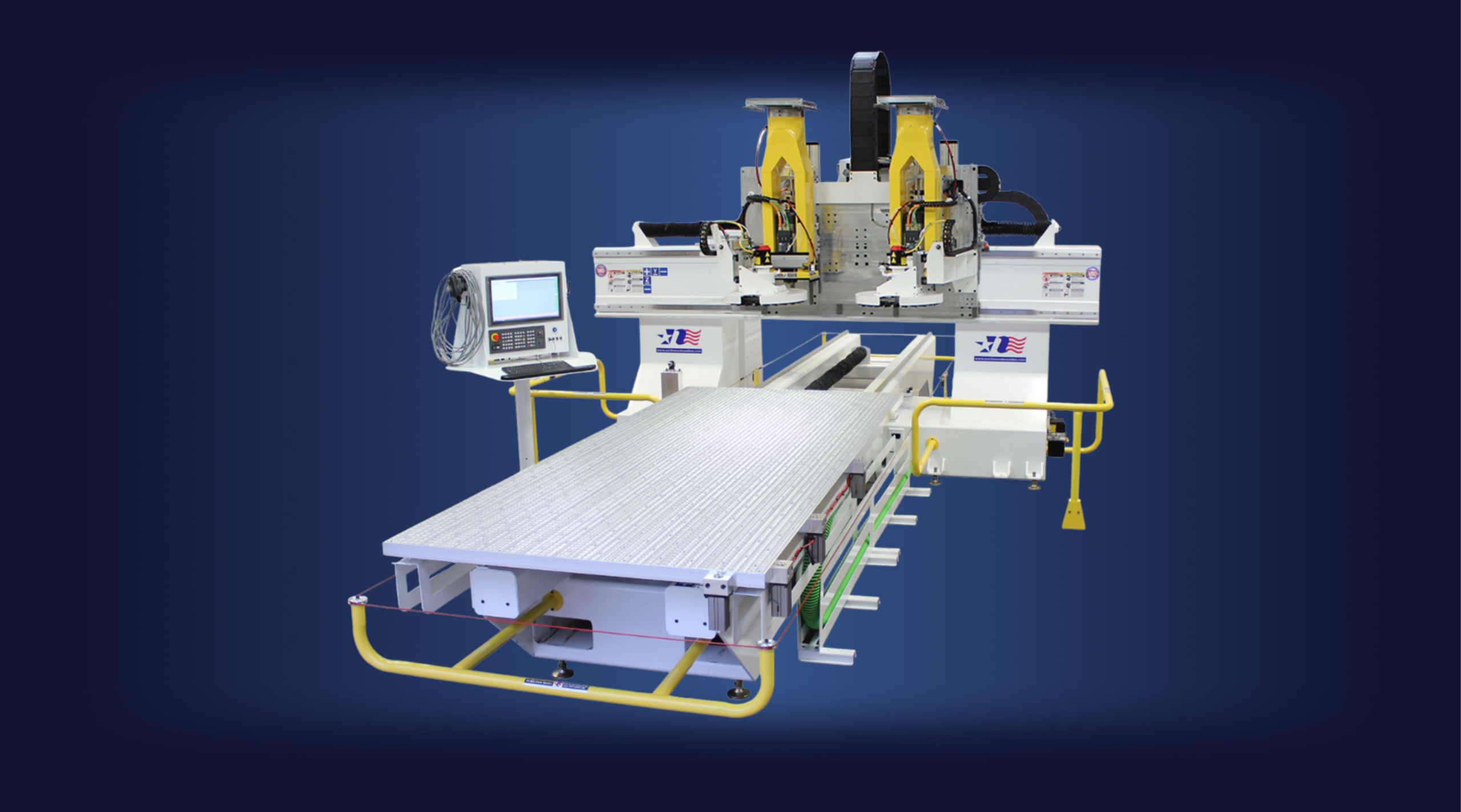

Process complex parts and reach your throughput goals with the Iron Horse Multi Tool. Available with single or twin tables, this CNC machine completes one operation at a time on a single tool plate that can hold multiple tools. Save space with a more compact wide table orientation, or enjoy easier access to your working surface with a narrow layout.
Tooling options includes 24 hp liquid-cooled spindles, routers, motors, large vertical drills (5-line, 21-line, 35-line) and single vertical drills. For solid surface or architectural millwork applications, we also have molder heads and 360-degree programmable saws for v-grooving.
You can also combine tooling for more advanced processes. We have engineered Iron Horse Multi Tools with 12 spindles; four spindles and four tool changers; and a spindle, tool changer, drill and 5-axis saw. When the machine features the correct tooling, you manufacture more parts, faster. And that increases your return on investment.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)

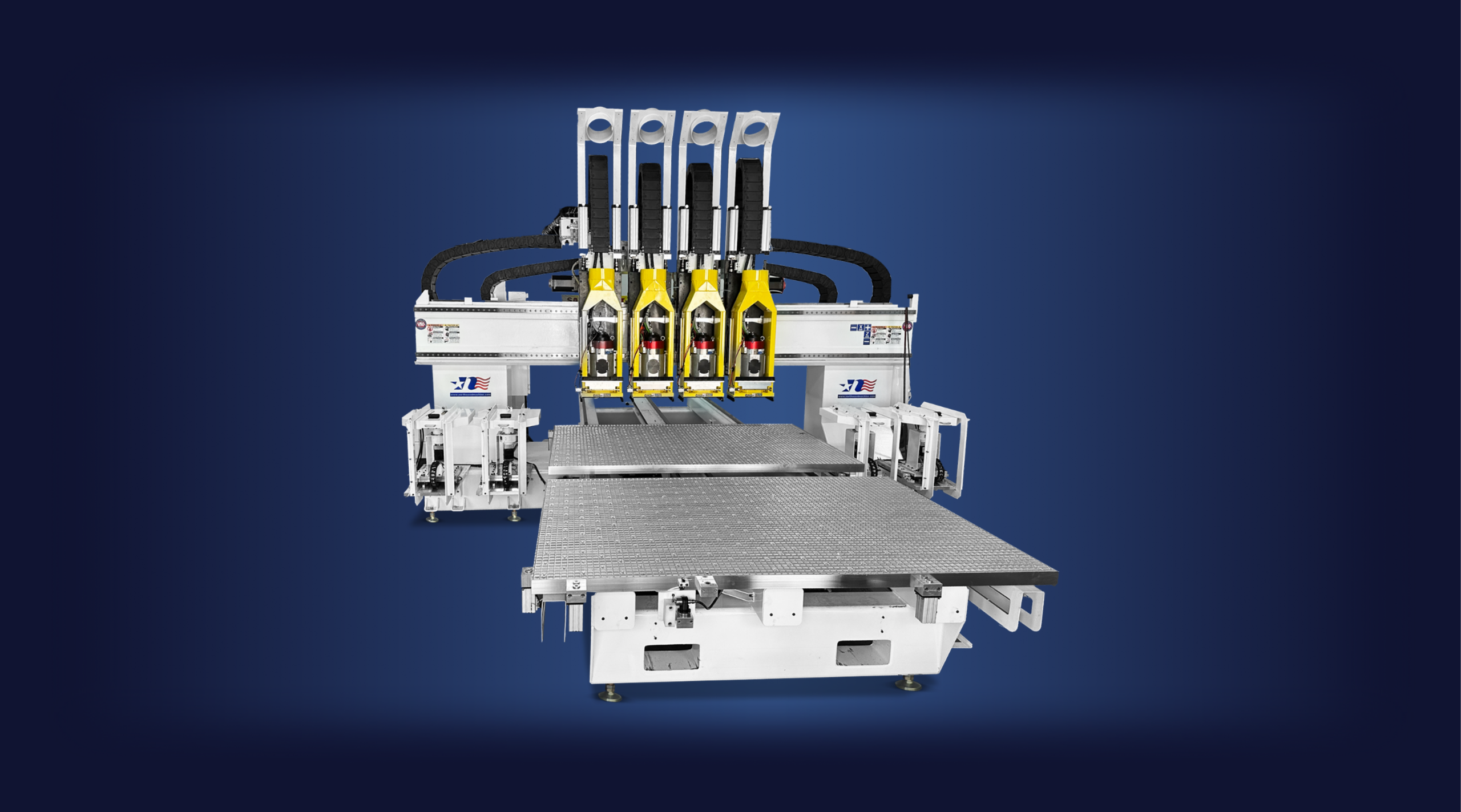

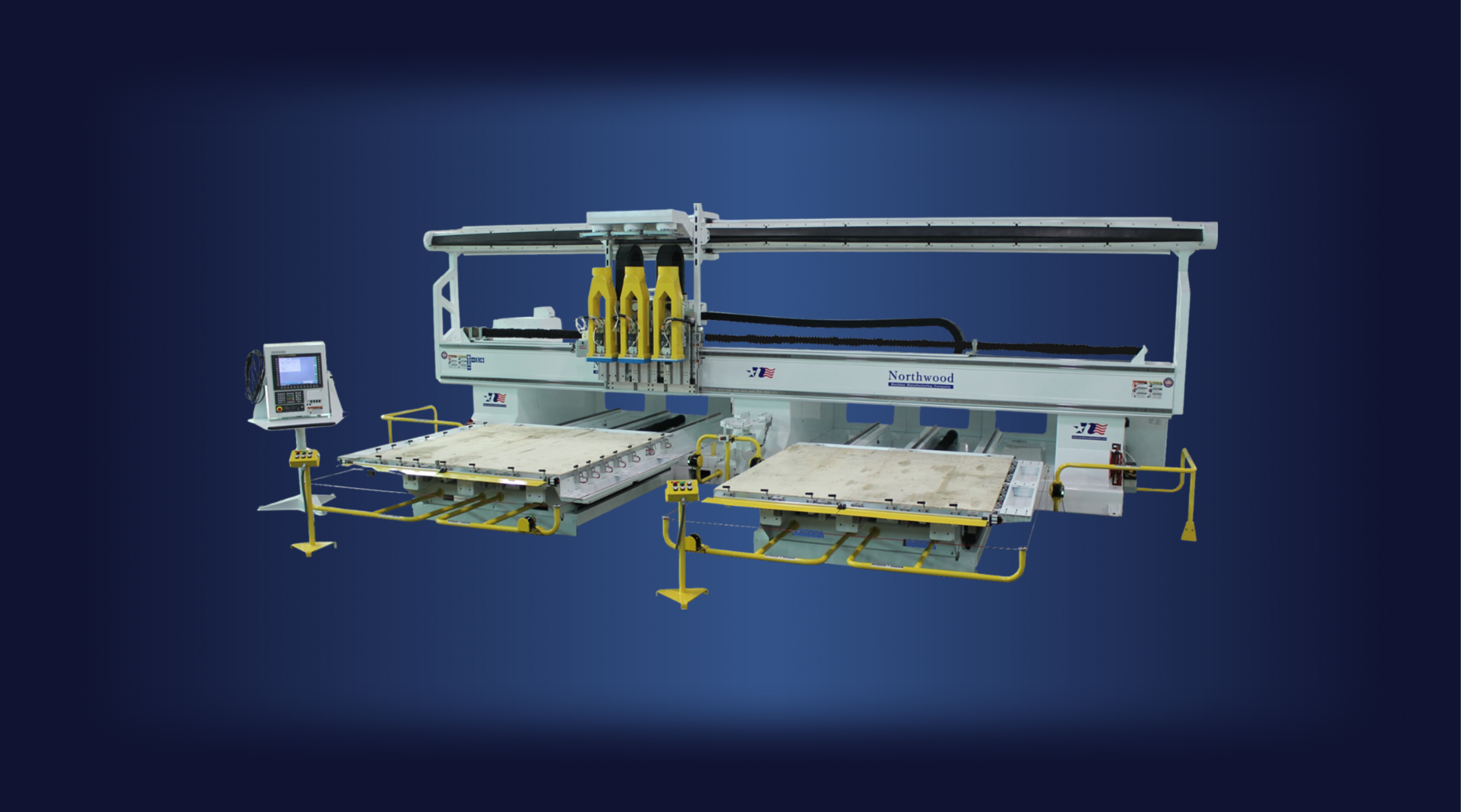

49 x 97, 61 x 121, 61 x 145, custom
Table orientations

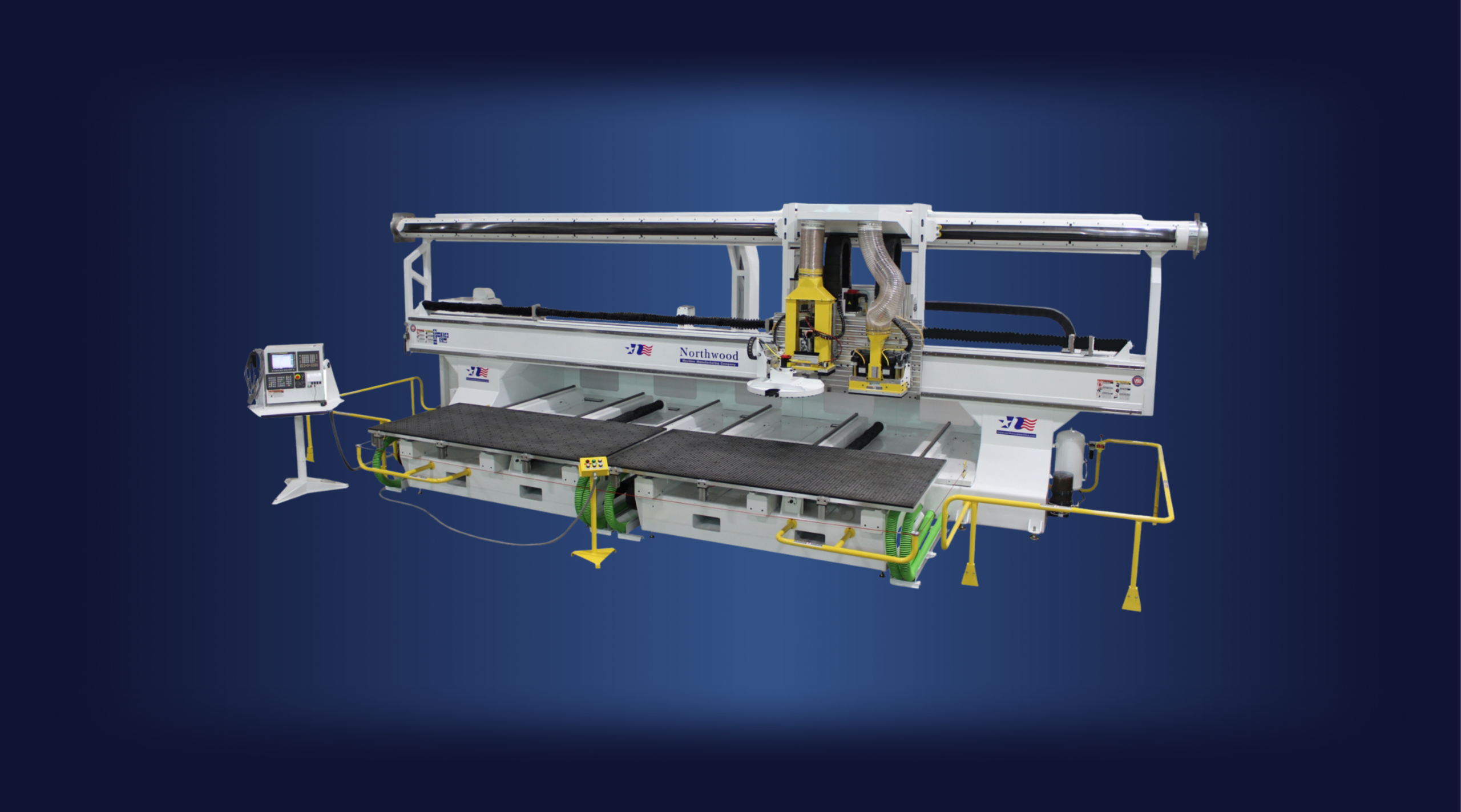

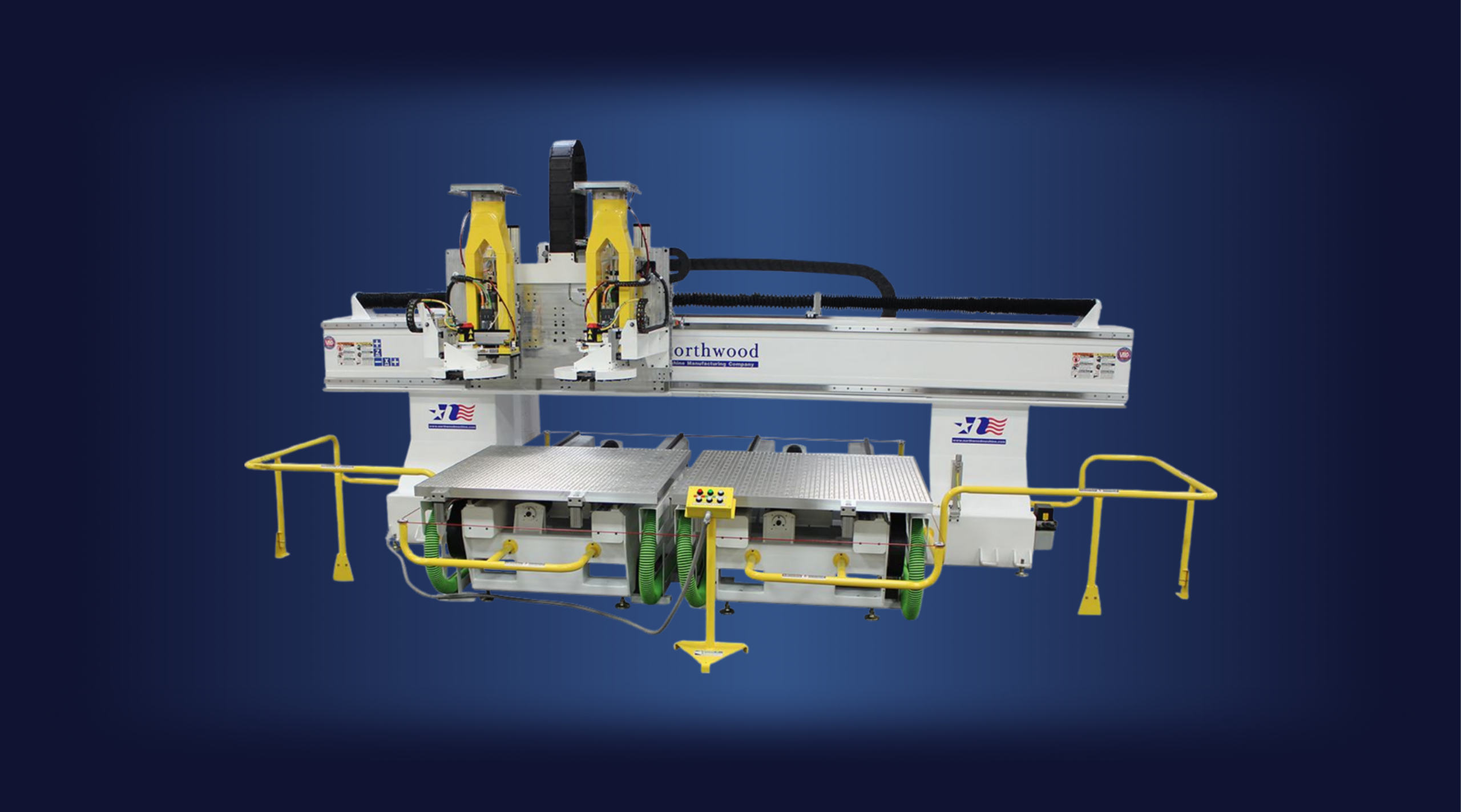

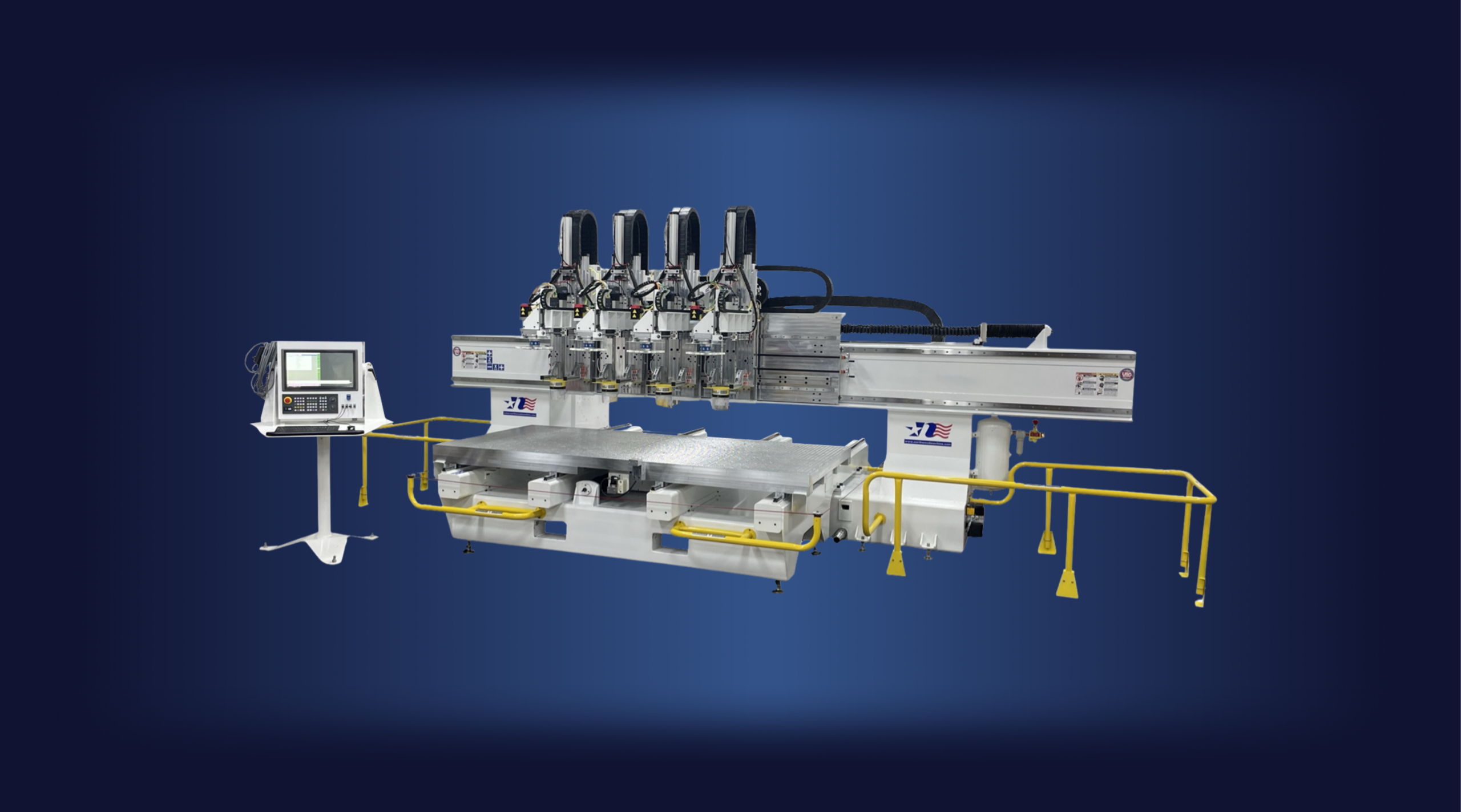

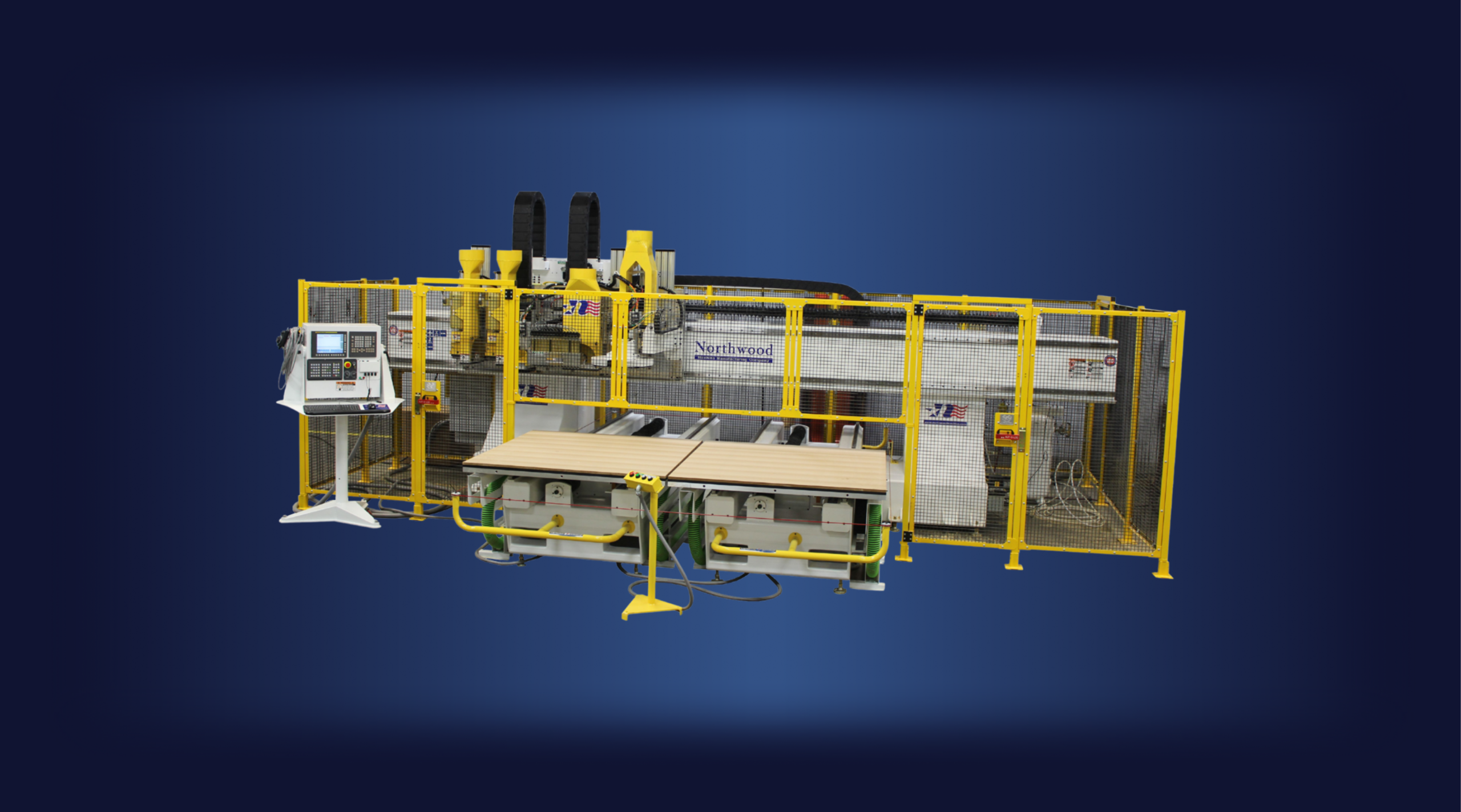

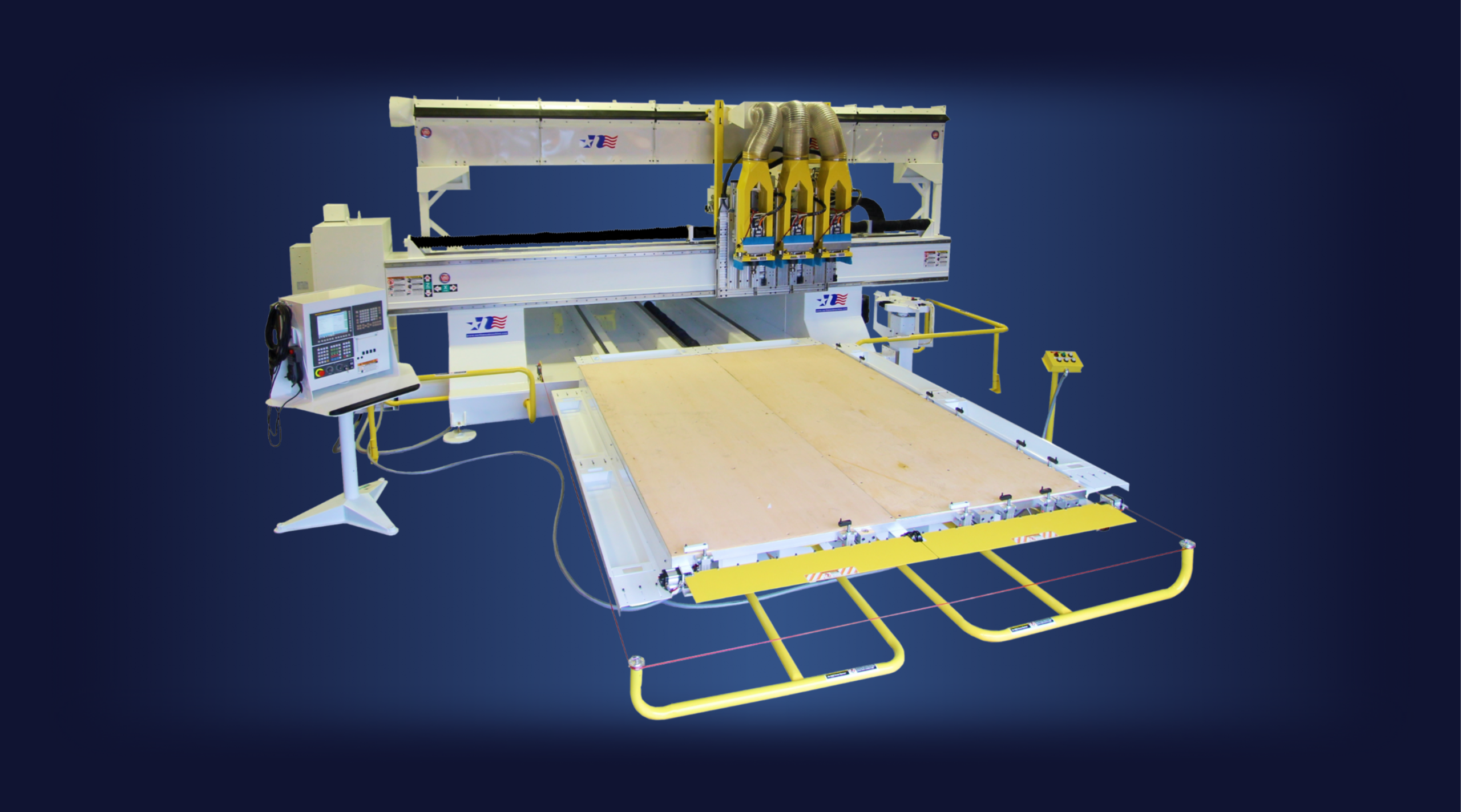

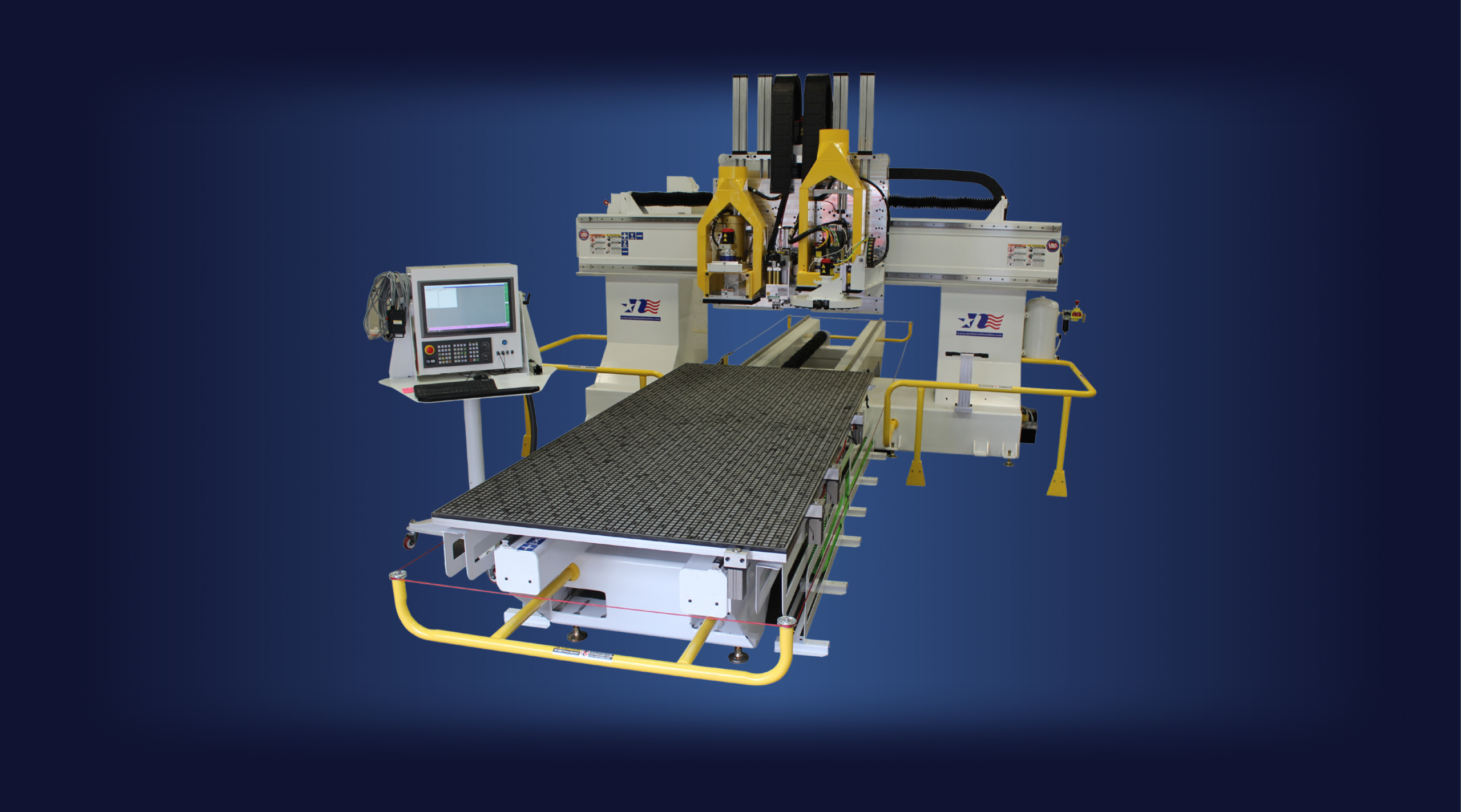

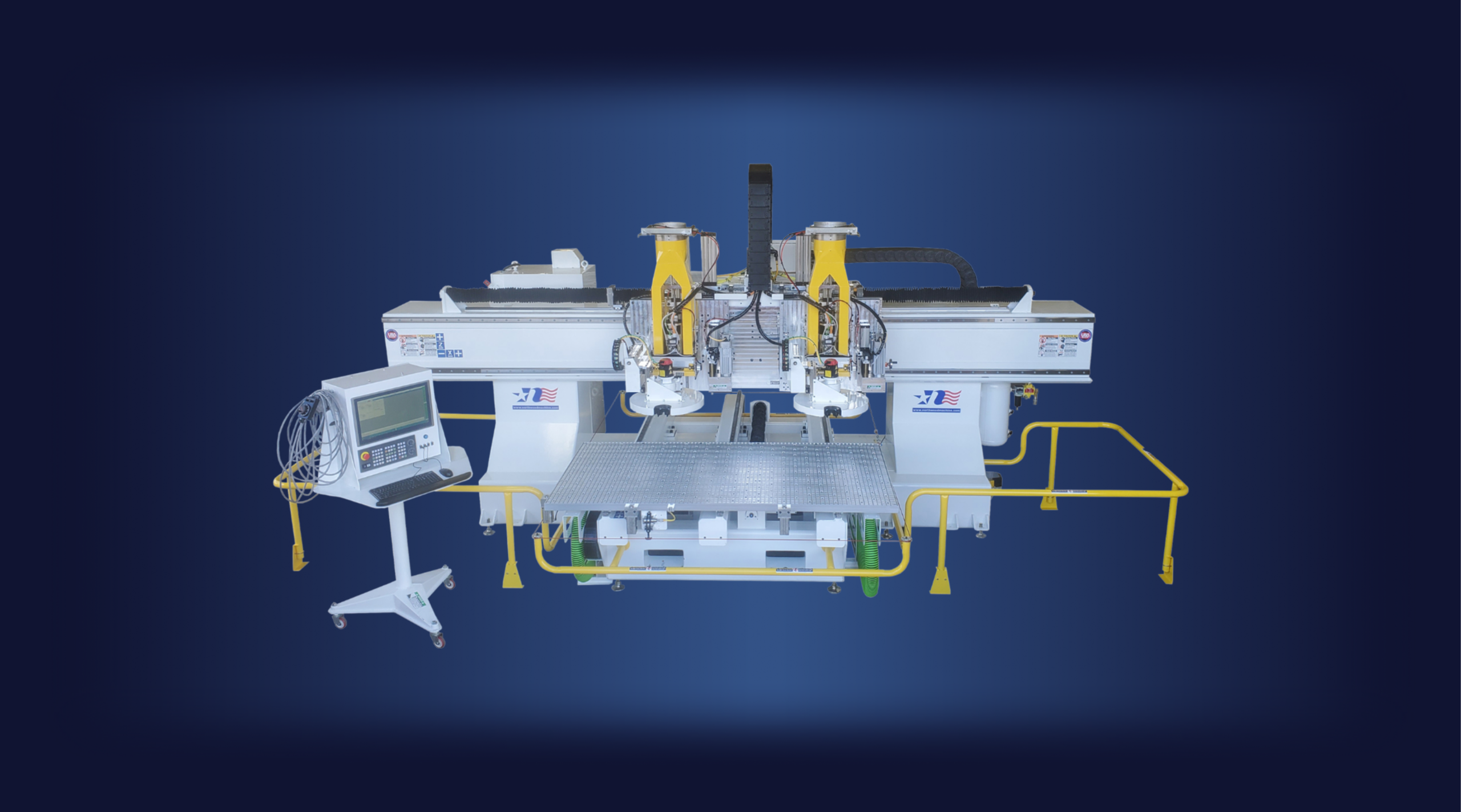

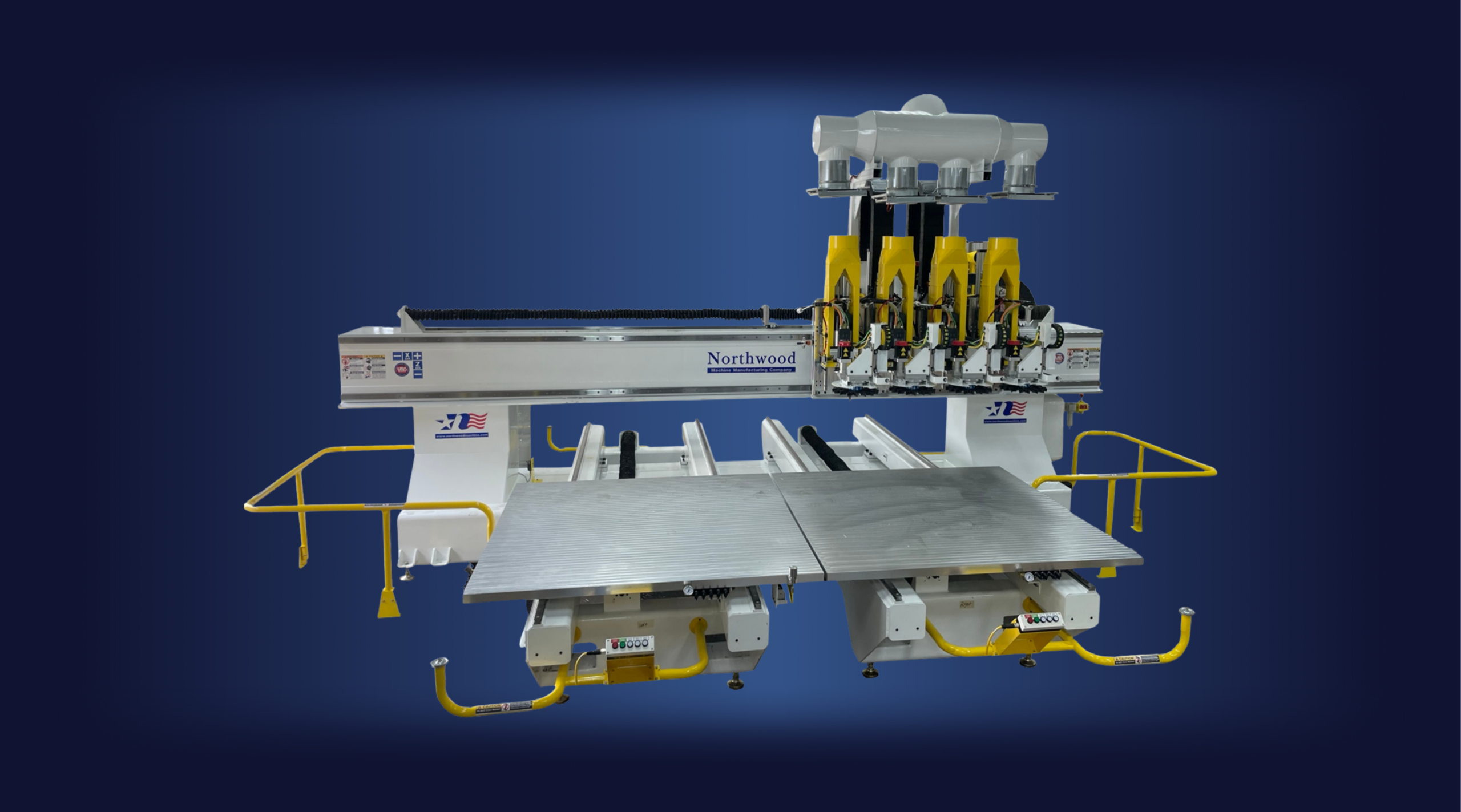

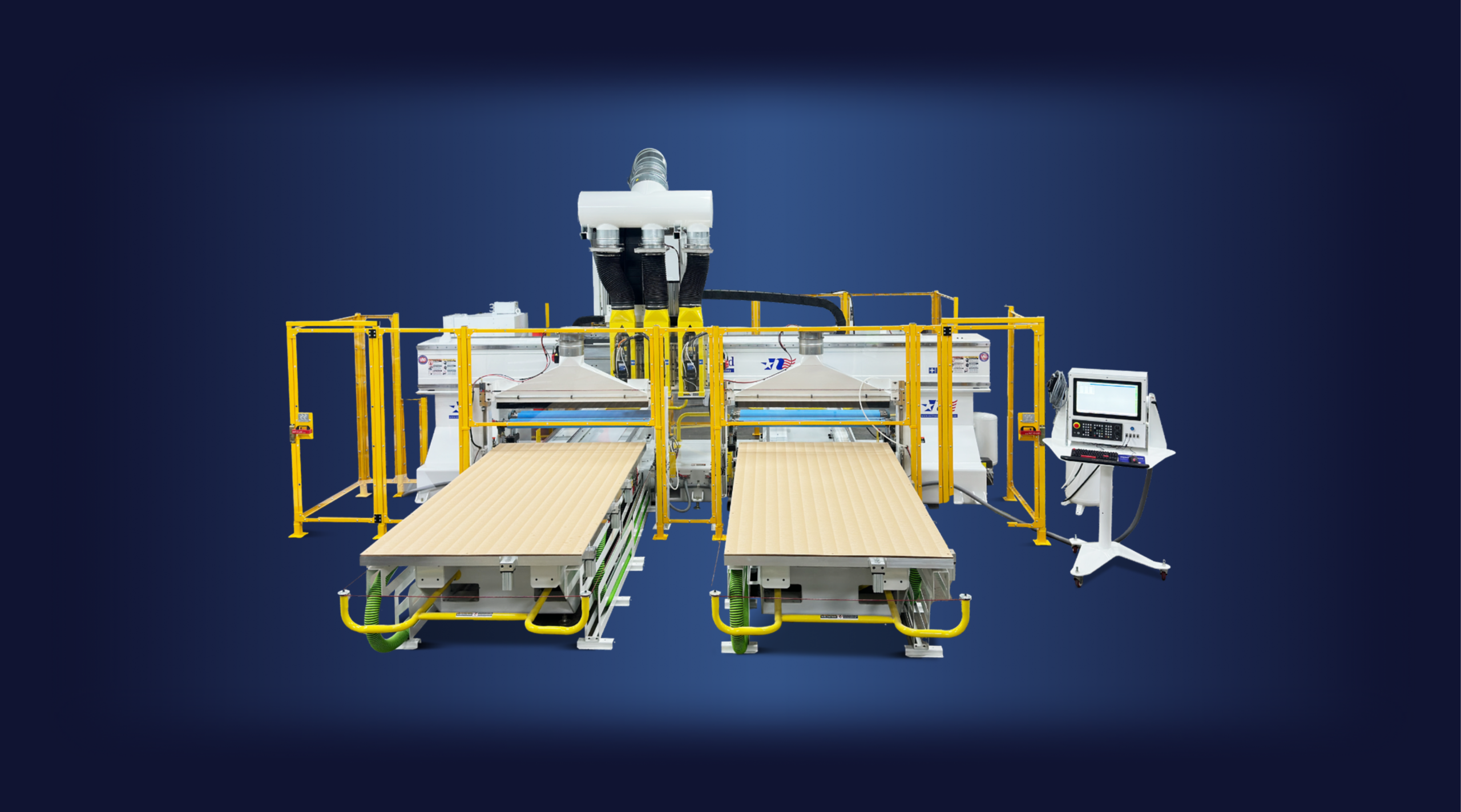

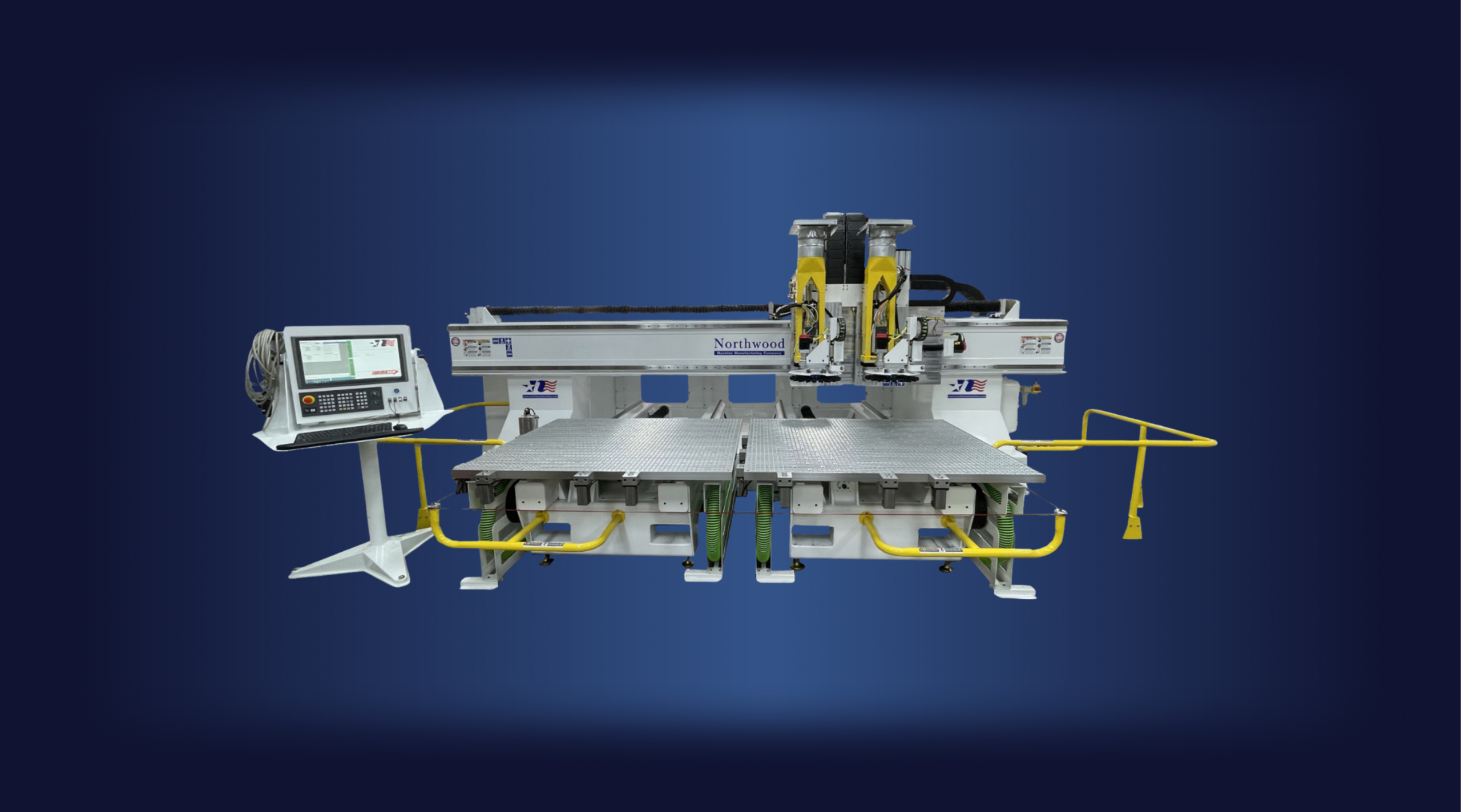

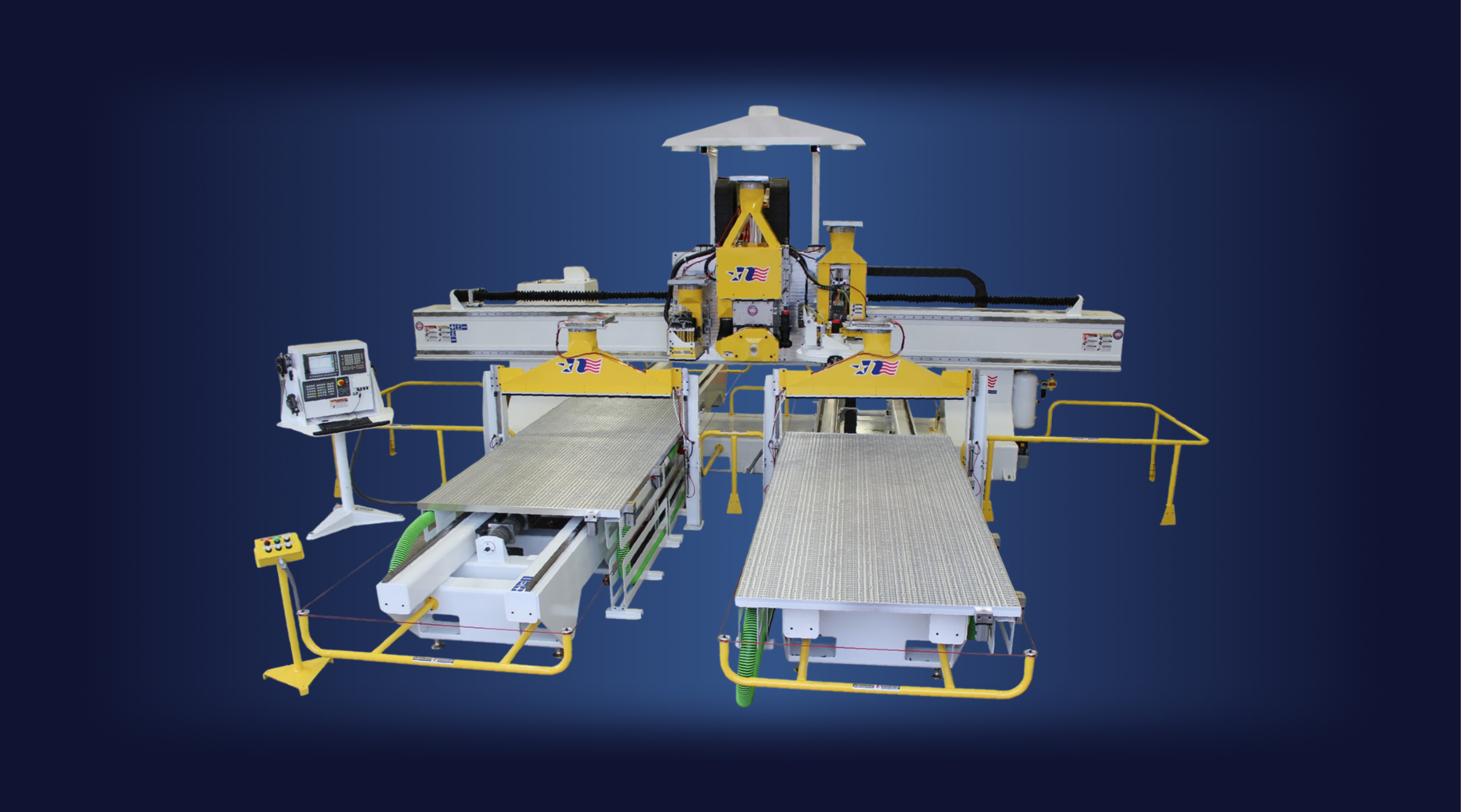

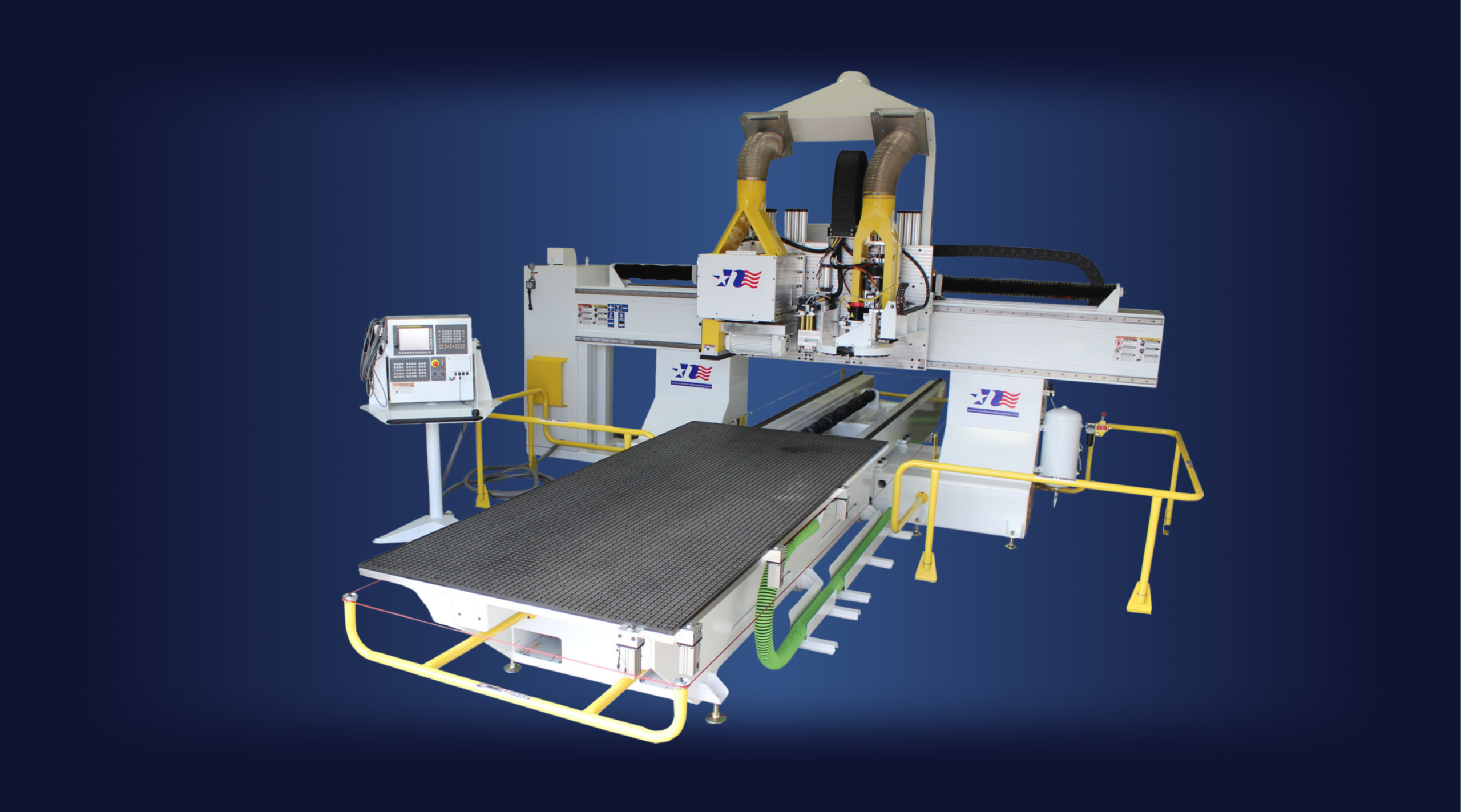

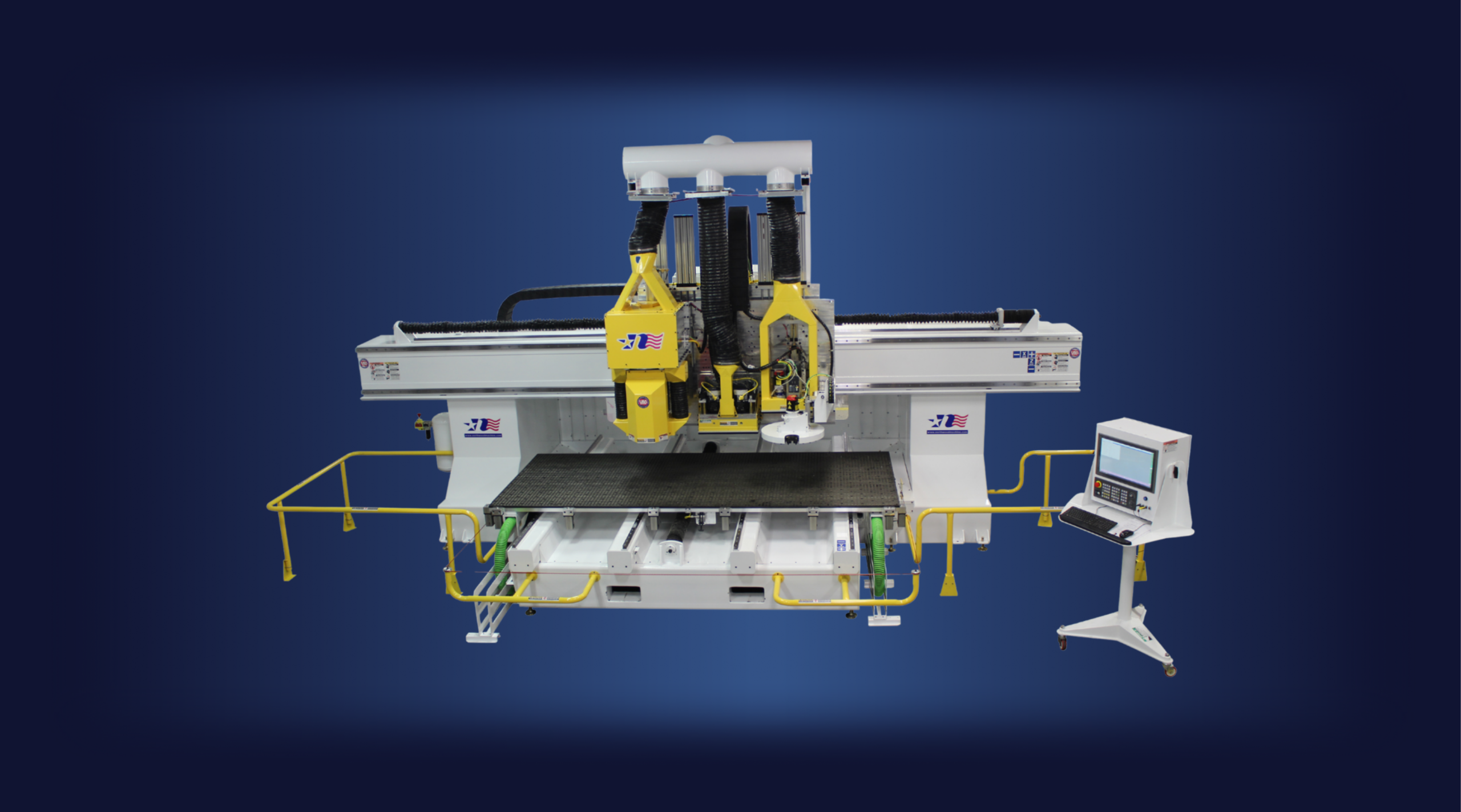

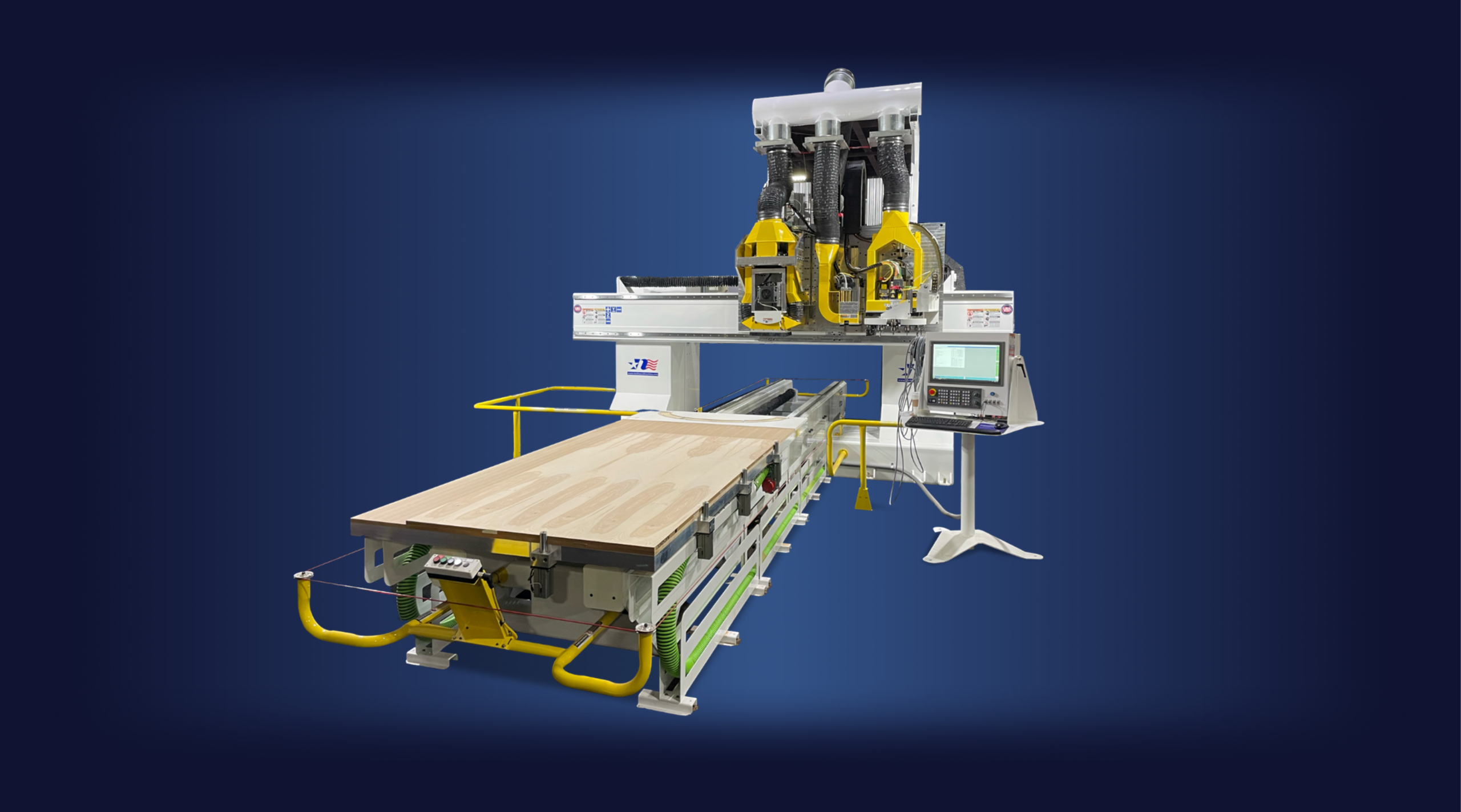

Single or twin (wide or narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle mounted fourth axis
C-axis
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Y on multi-tool machines
Z-axis travel (inches)
14 (standard), 24 (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal), 29-line, 35-line (all vertical), 40-line
Saw
Single direction, programmable 360-degree saw/V-groover, direct drive servo, 5-axis direct drive
Molder
6-inch shaft, 13-inch arbor, HSK-80 integral quick change molder
Automatic material management system
Loading, unloading, labeling
Manual material management system
Loading, unloading, labeling
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
