Iron Horse XL 3

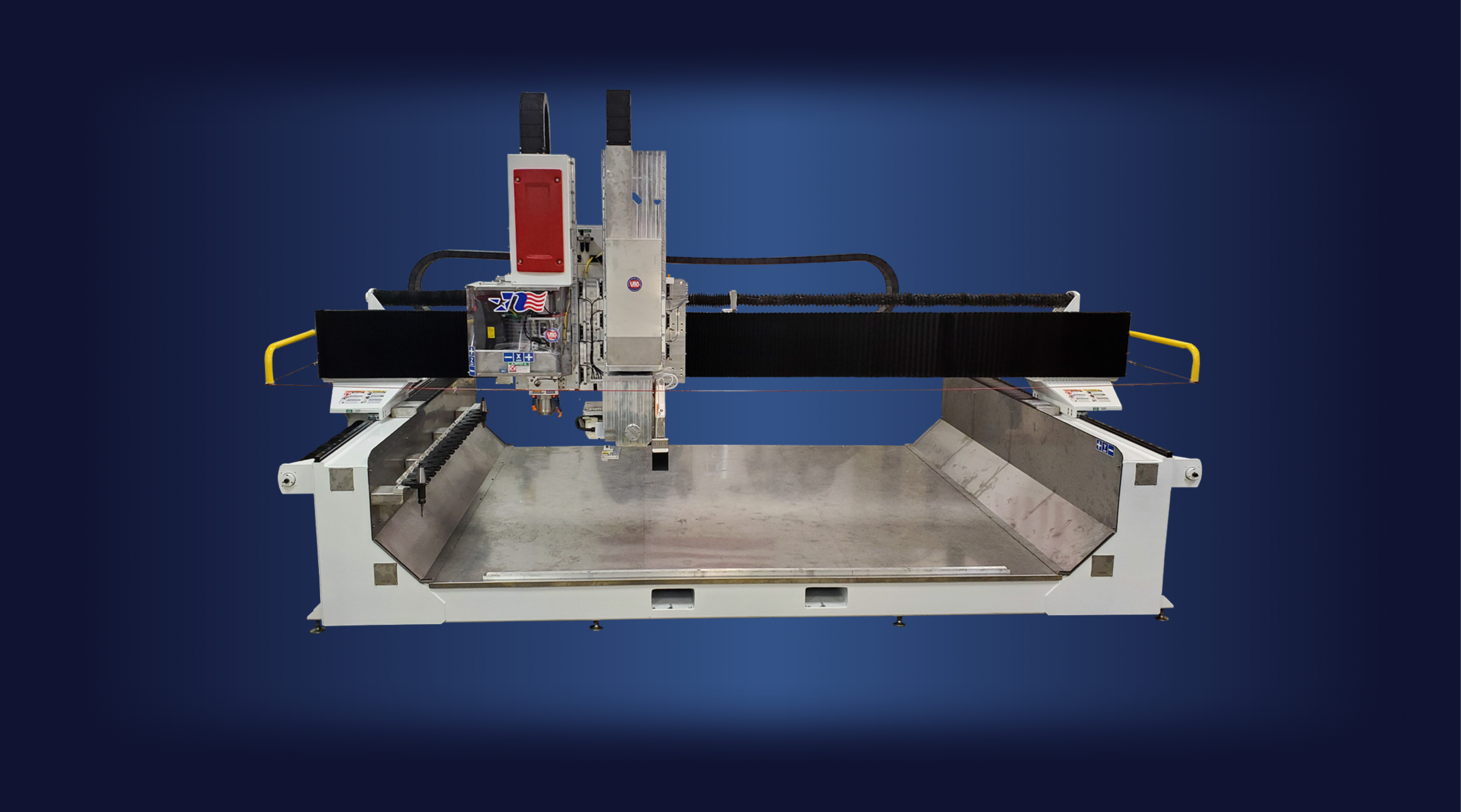

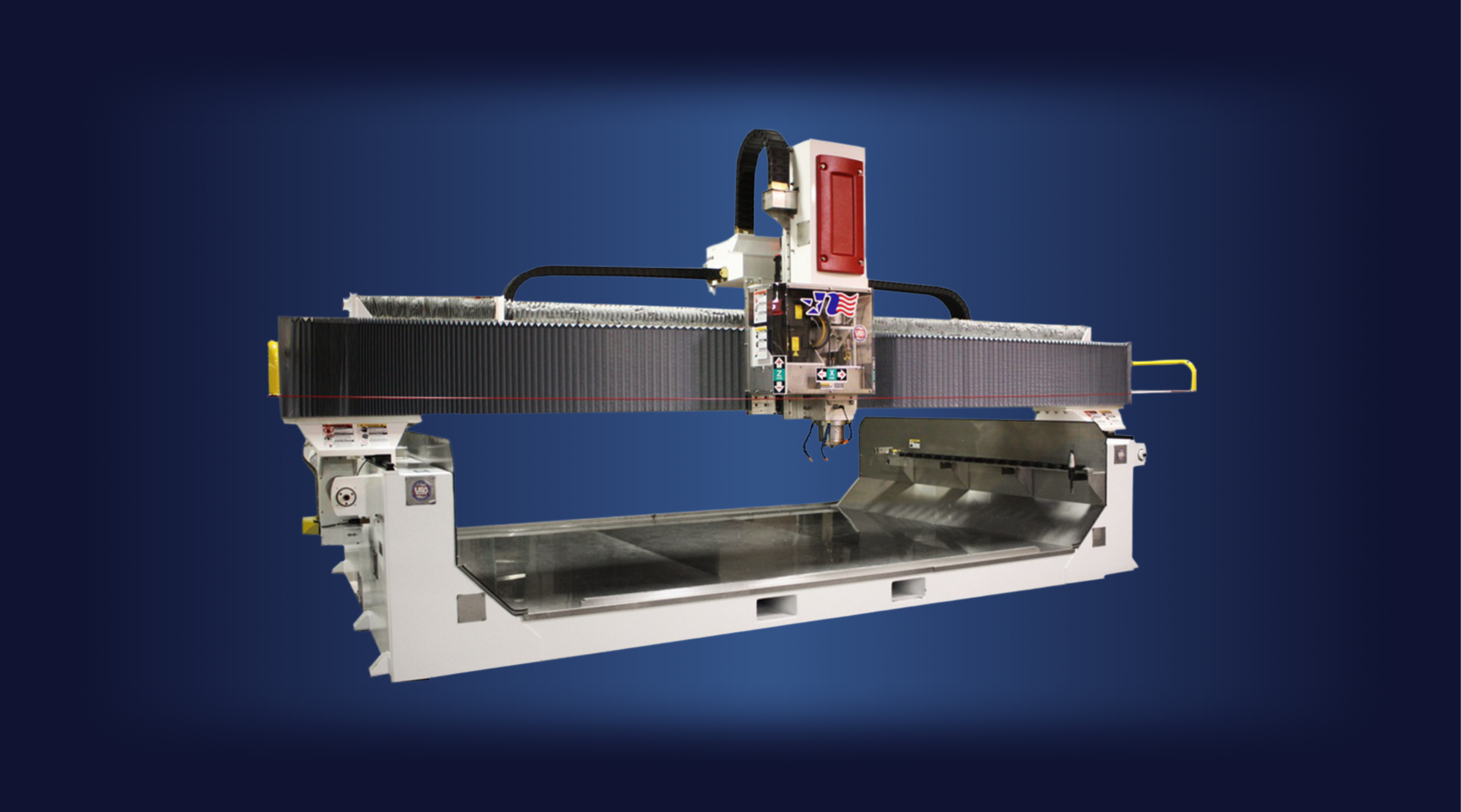

The Iron Horse XL 3 is a three-axis vertical CNC mill with a fixed table. This vertical bridge mill with a traveling gantry is engineered for metal working applications that need to process heavy ferrous or non-ferrous parts.
Cut big parts made of aluminum, steel, glass, stone and other heavy materials that require flood coolant with the Iron Horse XL 3. With its large work envelope, 20 hp FANUC-driven spindle and 30-inch Z-ram, this CNC machining center is geared toward milling.
The worktable is 13-feet by 8-feet but can be customized as needed. Compared to the industry standard of 4-feet by 2-feet, it’s clear how the Iron Horse XL 3 can increase your shop’s throughput.
The spindle options include an ISO40 taper, as well as an ISO50 taper to accommodate larger tooling. Halo and through-the-spindle tool coolant keep your tooling cool.
Choose between a flat table or a vacuum table, and static automatic tool changer racks or travel-along dynamic automatic tool changers.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System
Table size (inches)
144 x 96, custom
Table orientations
Single or twin (wide or narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
32 kW liquid cooled, ISO40 taper FANUC spindle, ISO50 taper FANUC spindle
Spindle mounted fourth axis
A- and C-axis with outboard encoders
Spindle clamp
HSK63A, ISO40, ISO50
Automatic tool changer
20 station (standard)
Z-axis travel (inches)
36 (standard), 50 (upgraded) 72 XL (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
