Iron Horse Dual Processing
The Iron Horse Dual Processing is a three-axis dual processing machining center engineered for high-volume manufacturing environments. Twin tables with twin tooling plates mean you get twice the number of accurate, high-quality parts done in a shift.

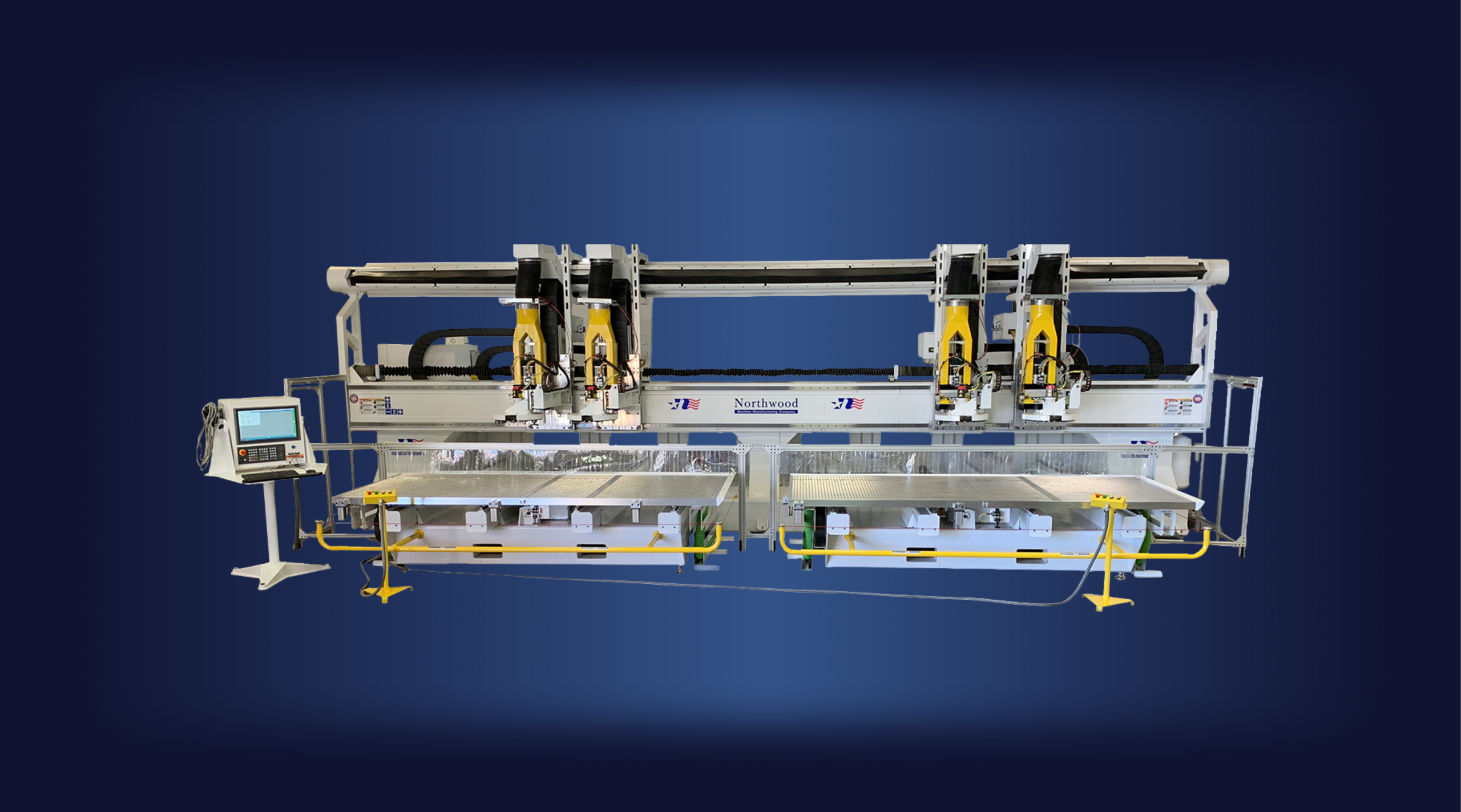

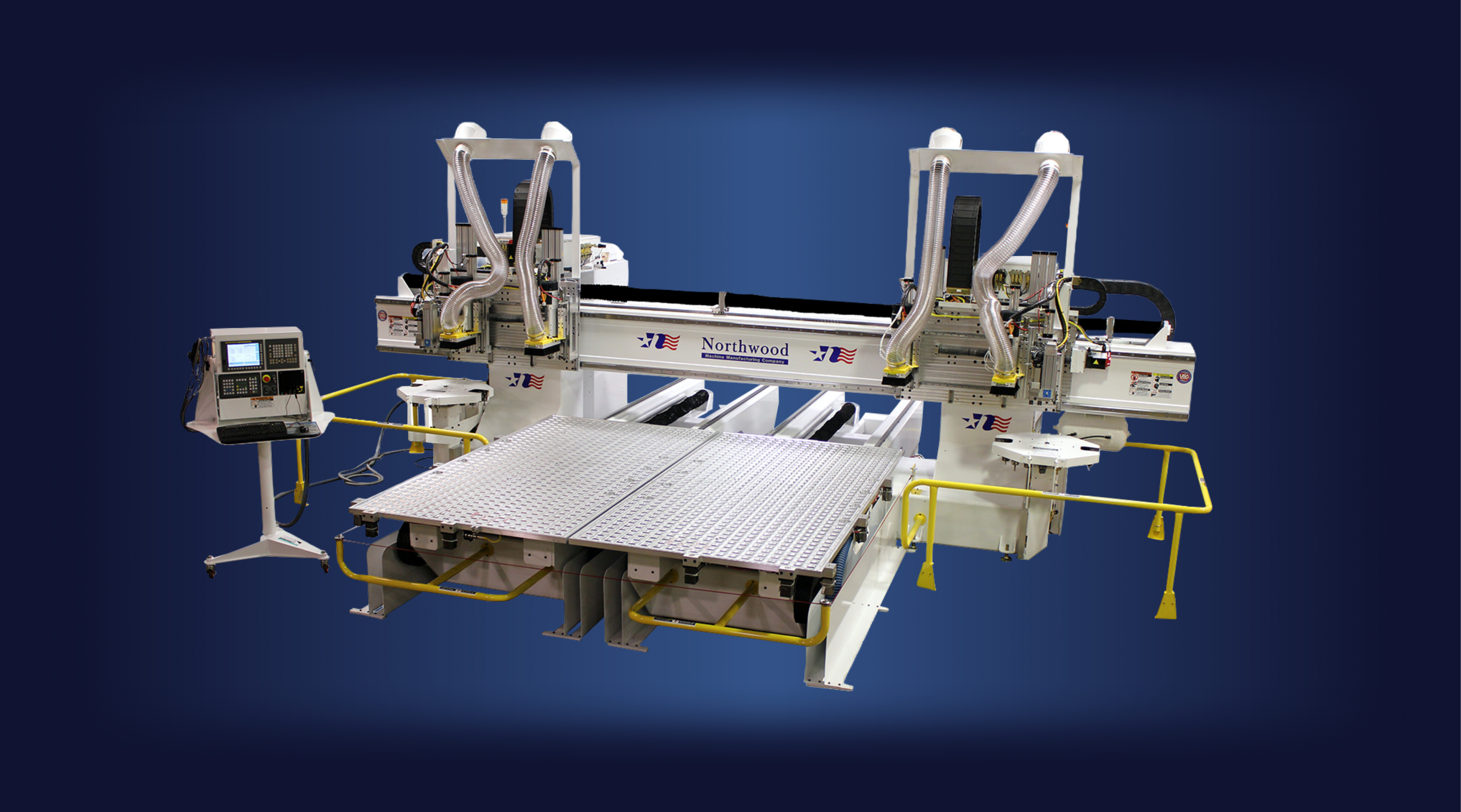

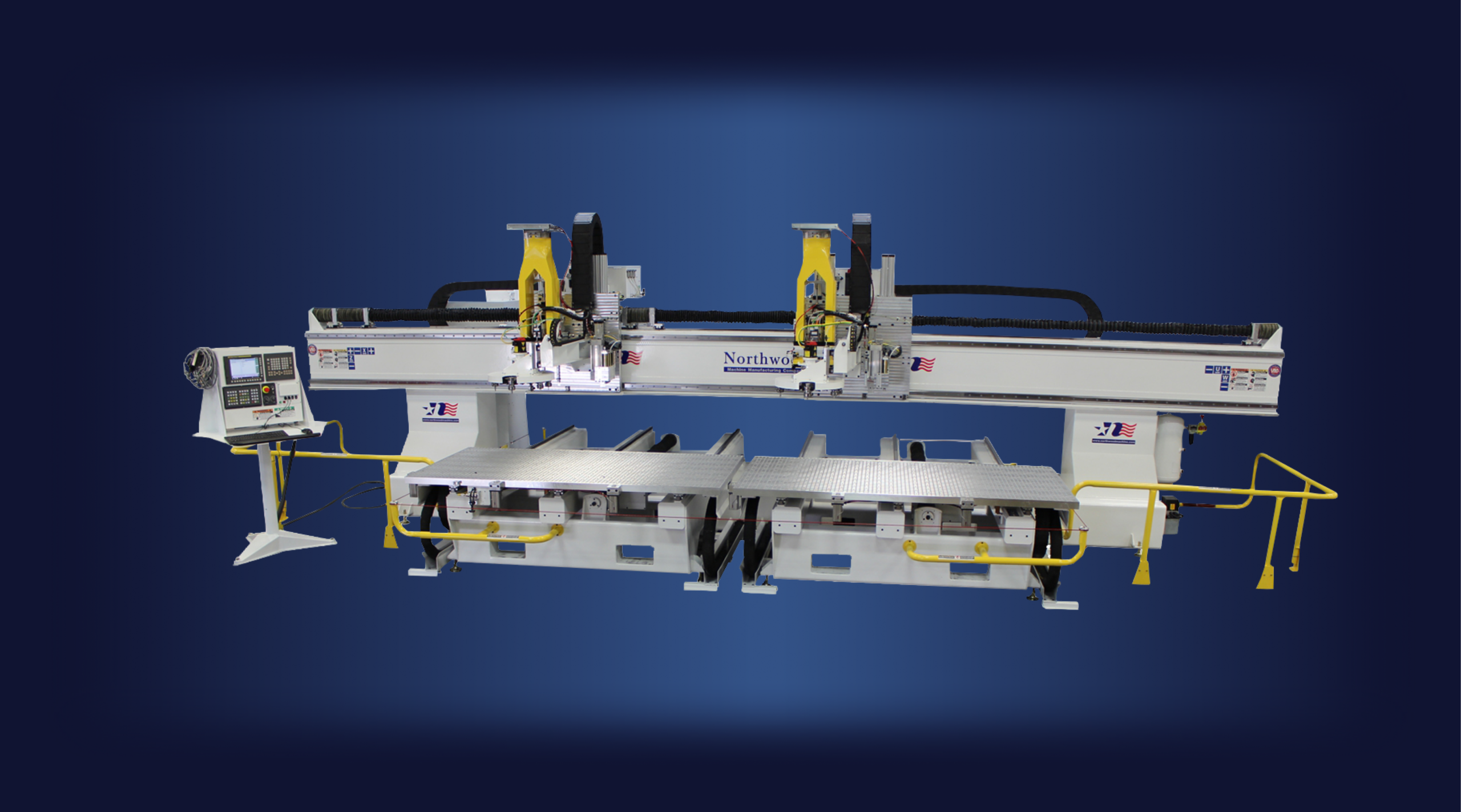

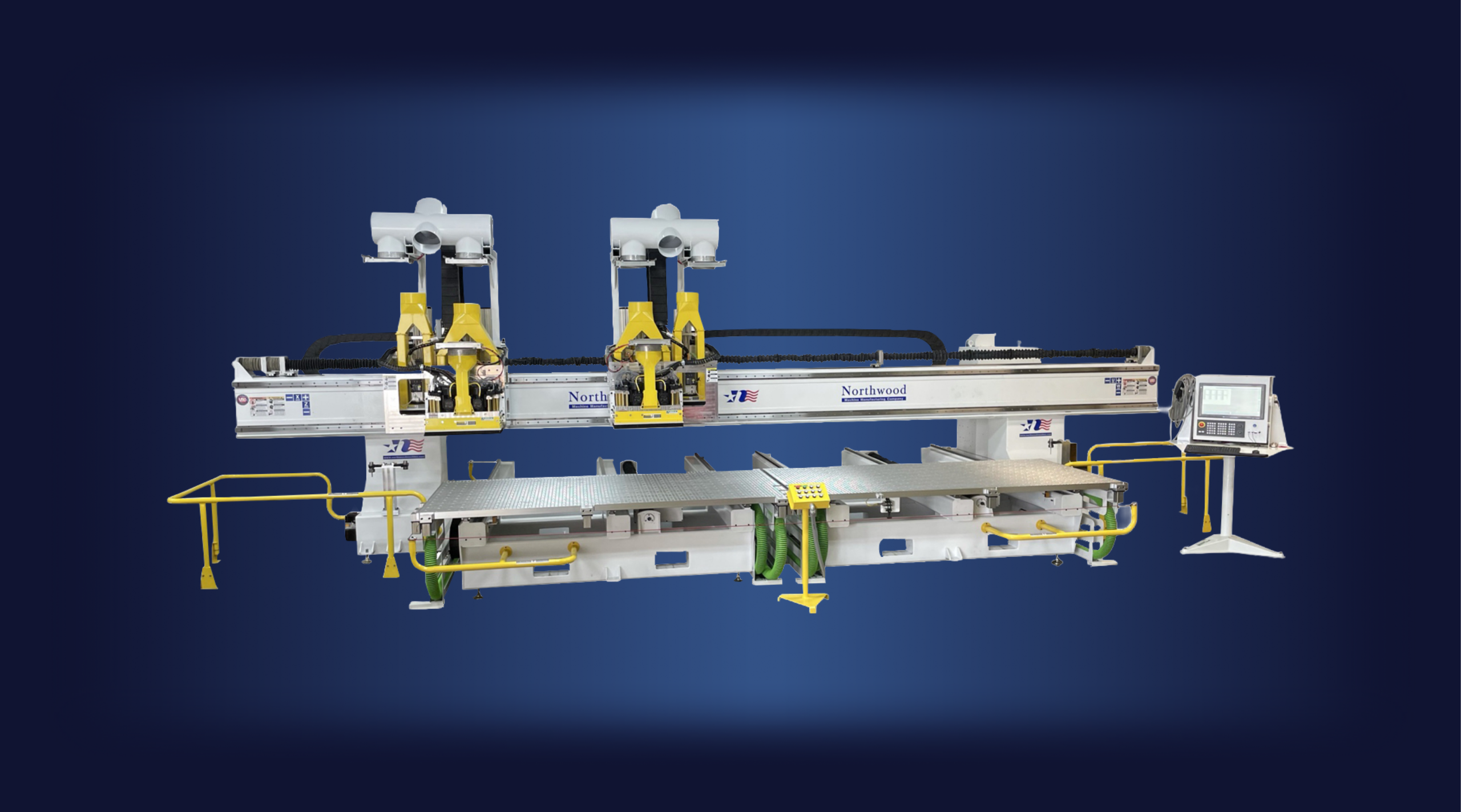

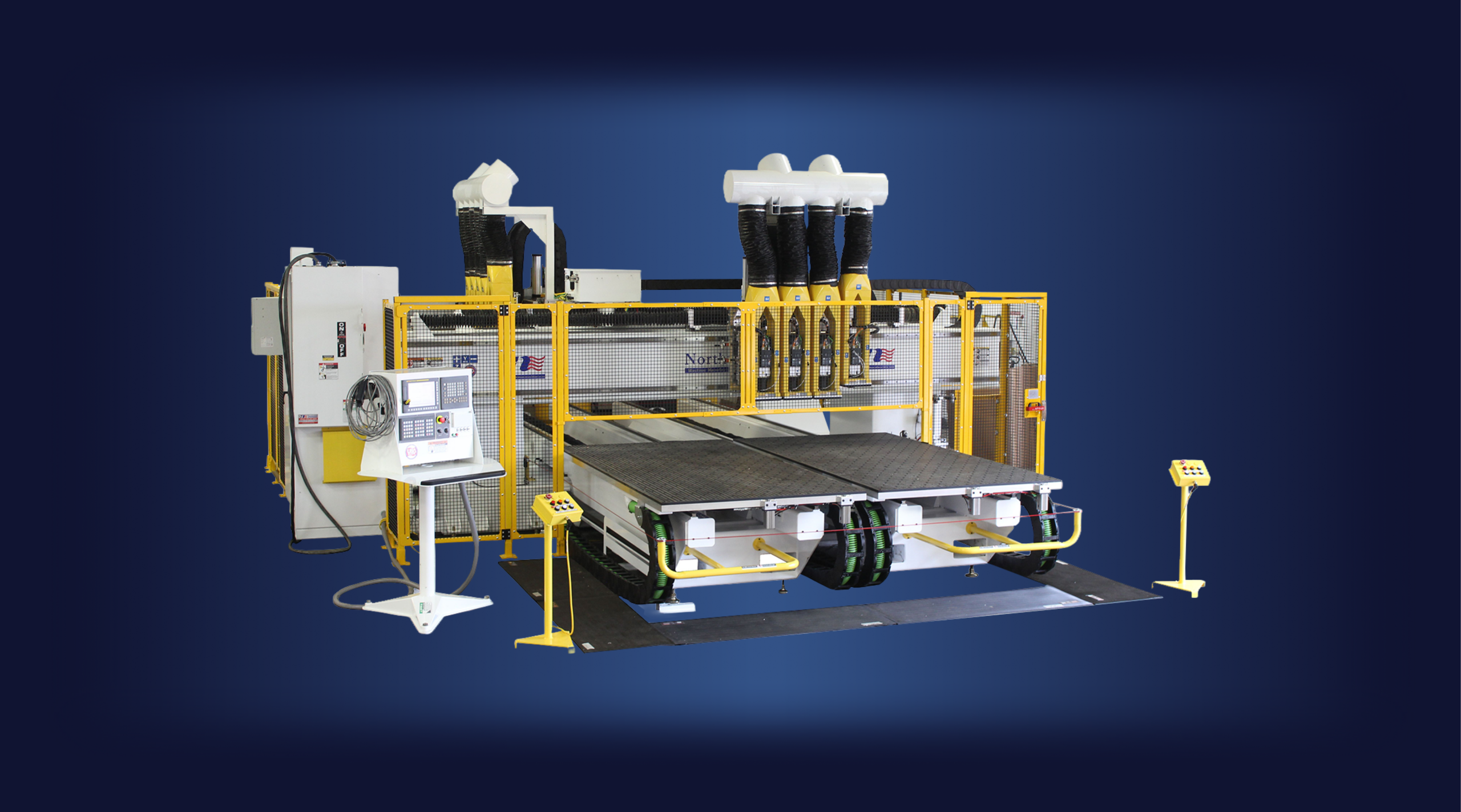

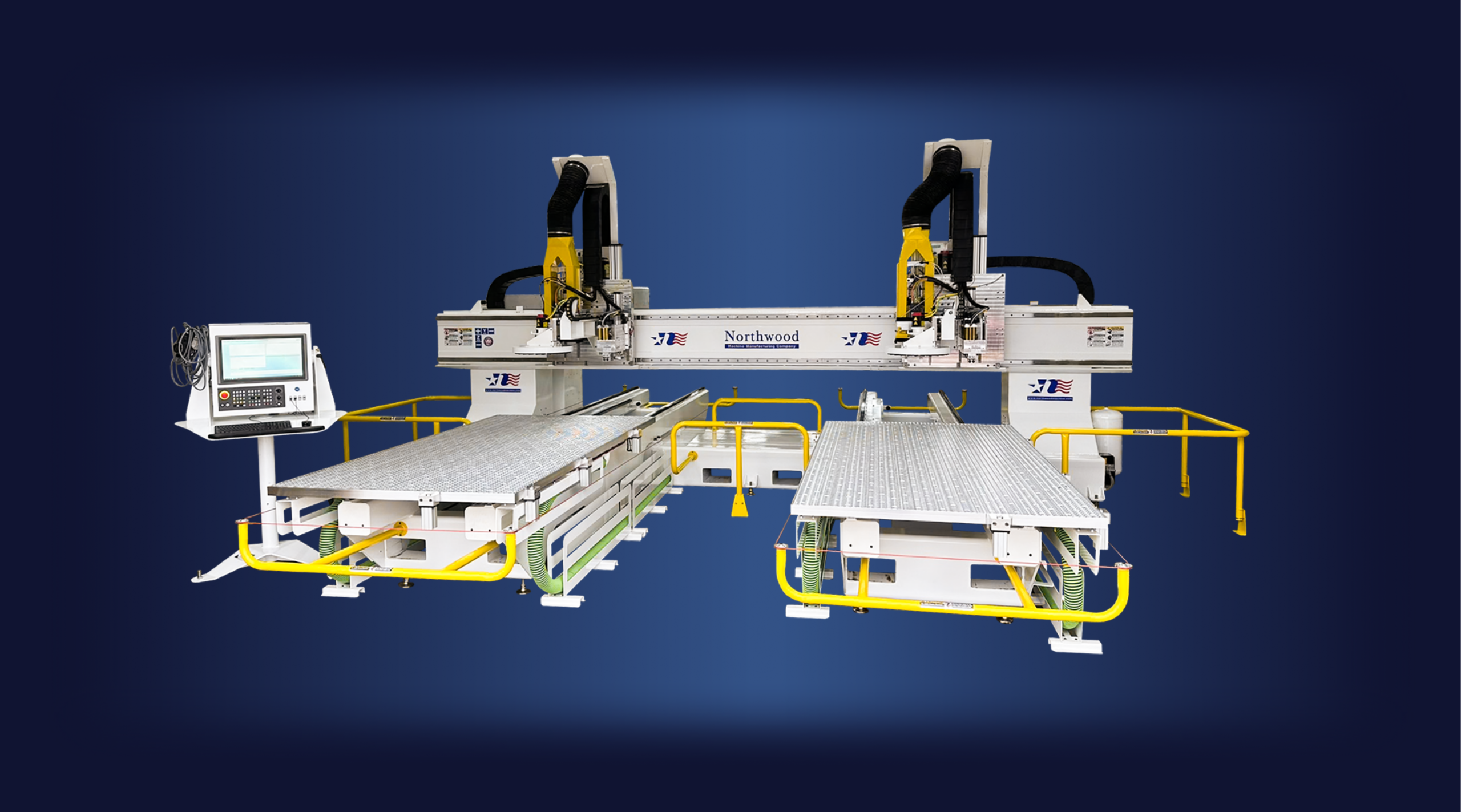

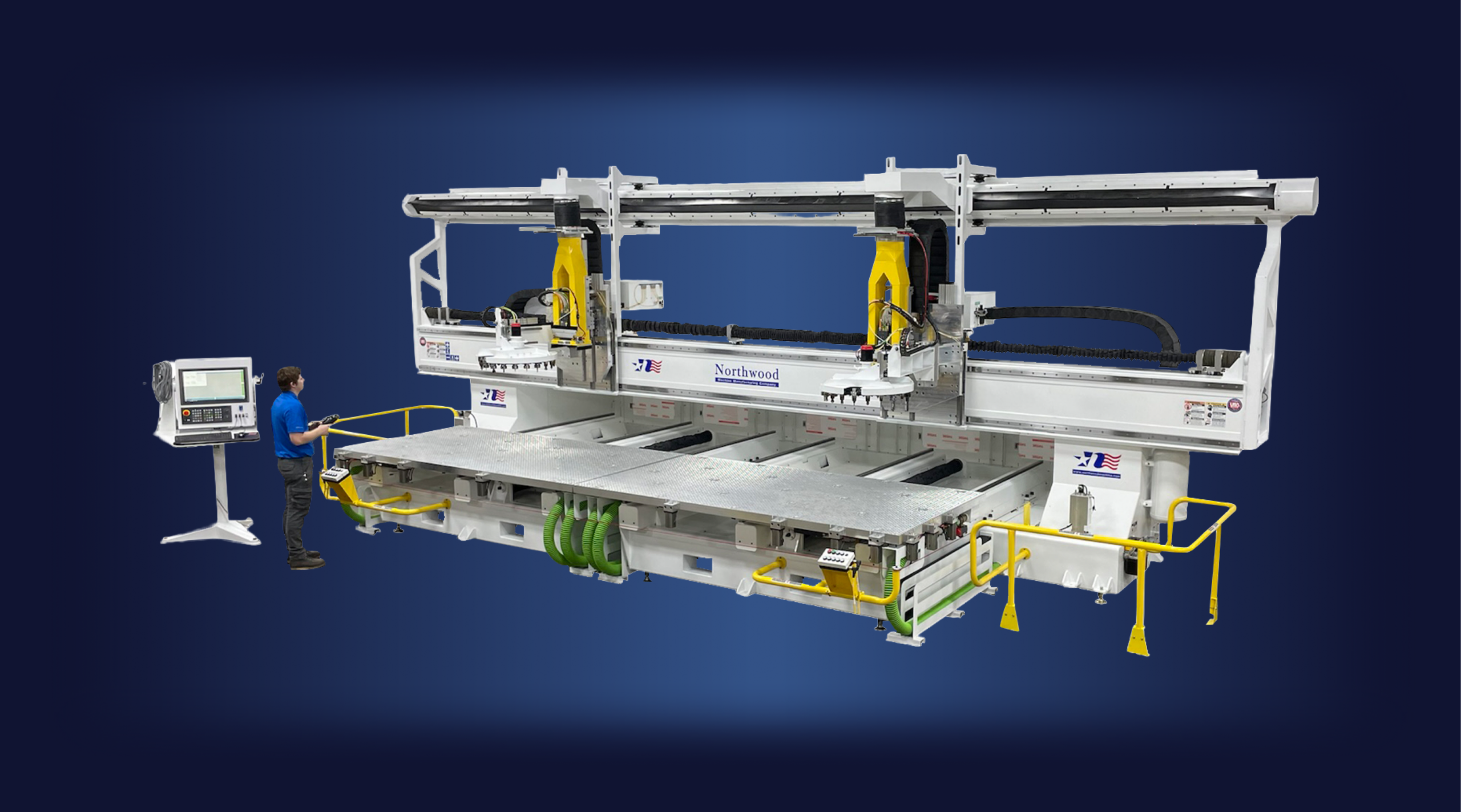

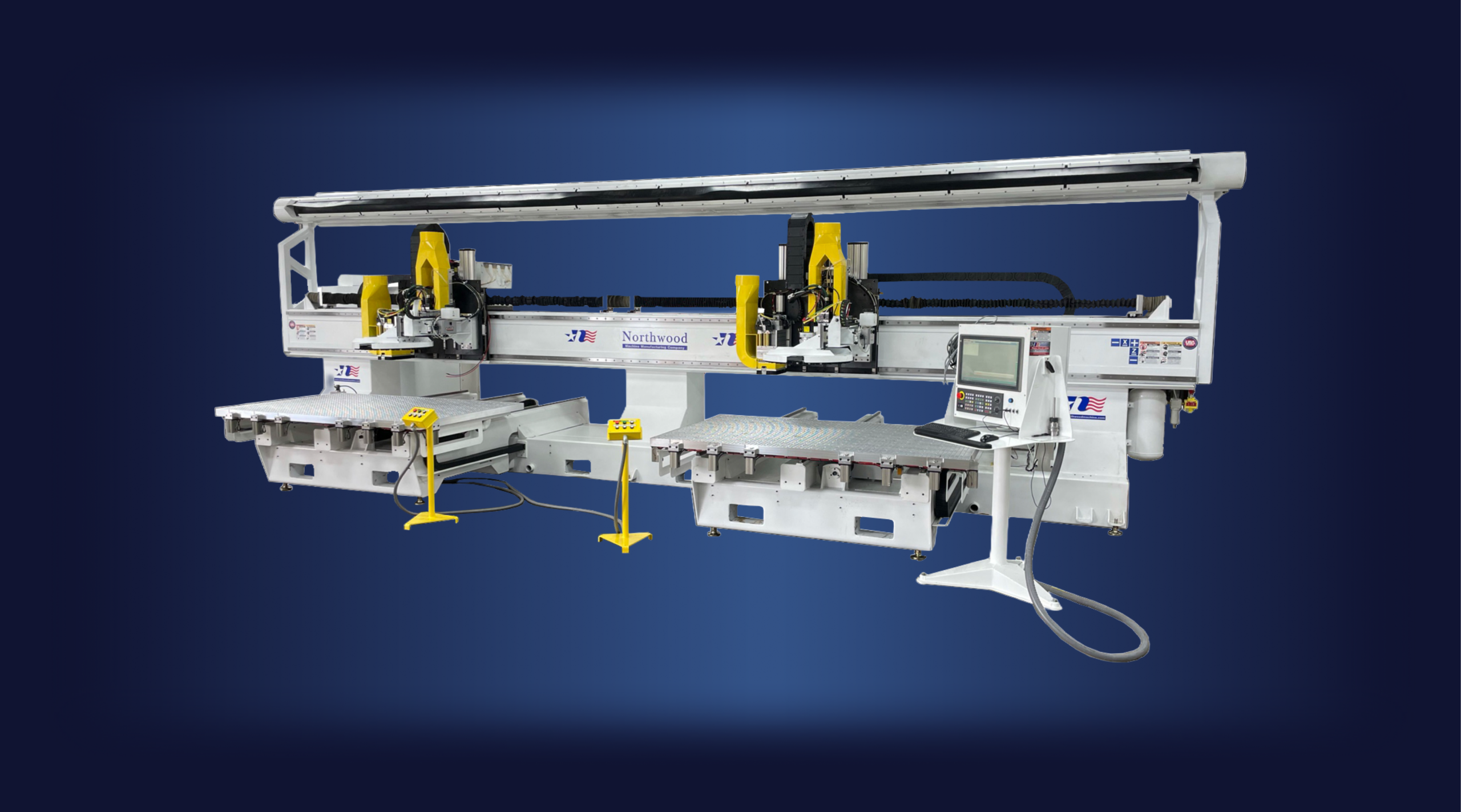

Minimize load time and cut two unique parts simultaneously with the Iron Horse Dual Processing. Designed with separate twin tables for continuous or pendulum processing, it’s available in both a wide and a narrow layout.
The dual head spacing can be fixed, adjustable or even servo controlled.
Tooling includes 24 HP liquid-cooled spindles, routers, motors, large vertical drills (5-line, 21-line, 35-line) and single vertical drills. For solid surface or architectural millwork applications, we also have molder heads and 360-degree programmable saws for v-grooving.
Whatever your specs, our expert engineers can help you get the most out of your Iron Horse Dual Processing.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 0i-Model F Plus with Alpha iD Servo System Dual Path (Optional 31i series)
Table size (inches)
49 x 97, 61 x 121, 61 x 145, custom
Table orientations
Single or twin (wide or narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (kW)
13 (air cooled), 16 (liquid cooled), 25 (liquid cooled)
Spindle mounted fourth axis
C-axis
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
12 standard (optional 8, 10 and 20)
Adjustable spindle spacing
Spindle center spacing (manual or servo) or independent X/Y on multi-tool machines
Z-axis travel (inches)
14 (standard), 24 (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw TS27R, NC4 non-contact or RMP400)
Line boring/drill unit
5-line, 9-line, 21-line (13 vertical, 8 horizontal), 29-line, 35-line (all vertical), 40-line
Saw
Single direction, programmable 360-degree saw/V-groover, direct drive servo, 5-axis direct drive
Automatic material management system
Loading, unloading, labeling
Manual material management system
Loading, unloading, labeling
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Optional features
Fencing, Keyence scanners, MQL, zipper ducts, barcode reader
