Iron Horse XL 5

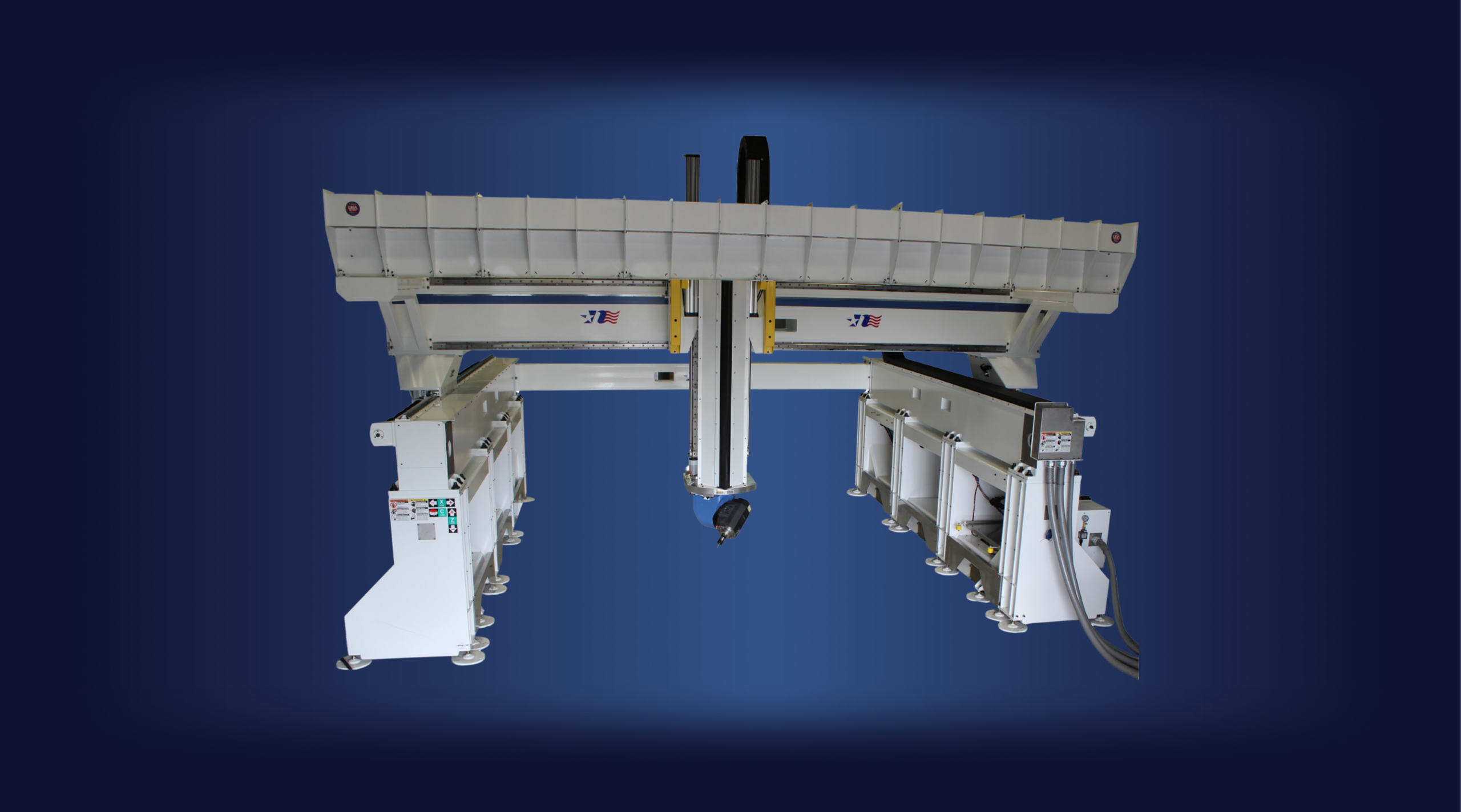

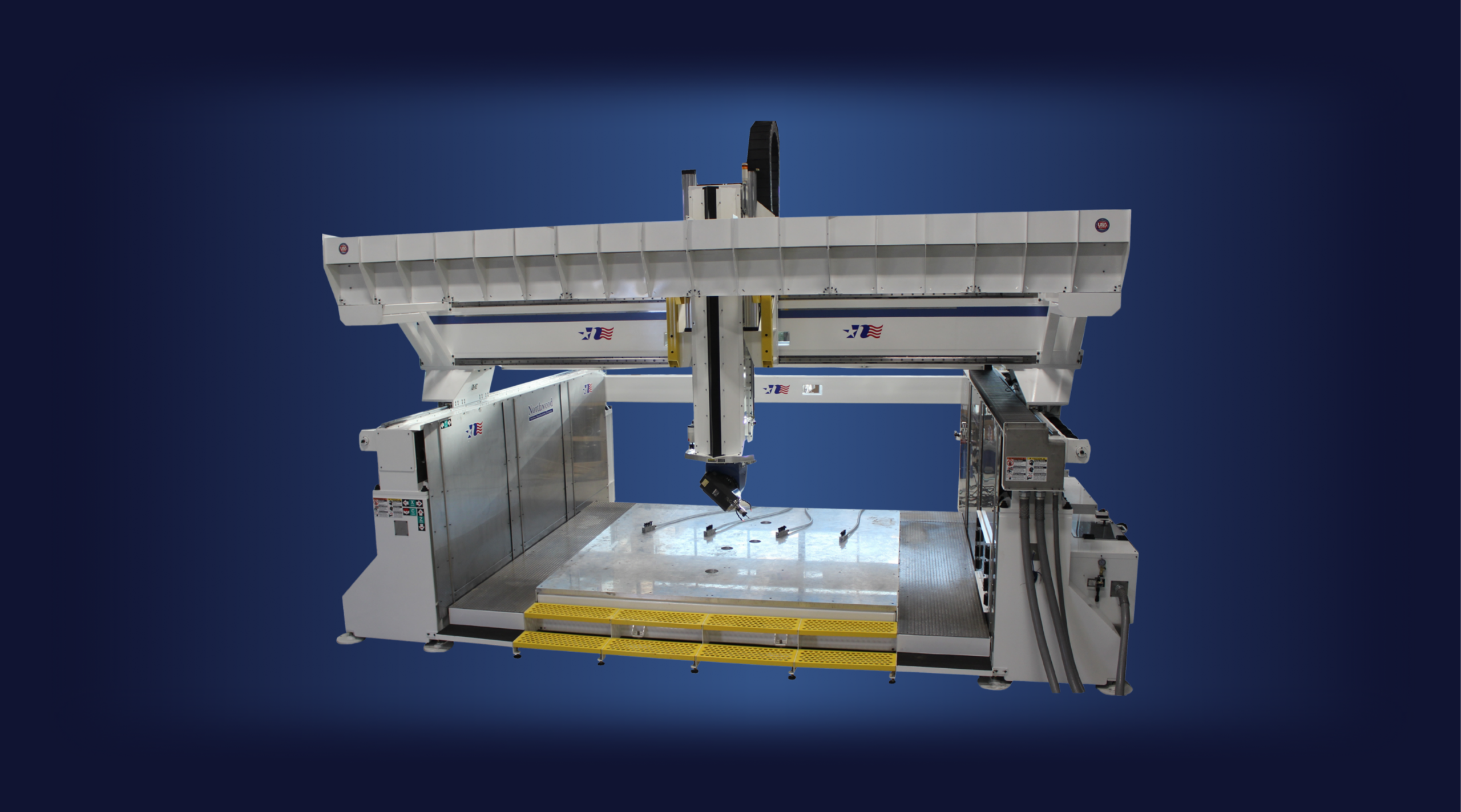

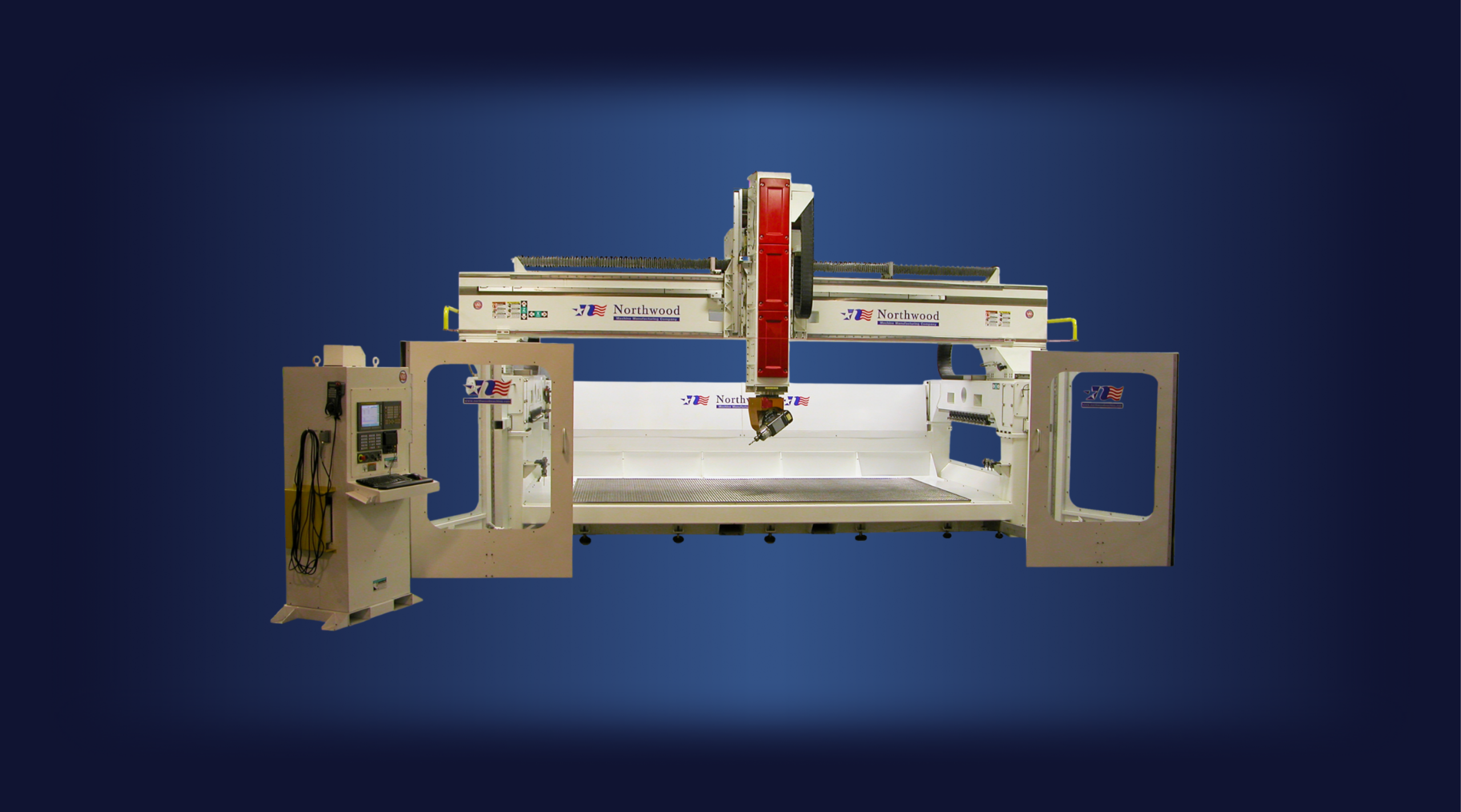

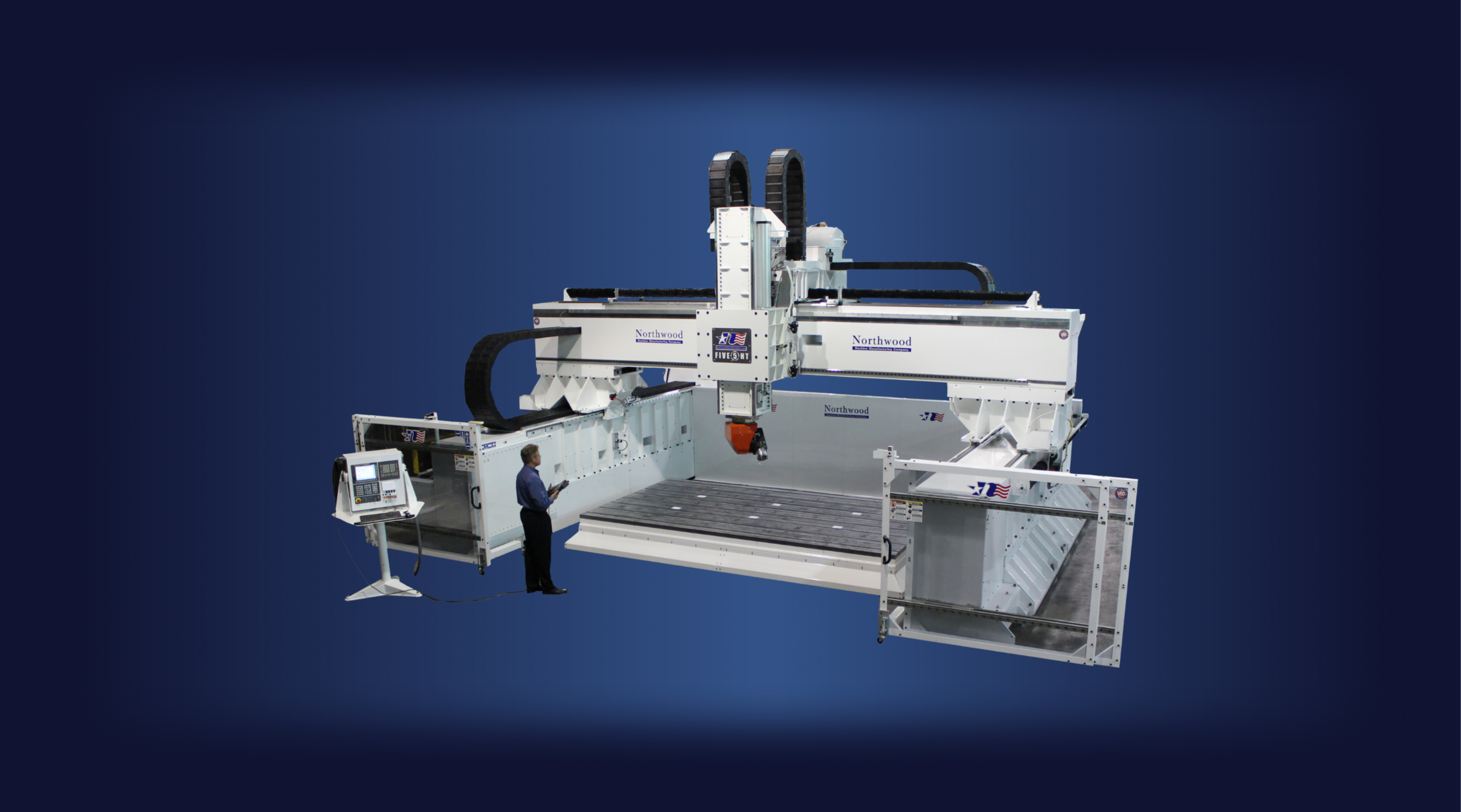

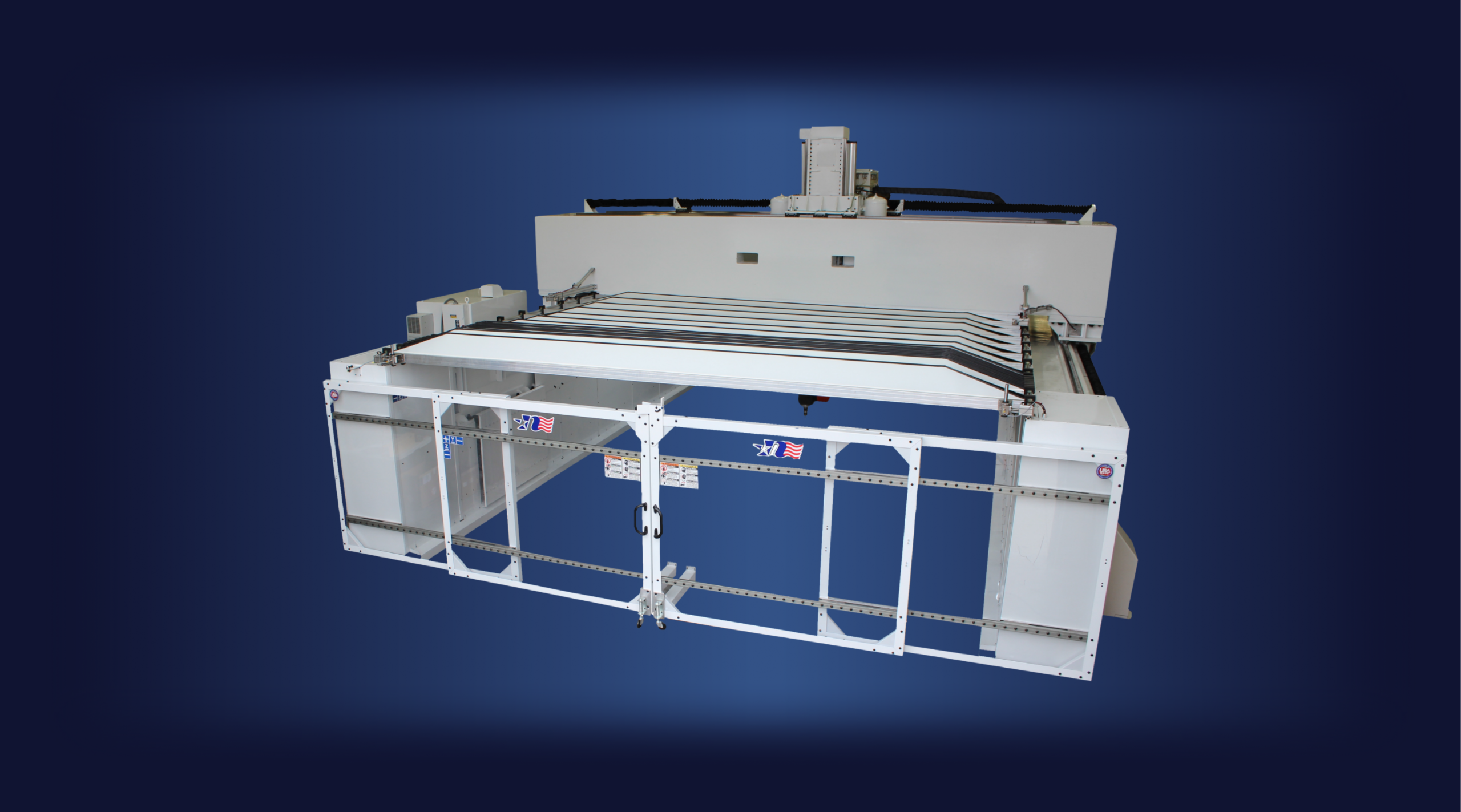

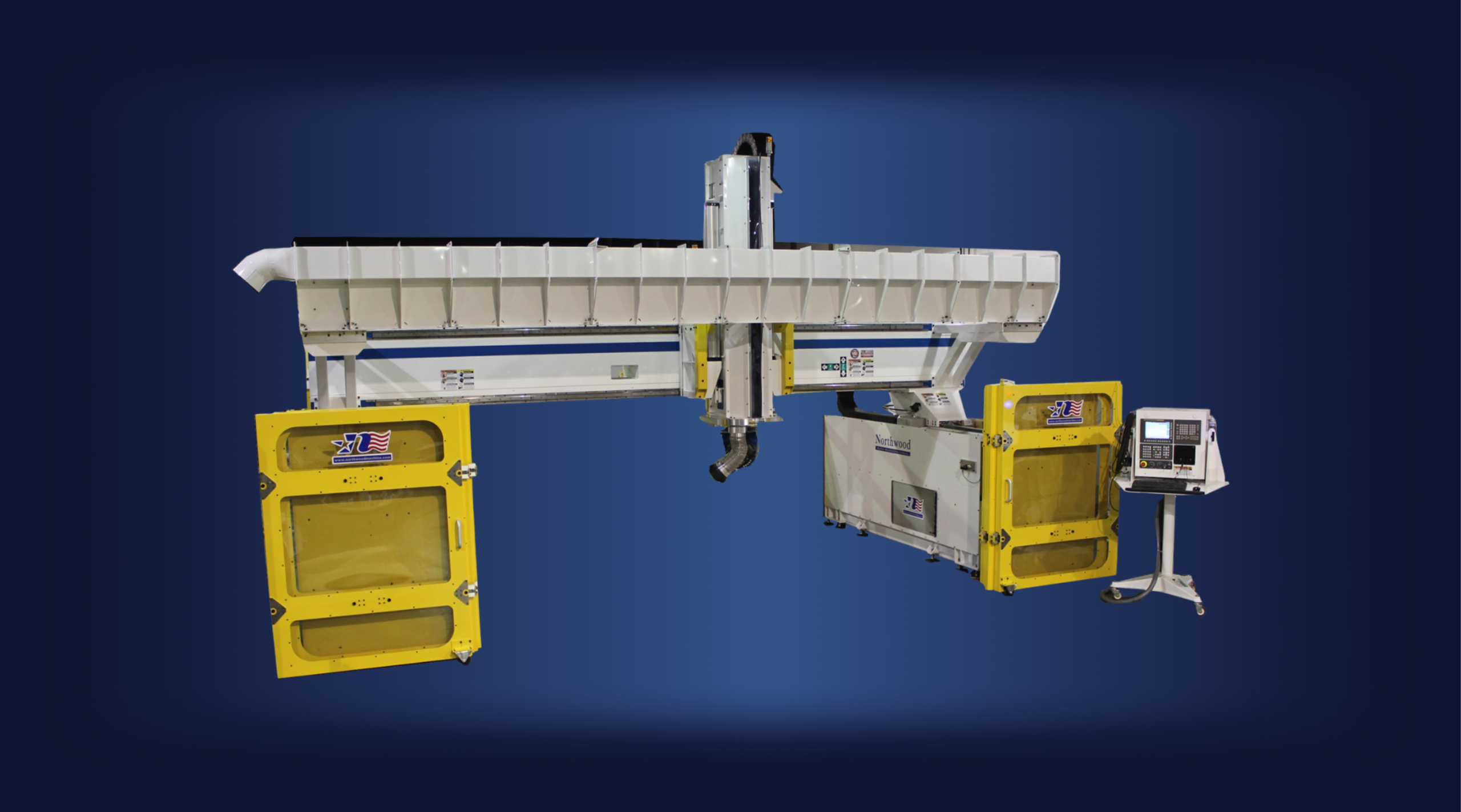

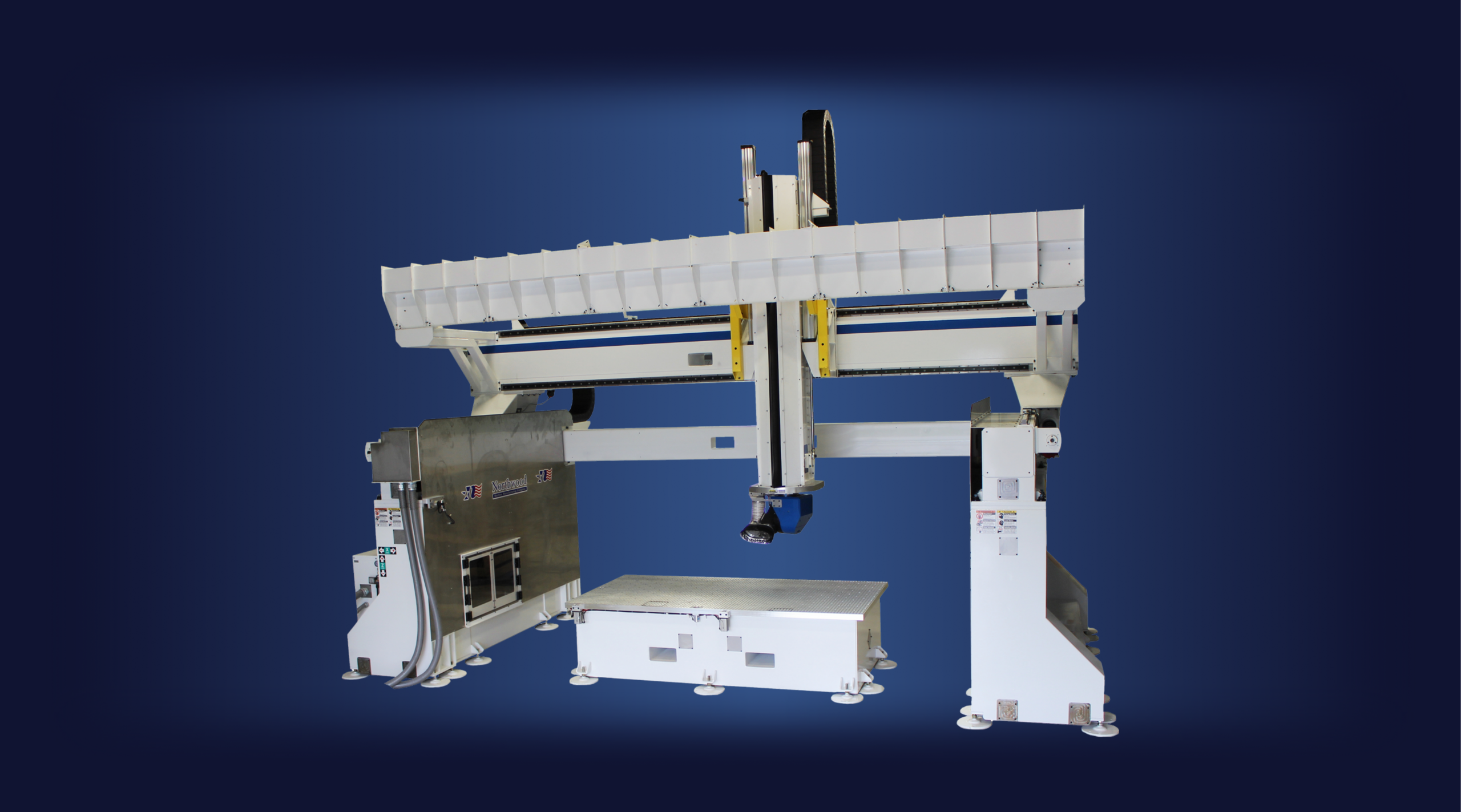

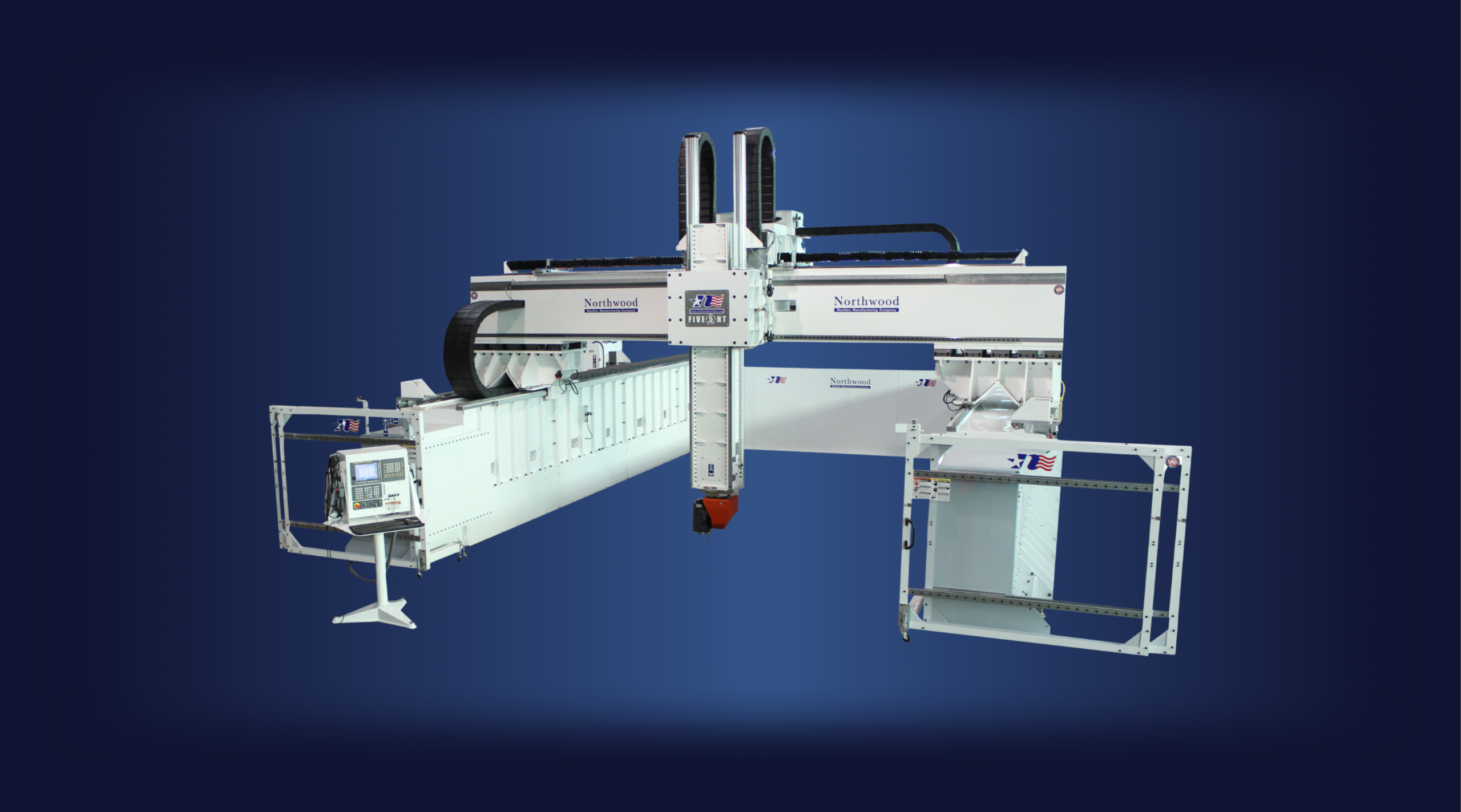

The Iron Horse XL 5 is a five-axis CNC machining center with a moving gantry. This fixed table machine also has a large work envelope, designed for processing large or heavy parts for composite and aerospace applications.
Meet tight tolerances with precision on big, heavy parts. The Iron Horse XL 5 offers all the complex processing capabilities of a 5-axis CNC machining center with a large work envelope. Cut big parts or set up multiple custom fixtures inside the work zone to increase your changeover efficiency.
The base size is 15-feet by 8-feet, but is customizable up to 60 feet. All Iron Horse XL 5 machines have upgraded 31i-B5 FANUC controls for improved accuracy and linear encoders for direct feedback.
Spindles start at 15 kW and go up to 65 kW, depending on your needs. Other variations include a flood coolant or a roof bellow system to contain dust, as well as a shuttle table/pallet changer material handling system. The high-torque spindle with optional through-tool coolant, dual exterior high- and low-pressure flood halos, and an air curtain barrier improve feed rates and help contain airborne particles.

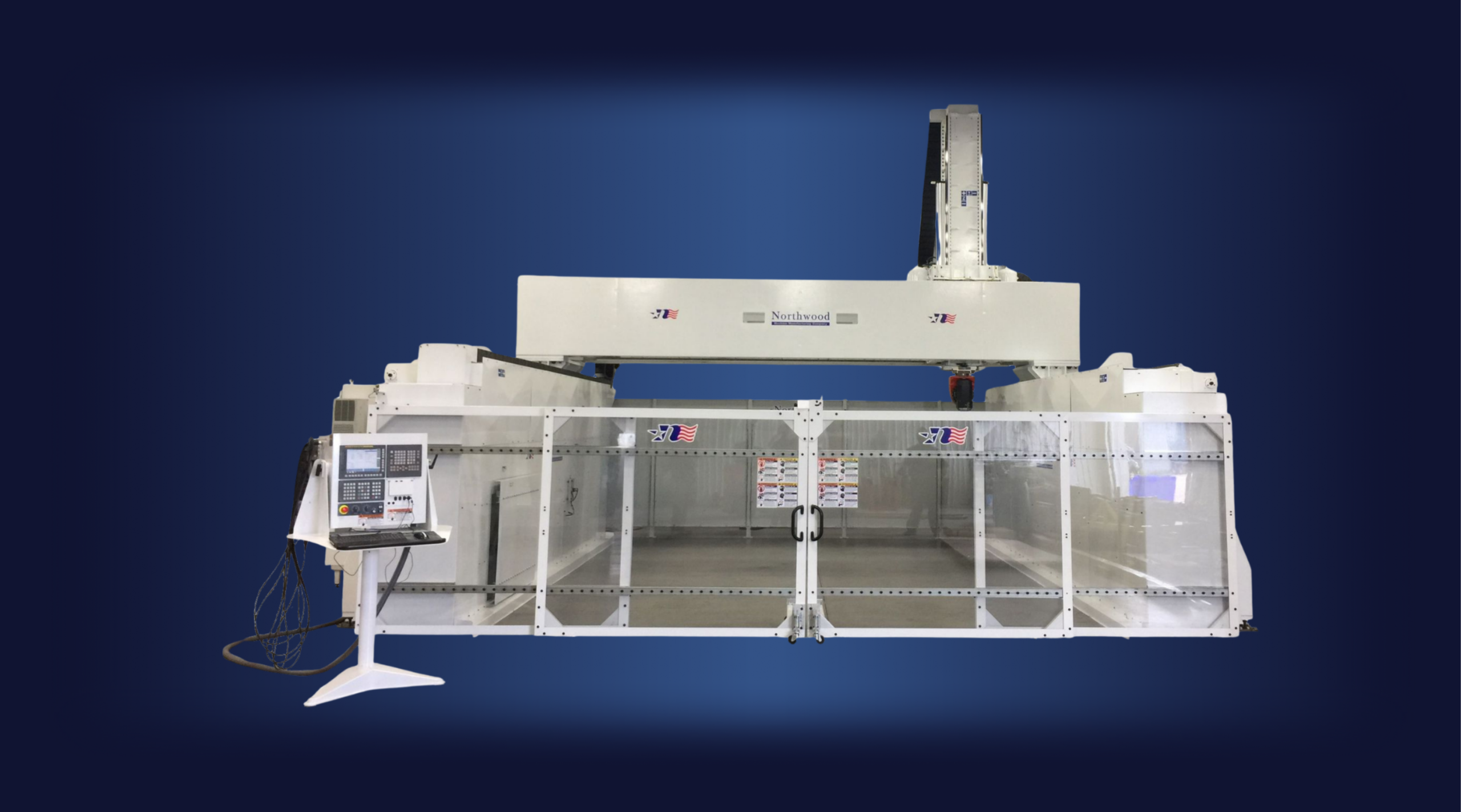

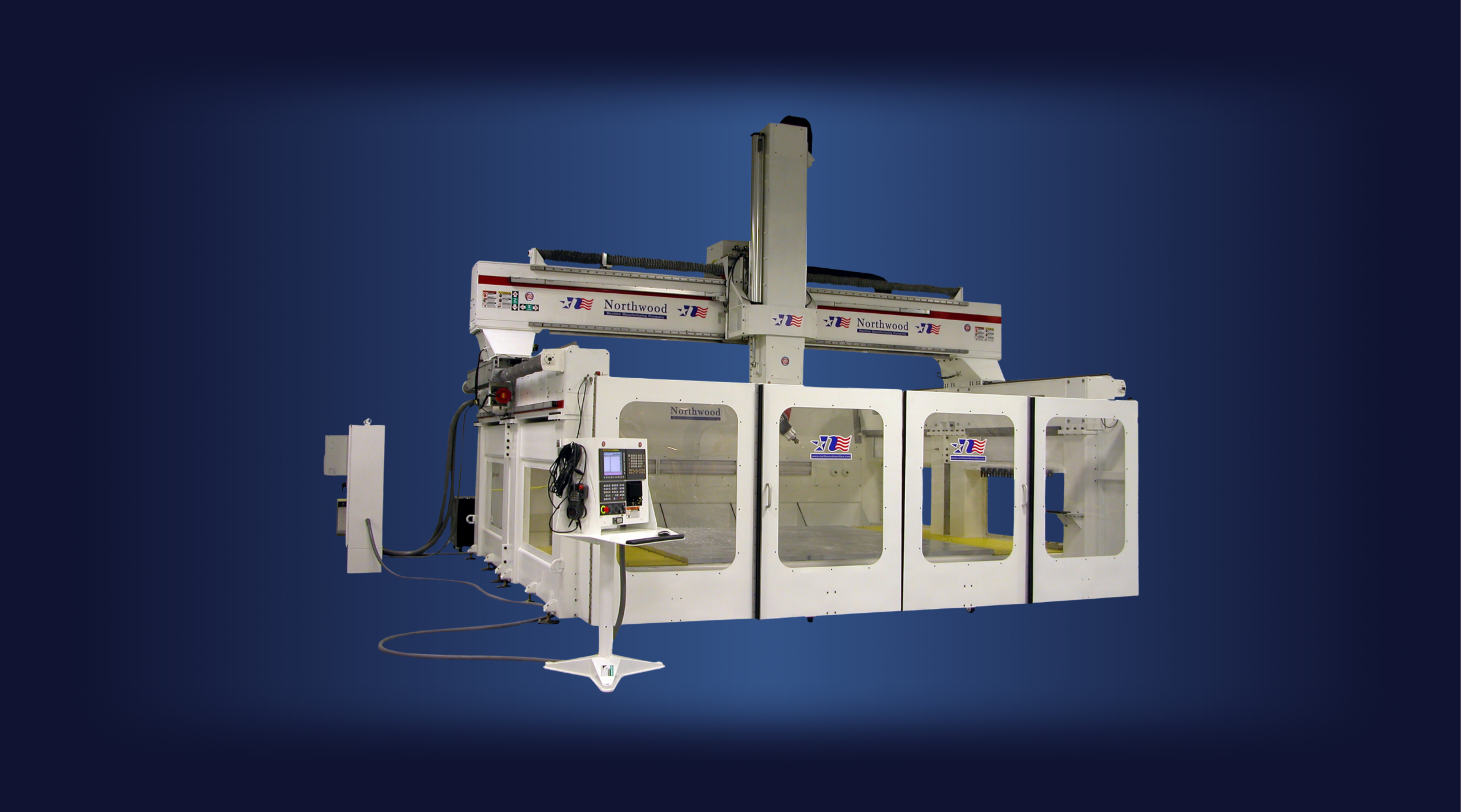

To control contamination and provide a physical safety barrier during operation, Iron Horse XL 5 CNC machining centers are normally enclosed on all four sides.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 31iB5 Plus with Alpha iD servo system
Table size (inches)
144 x 96, custom
Table orientations

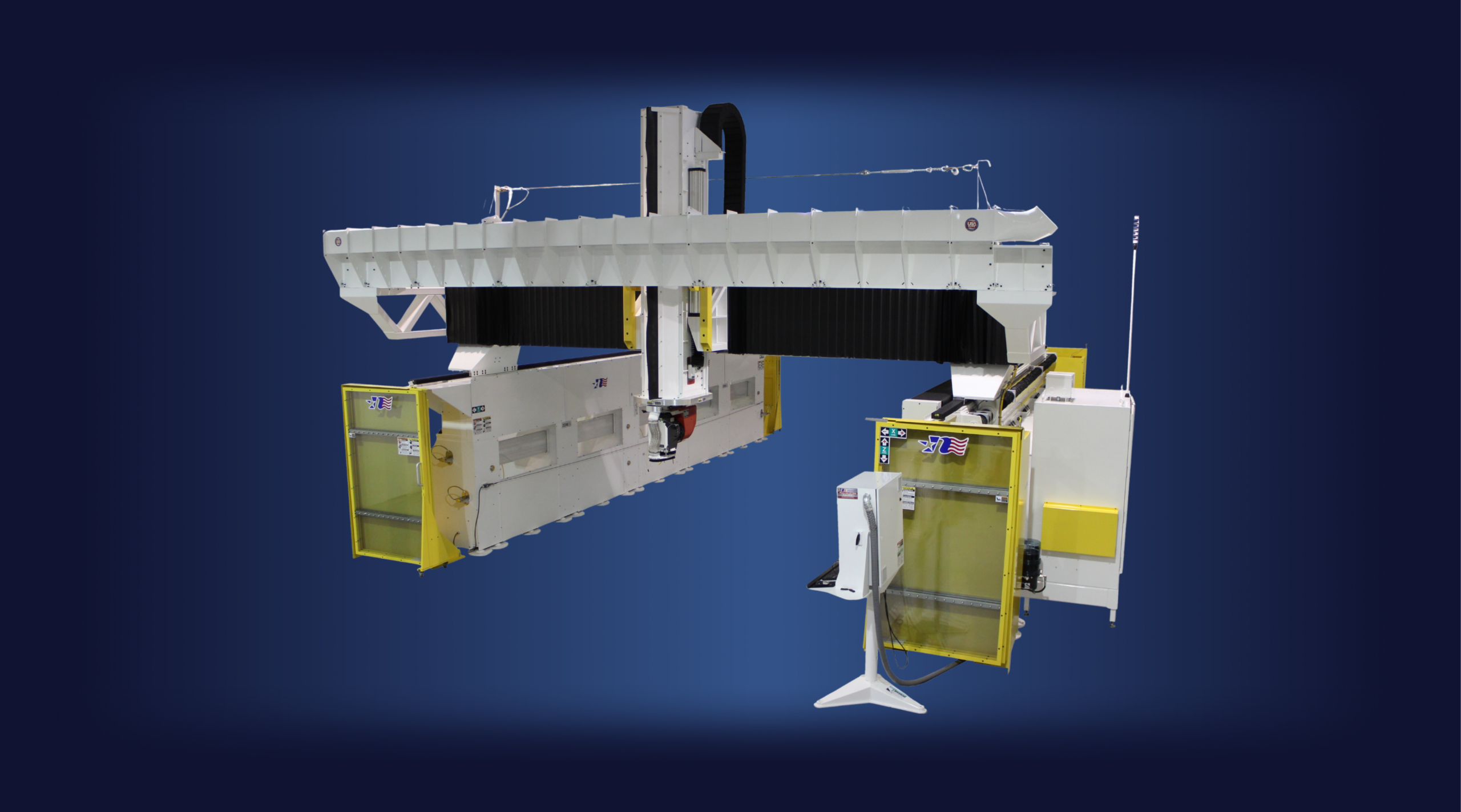

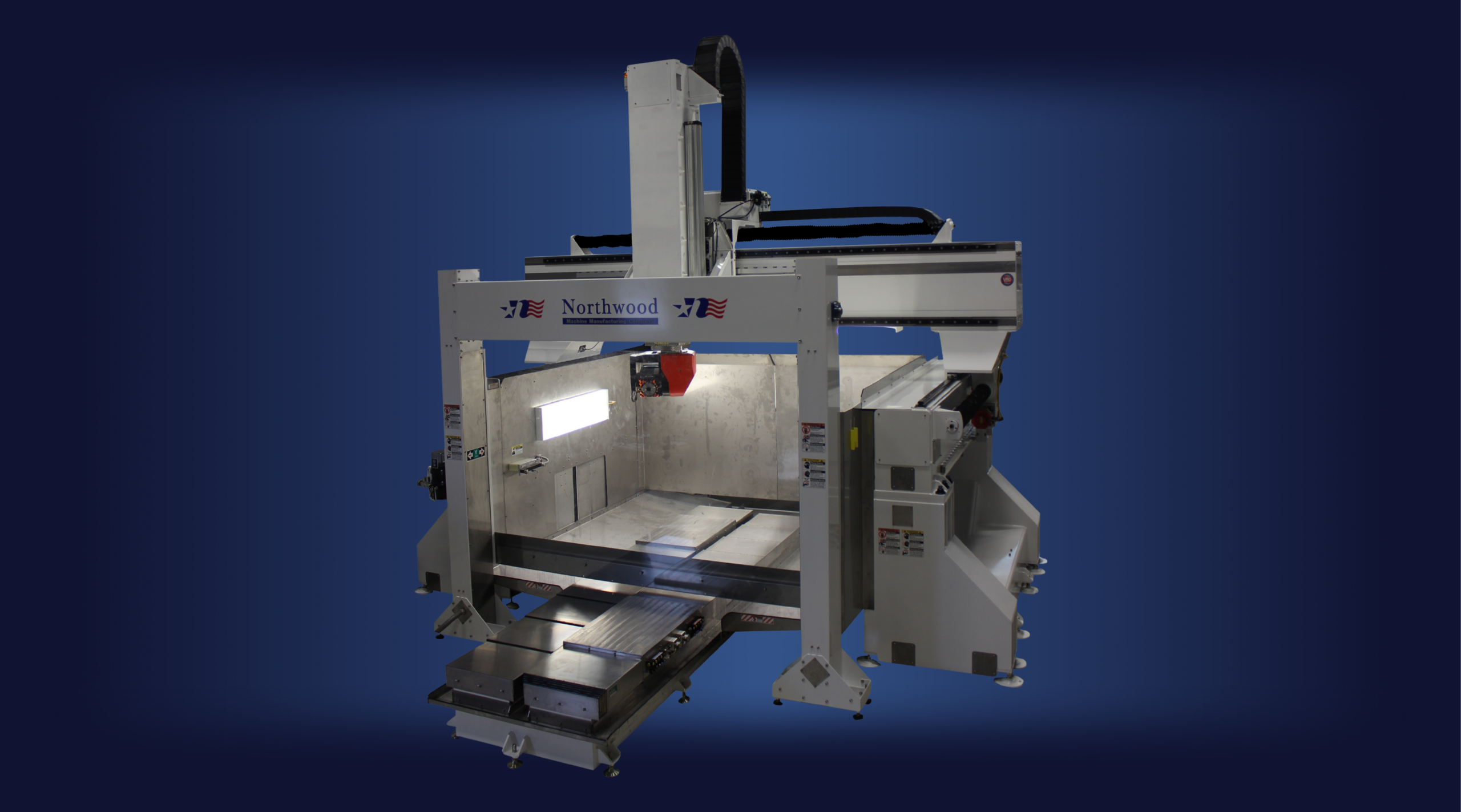

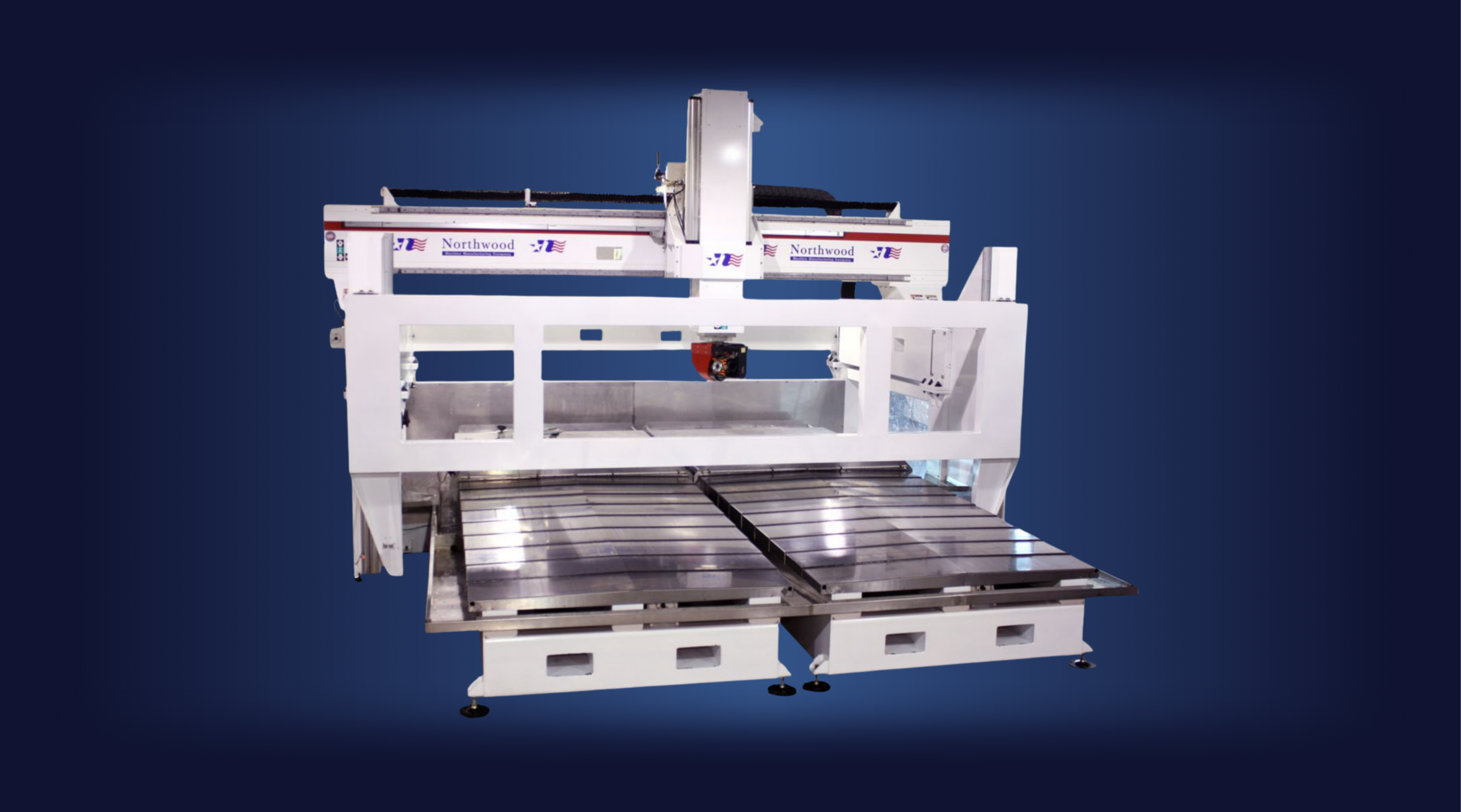

Single or twin (wide or narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (2-axis heads)
| Option A | head with 18 kW liquid cooled |
| Option B1 | head with 15 kW liquid cooled |
| Option B2 | head with 25 kW liquid cooled |
| Option B3 | head with 42 kW liquid cooled |
| Option C1 | head with 7 kW liquid cooled |
| Option C2 | head with 11 kW liquid cooled |
| Option D | head with 50 kW liquid cooled |
| Option E | head with 25 kW liquid cooled |
| Option F | head with 20 kW liquid cooled |
Spindle mounted fourth axis
A- and C-axis with outboard encoders
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
20 station (standard)
Z-axis travel (inches)
36 (standard), 50 (upgraded) 72 XL (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw, TS27R, NC4 non-contact or RMP400)
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
Meet tight tolerances with precision on big, heavy parts. The Iron Horse XL 5 offers all the complex processing capabilities of a 5-axis CNC machining center with a large work envelope. Cut big parts or set up multiple custom fixtures inside the work zone to increase your changeover efficiency.
The base size is 15-feet by 8-feet, but is customizable up to 60 feet. All Iron Horse XL 5 machines have upgraded 31i-B5 FANUC controls for improved accuracy and linear encoders for direct feedback.
Spindles start at 15 kW and go up to 65 kW, depending on your needs. Other variations include a flood coolant or a roof bellow system to contain dust, as well as a shuttle table/pallet changer material handling system. The high-torque spindle with optional through-tool coolant, dual exterior high- and low-pressure flood halos, and an air curtain barrier improve feed rates and help contain airborne particles.
To control contamination and provide a physical safety barrier during operation, Iron Horse XL 5 CNC machining centers are normally enclosed on all four sides.
Every Northwood CNC machine features precision FANUC servo controls, automatic oil lubrication, a year-long subscription to Northwood LIVE and lifetime service and support from U.S.-based technicians.
Controls
FANUC 31iB5 Plus with Alpha iD servo system
Table size (inches)
144 x 96, custom
Table orientations
Single or twin (wide or narrow)
Table options
Single or multiple vacuum zones, 3-standard automatic part location stops (additional available)
Spindle power (2-axis heads)
| Option A | head with 18 kW liquid cooled |
| Option B1 | head with 15 kW liquid cooled |
| Option B2 | head with 25 kW liquid cooled |
| Option B3 | head with 42 kW liquid cooled |
| Option C1 | head with 7 kW liquid cooled |
| Option C2 | head with 11 kW liquid cooled |
| Option D | head with 50 kW liquid cooled |
| Option E | head with 25 kW liquid cooled |
| Option F | head with 20 kW liquid cooled |
Spindle mounted fourth axis
A- and C-axis with outboard encoders
Spindle clamp
HSK63F and HSK63A
Automatic tool changer
20 station (standard)
Z-axis travel (inches)
36 (standard), 50 (upgraded) 72 XL (upgraded)
Automatic tool/part probe measurement
Standard Northwood Probe (optional Renishaw, TS27R, NC4 non-contact or RMP400)
Vacuum pumps
40 hp Liquid Ring, 10 hp Dry Claw, 25 Dry Claw, 10 hp Rotary Vane, stacked system
